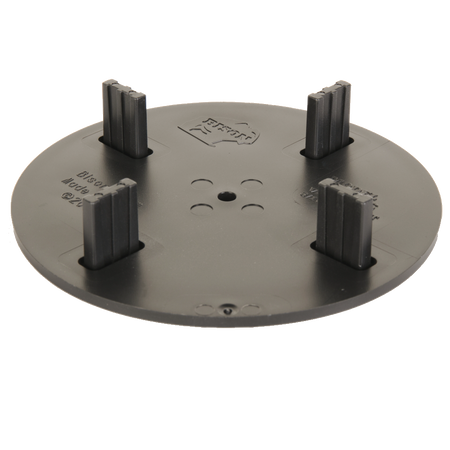

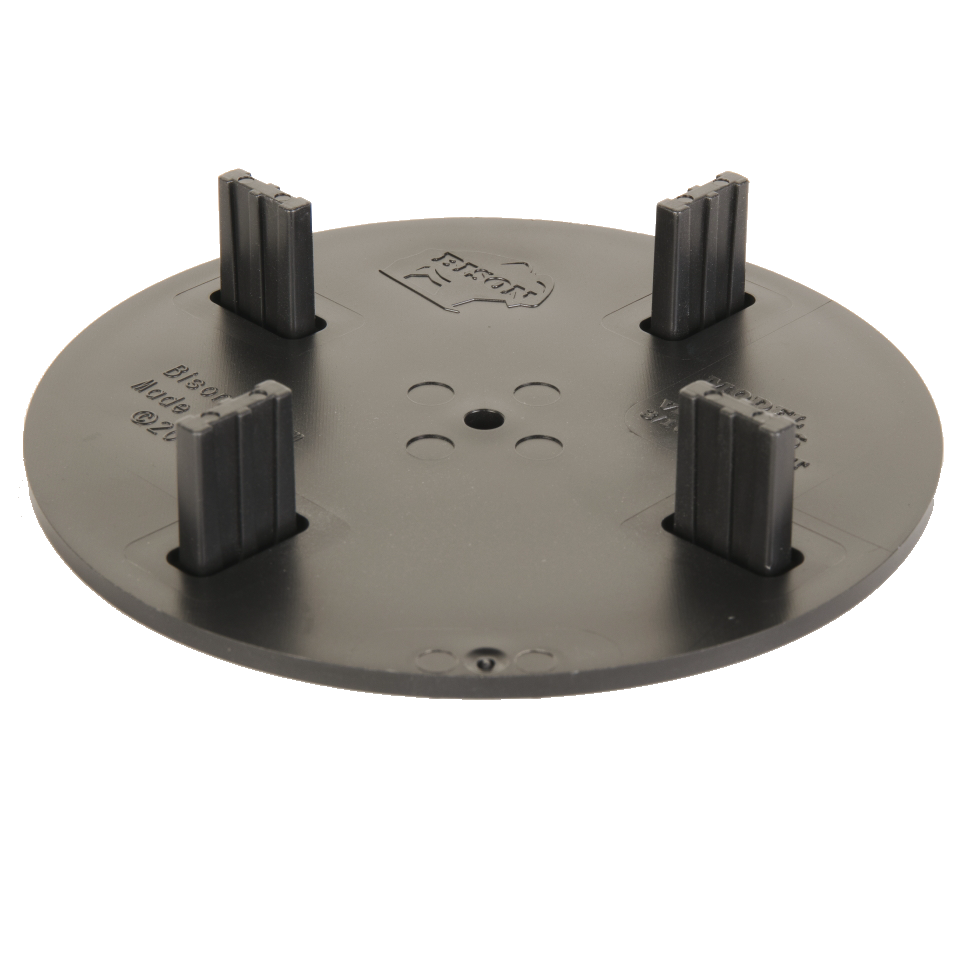

Bison Ultra Low Height Pedestal | VT18 or VT316
The Bison Ultra Low Height Pedestals, models VT18 and VT316, are designed for applications requiring minimal cavity heights.
Both models have a height of 1/8" (3.2 mm) and a base diameter of 4-3/4" (121 mm). They can support up to 1,250 lbs (567 kg) per pedestal, with a factor of safety of 3. The VT18 model features 1/8" (3.2 mm) spacer tabs, while the VT316 comes with 3/16" (4.5 mm) tabs. Bison recommends using the 3/16" tabs when installing Bison Wood Tiles.
Bison Ultra Low Height Pedestals are for minimal cavity heights.
Model: VT18
Ultra Low Height Pedestal with 1/8″ (3.2 mm) Tabs - tab thickness
Model: VT316
Ultra Low Height Pedestal with 3/16″ (4.5 mm) Tabs - tab thickness
Note: Bison recommends 3/16″ tabs when using Bison Wood Tiles.
Bison Versadjust Fire Rated Pedestals are available, contact Customer service.
Product Information
| Height |
1/8" (3.2 mm) |
|---|---|
| Base Diameter |
4-3/4" (121 mm) |
| Weight |
0.098 lbs (0.044 kg) |
| Weight Bearing Capacity |
Maximum 1250 lbs (567 kg) FoS:3 per Pedestal |
