Bison Versadjust 1/8″ Tab for Hexagonal Pavers | VT18-Hex

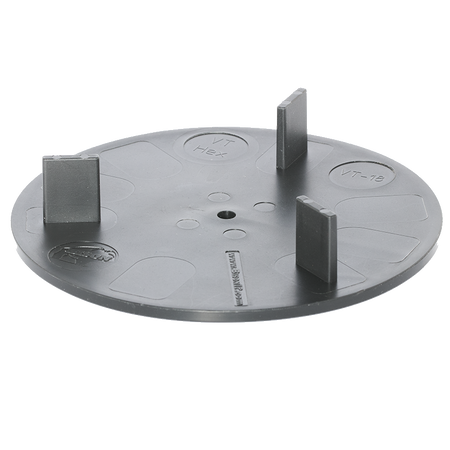

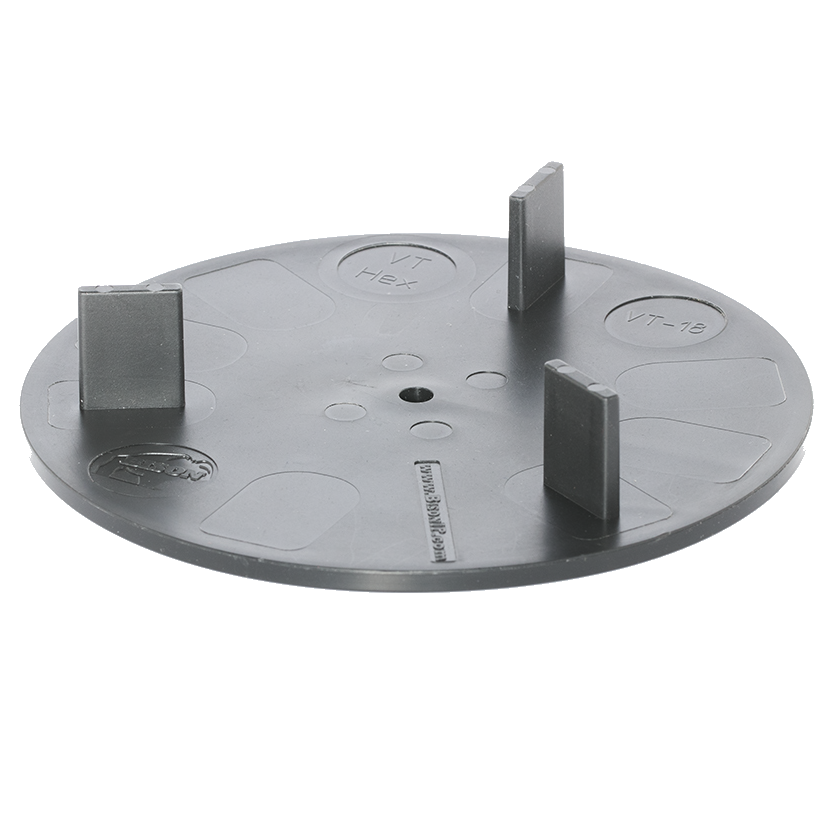

The Versadjust 1/8″ Tab for Hexagonal Pavers (VT18-Hex) is designed to facilitate the installation of hexagonal pavers in conjunction with Bison's Versadjust Pedestals.
This accessory features three 1/8″ (3.2 mm) spacer tabs, ensuring consistent spacing and proper alignment of pavers. It is compatible with hexagonal pavers measuring between 13-3/4″ to 25-1/2″ (flat to flat) or 15-7/8″ to 29-7/16″ (point to point).
For larger pavers, additional center support pedestals are recommended.
Alternatively, the tab set can be used independently (on-grade) with hexagonal pavers measuring at least 8-1/16″ (flat to flat) or 9-1/4″ (point to point).
Key Features:
- Spacer Tabs: Three 1/8″ (3.2 mm) tabs for uniform paver spacing.
- Compatibility: Suitable for hexagonal pavers within specified dimensions.
- Versatility: Can be used with Versadjust Pedestals or independently on-grade.
- Durability: Supports up to 1,250 lbs (567 kg) per pedestal.
This product ensures precise alignment and spacing for hexagonal paver installations, contributing to a professional and durable finish.
Model: VT18-Hex
Versadjust 1/8″ (3.2 mm) with 3 Tabs for Hexagonal Pavers
Note: For use with Versadjust Pedestals and Hexagonal Pavers which measure at least 13-3/4″ (Flat to Flat) or 15-7/8″ (Point to Point) to a maximum dimension of 25-1/2″ (Flat to Flat) or 29-7/16″ (Point to Point). Larger Hexagonal Pavers will need an additional center support pedestal. Alternatively, the tab set can be used independently (on-grade) with Hexagonal Pavers which measure at least 8-1/16″ (Flat to Flat) or 9-1/4″ (Point to Point).
Product Information
Height |
1/8" (3.2 mm) |
---|---|
Base Diameter |
4-3/4" (121 mm) |
Weight |
0.098 lbs (0.044 kg) |
Weight Bearing Capacity |
Supports 1250 lbs (567 kg) FoS:3 per Pedestal |
