Fortress Evolution 2"x6" Rim Joists

Fortress Evolution 2"x 6" Rim Joists incorporate the same pre-punched and non-punched system as the S-Ledger for consistent, quicker installation without the hassle.

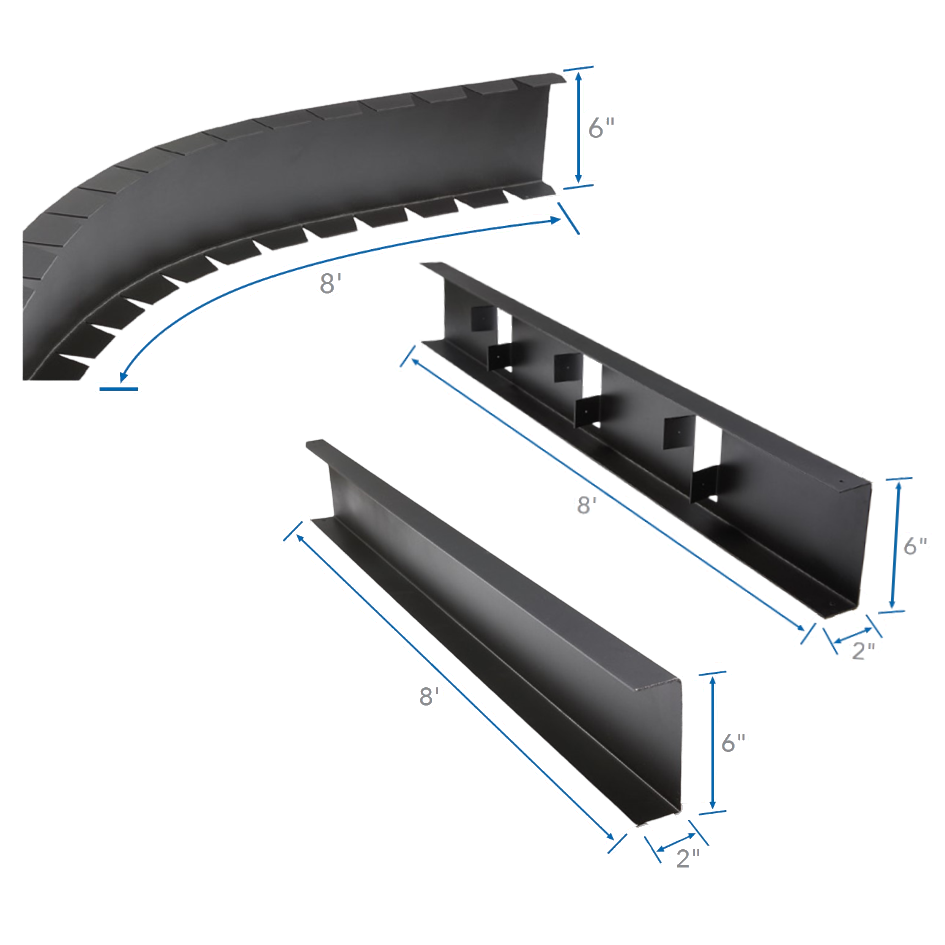

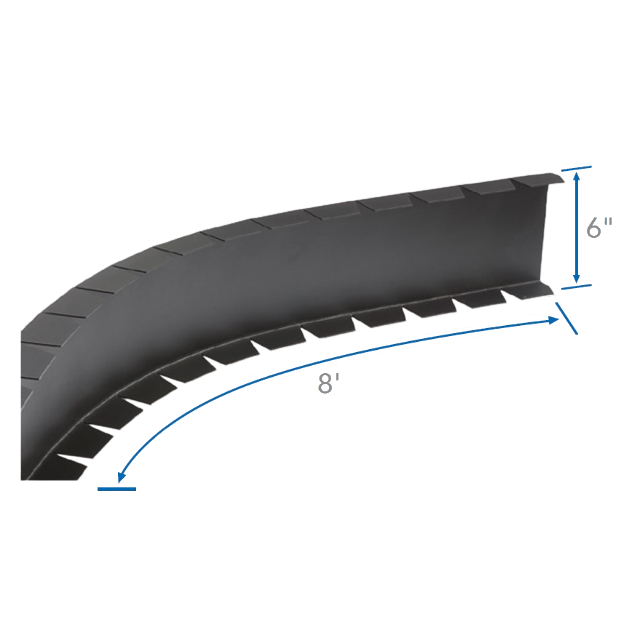

Fortress Evolution 2"x 6" Rim Joists provide a solution for any installation application, including an option for curved decks. The Rim Joist attaches to the joist with minimal fasteners and provides a perfectly flat surface to attach trim or fascia.

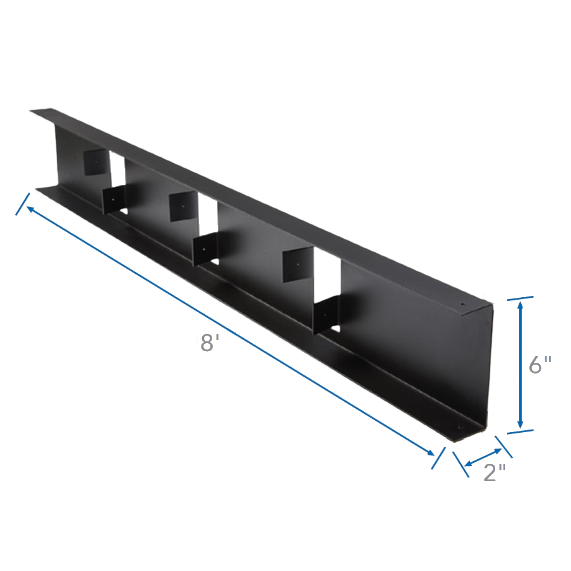

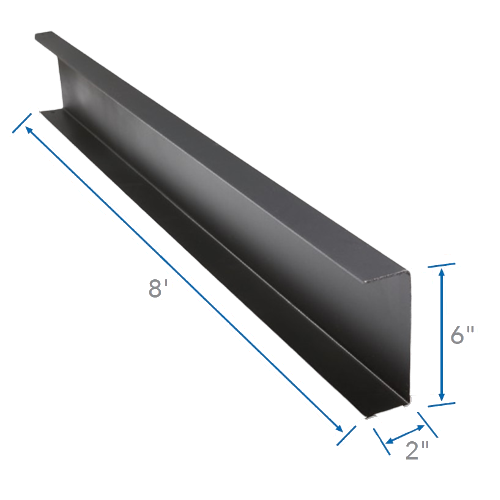

Pre-punched Rim joist is should be used with Fascia only and Blank Rim joist can be installed with or without fascia.

All joists contain weep holes to allow for water drainage. When installing, it’s important that the weep holes are pointed down. Not pointing the weep holes down may cause water to collect and ultimately cause damage to the joists.

1. S-Ledger (pre-spaced 12" & 16" O.C.)
2. Ledger Bracket
3. Joist (2"x6")
4. F50 Bracket
5. Strap (mid-span blocking)
6. Beam (2"x11")
7. Beam Cap
8. Post to Beam Bracket
9. Post (3½"x3½"x10')
10. Blocking (12" & 16" O.C.)
11. Post to Pier Bracket
12. Single Hanger Brackets
13. Rim Joist (pre-spaced 12" & 16" O.C.)
