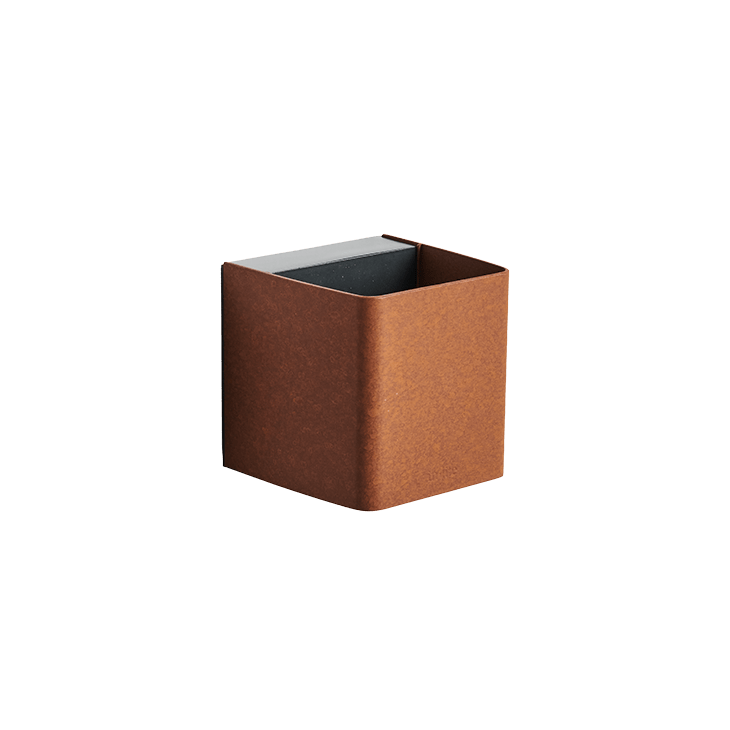

in-lite Ace up-down 100-230V-Corten (in-lite)
in-lite Ace up-down 100-230V-Dark (in-lite)
in-lite Ace up-down 100-230V-Flat Gray (in-lite)

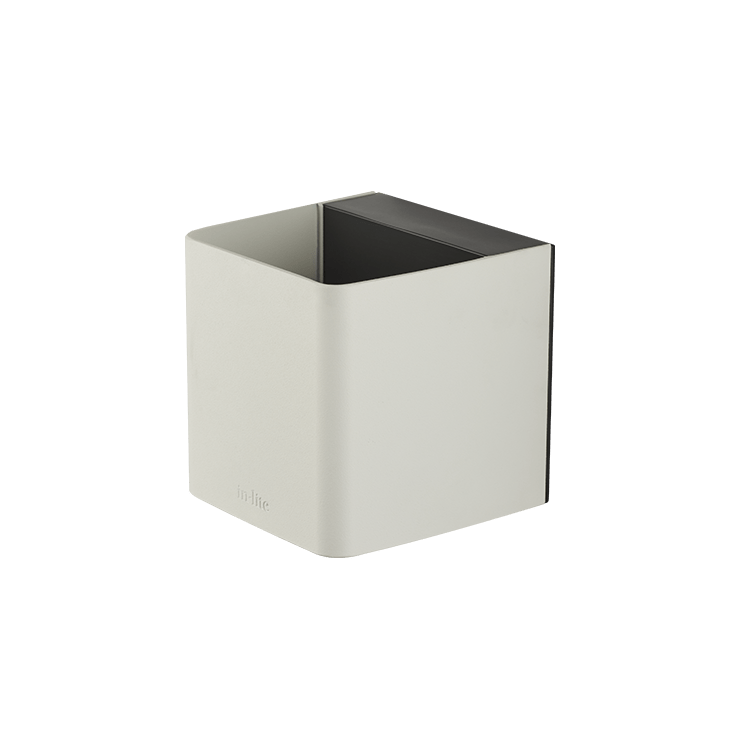

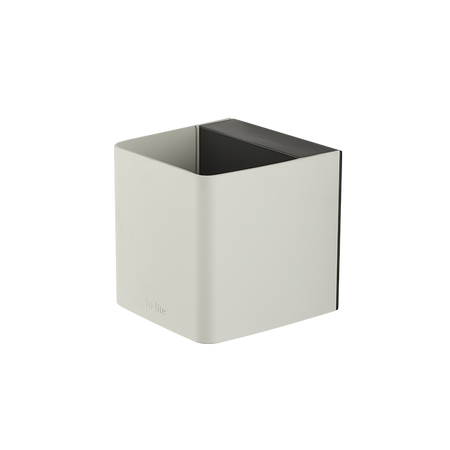

in-lite Ace up-down 100-230V-White (in-lite)
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V

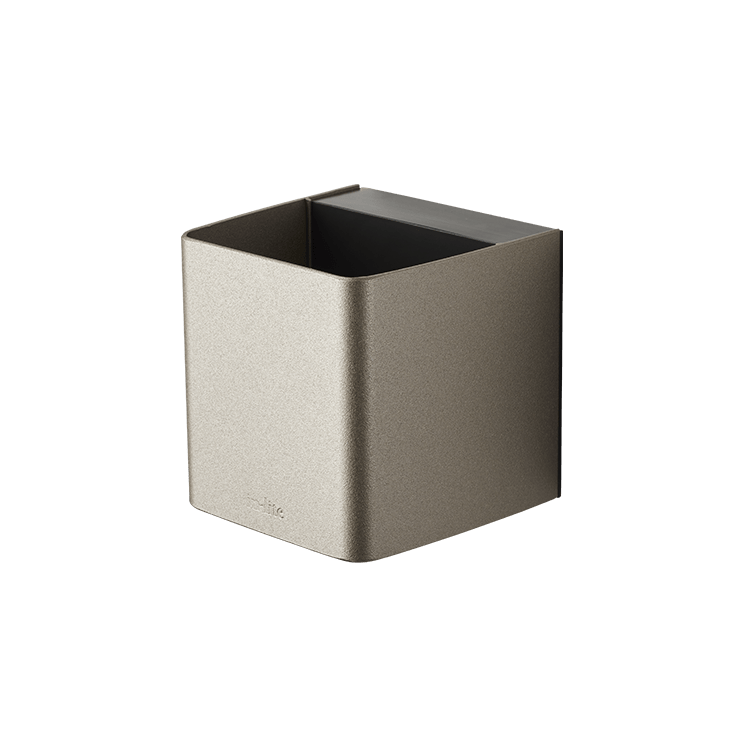

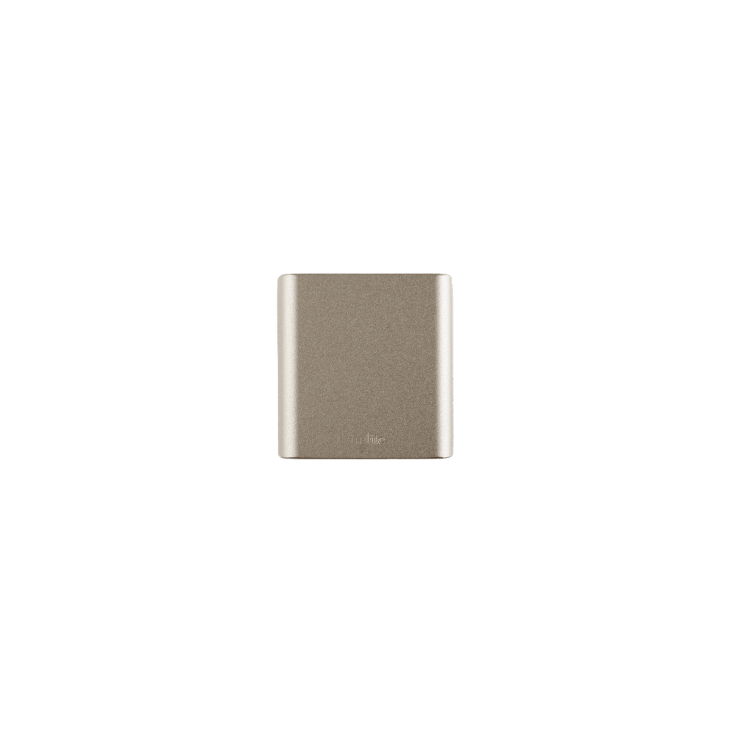

in-lite Ace up-down 100-230V-Silver (in-lite)

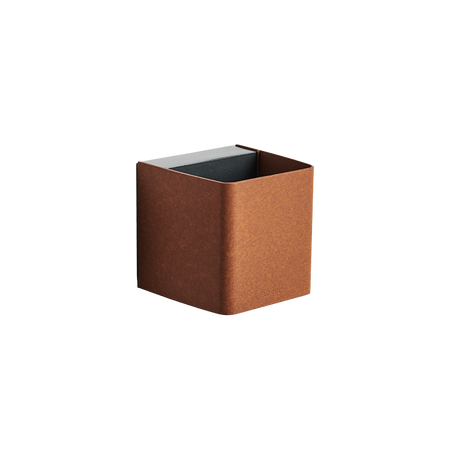

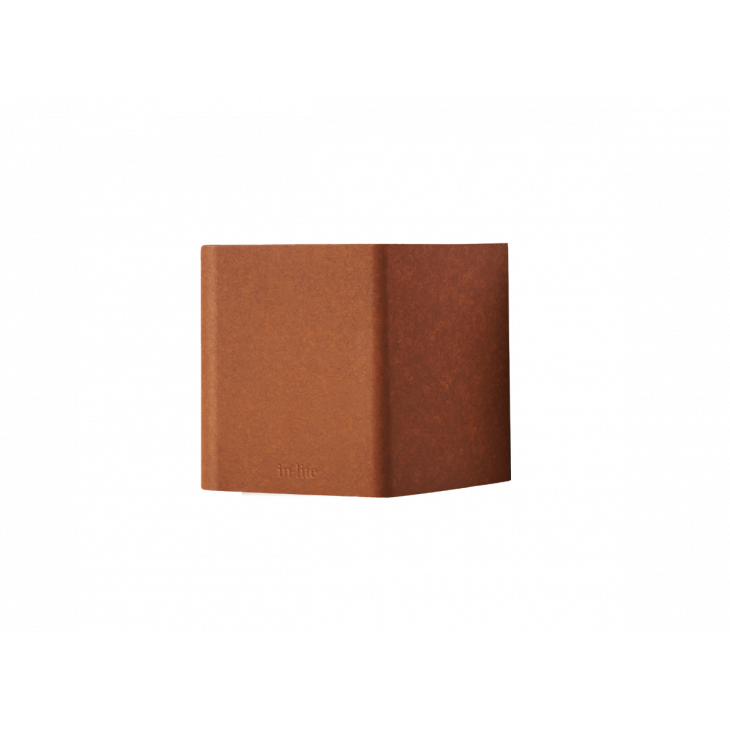

in-lite Ace up-down 100-230V-Corten (in-lite)

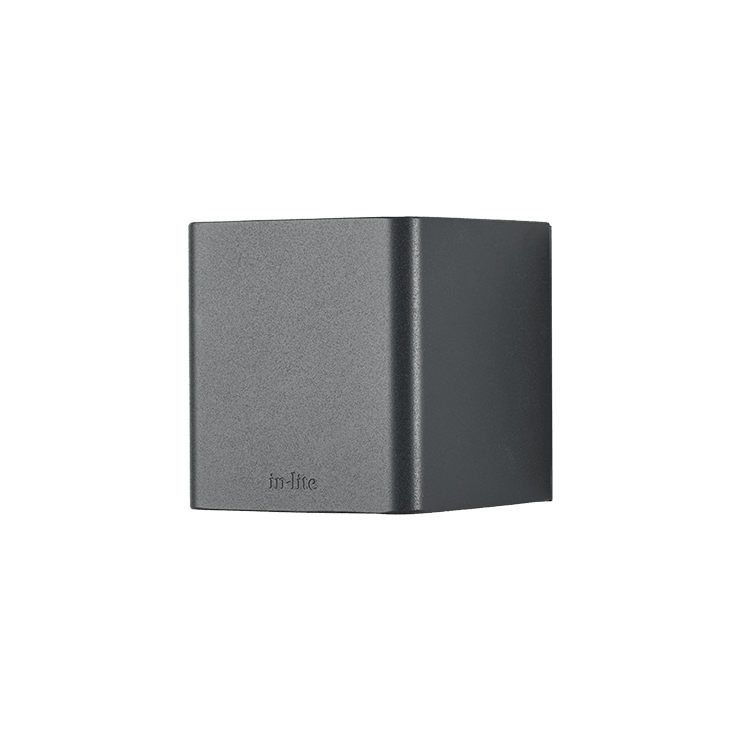

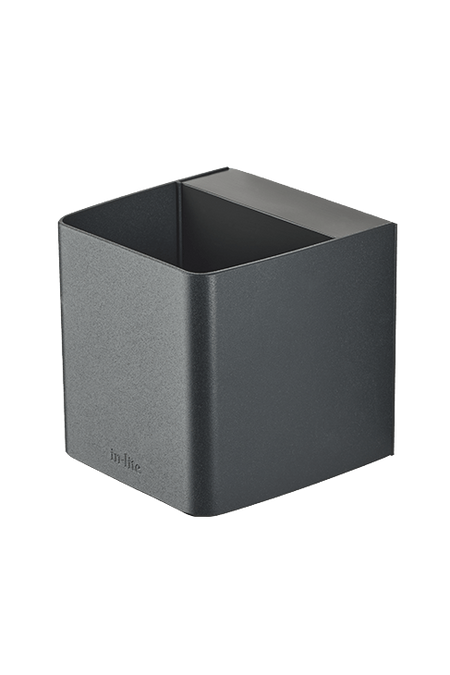

in-lite Ace up-down 100-230V-Dark (in-lite)

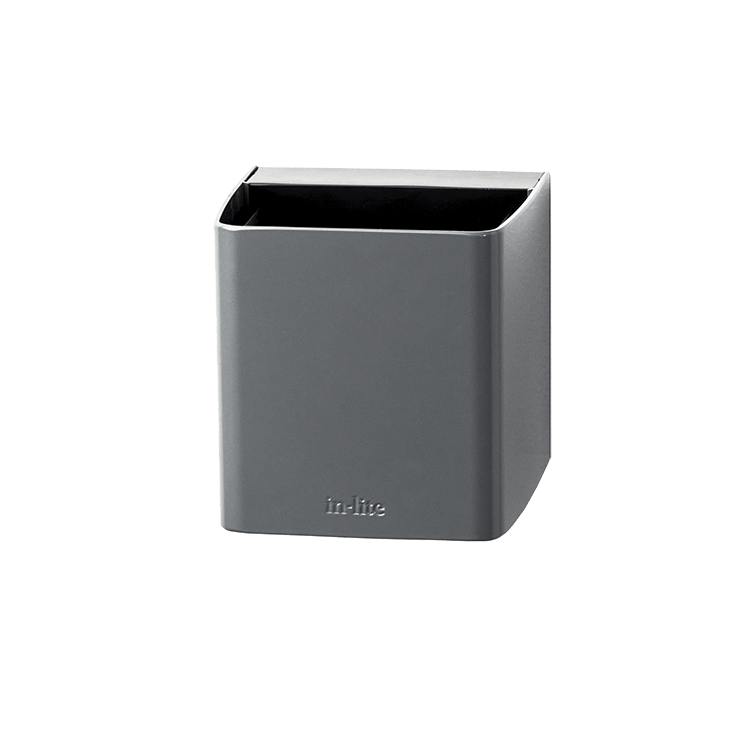

in-lite Ace up-down 100-230V-Flat Gray (in-lite)
in-lite Ace up-down 100-230V-White (in-lite)
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V
in-lite Ace up-down 100-230V

in-lite Ace up-down 100-230V

Pre-Order
SKU: 10302061 Barcode: 8717051006050
$263.11 CAD
Color
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.


ACE UP-DOWN 100-230V

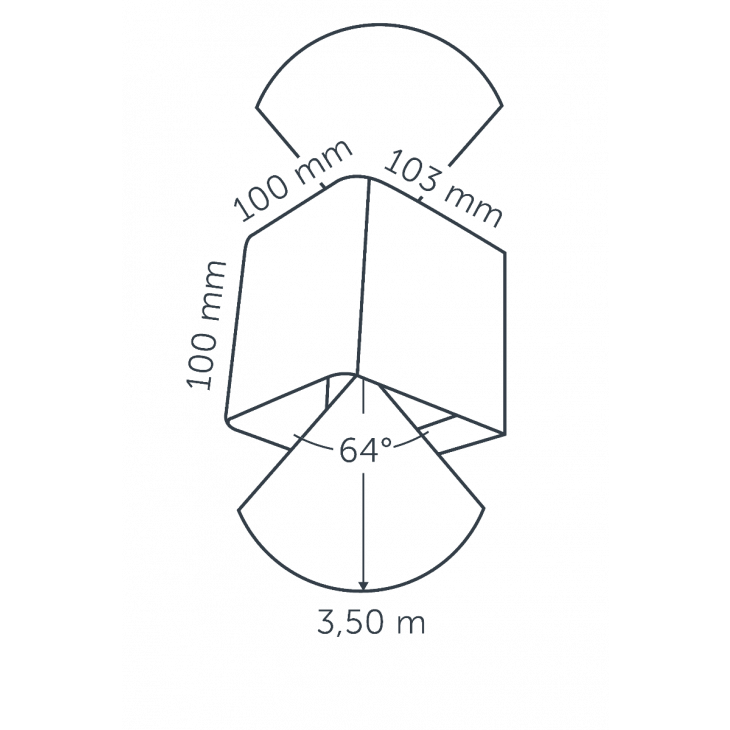

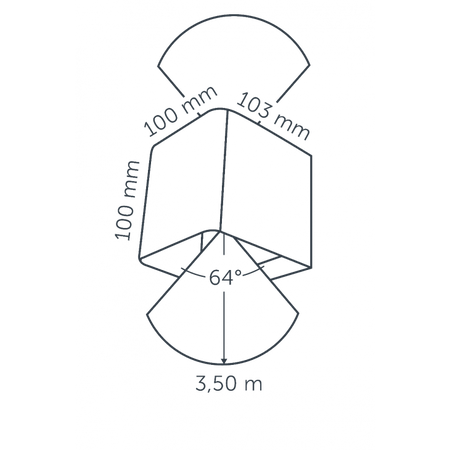

Wall light - ↨ 100mm/3,94"

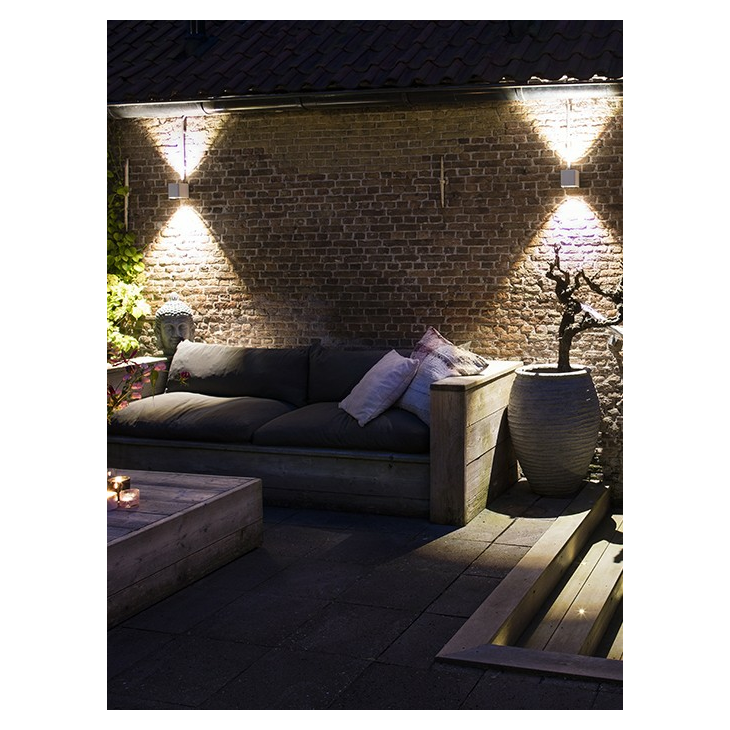

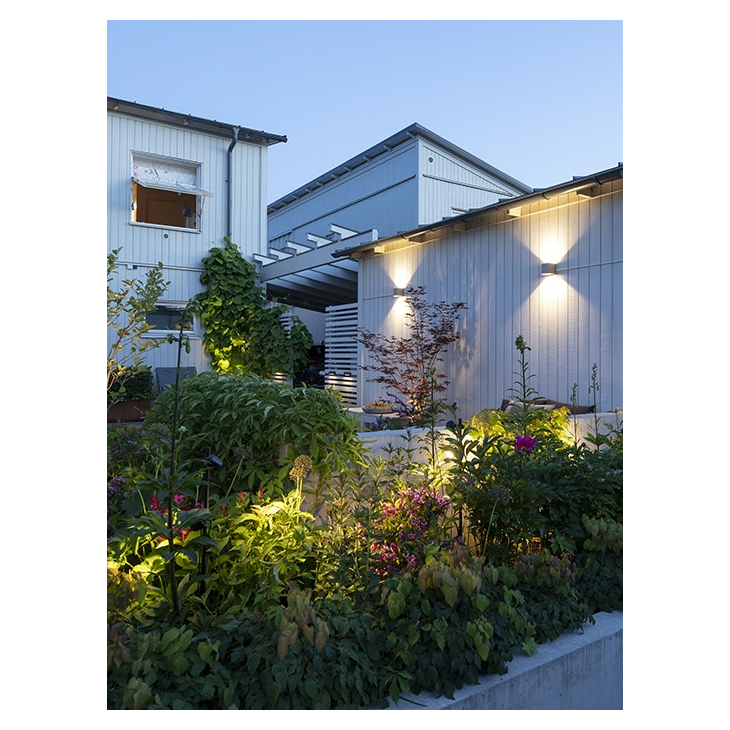

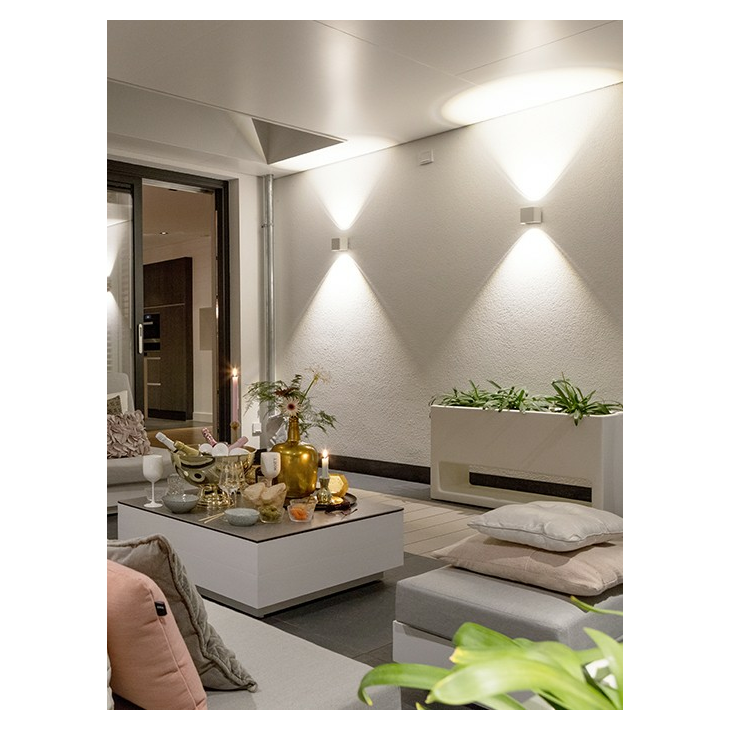

Wall fixture ACE UP-DOWN 100-230V provides a directed beam of light upward and downward. It is suitable for mounting on a wall or fence.
A high-quality FCBV coating in a variety of colors. Combines well with other fixtures in the same color.

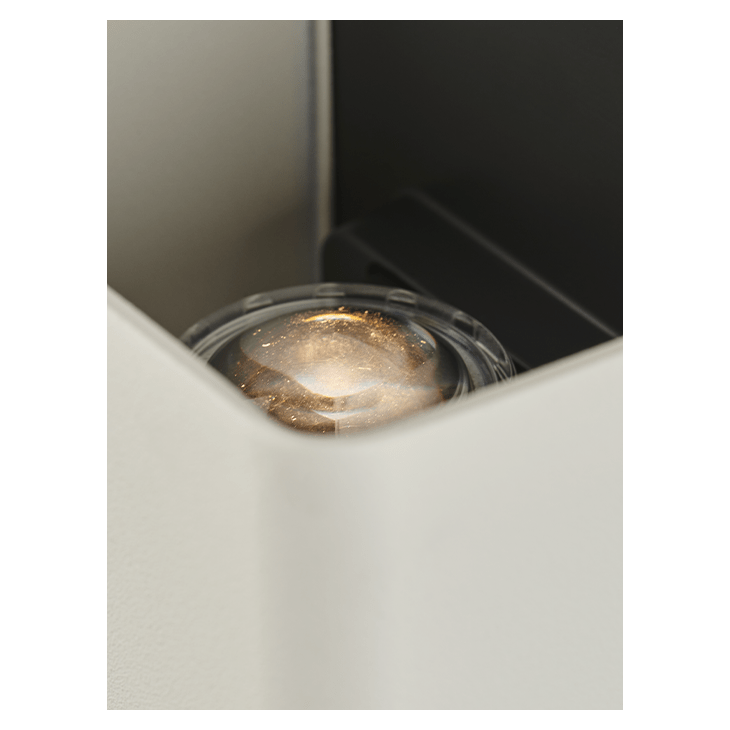

  • Produces a focused upward and downward light
  • Designed for illuminating a fence or wall
  • Connects directly to 120 volt
Installation advice:

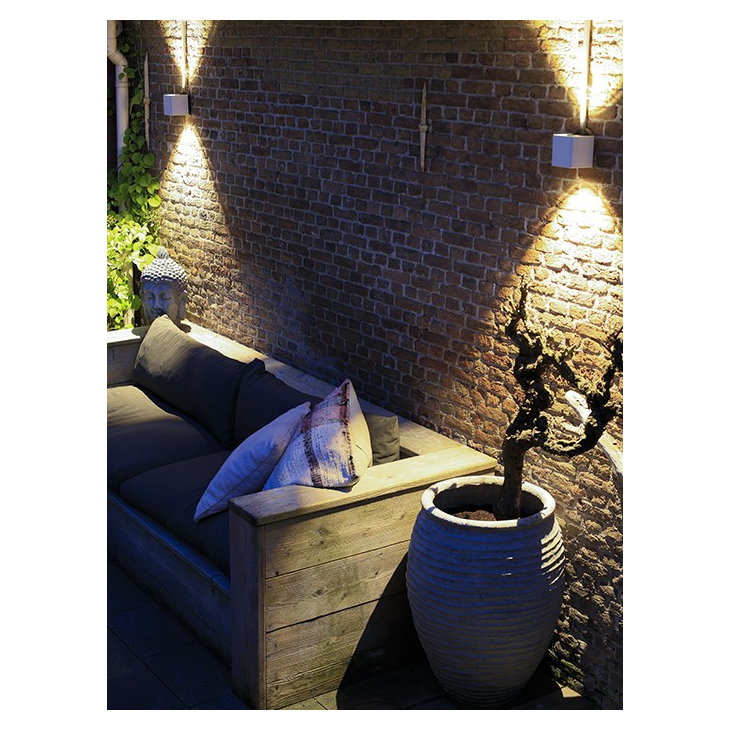

An ACE UP DOWN 100-230 V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

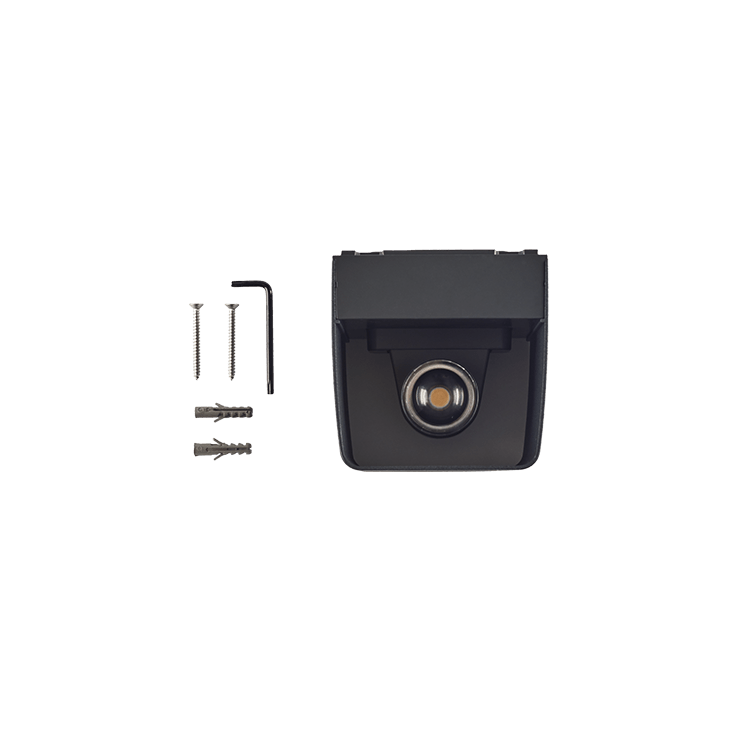

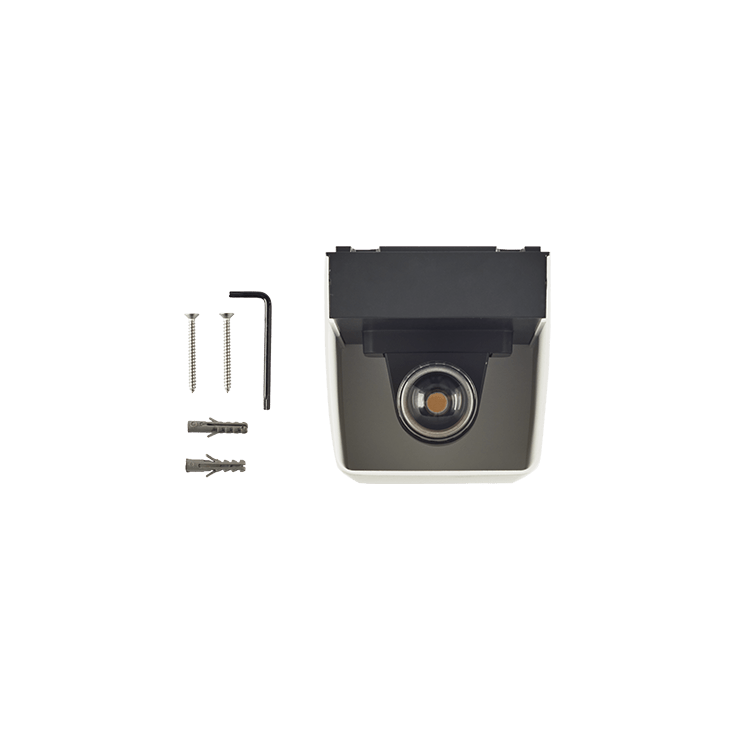

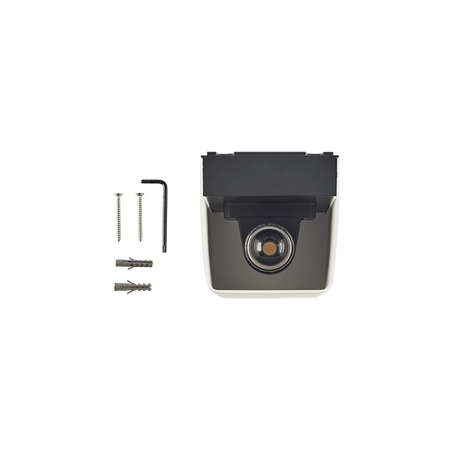

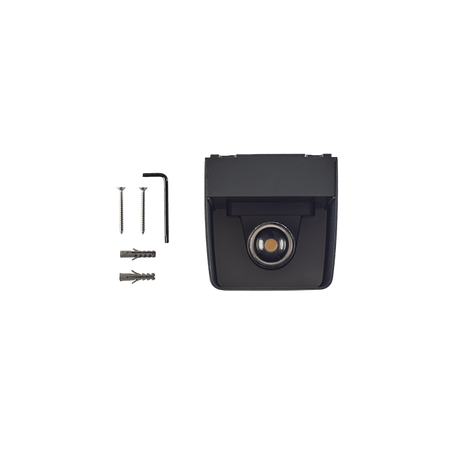

IN THE PACKAGE
INCLUDED IN PACKAGE

  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench
The ACE UP-DOWN 100-230V wall light may only be connected to line voltage. The fixture is, therefore suitable for mounting on a house, garage or shed. The fixture provides a focused beam of light both upwards and downwards. The width of the light bundles provided by the ACE UP-DOWN can be adjusted using the separately available SHUTTER 2.

Article Number: 10302050
Application: Façade, Home, Overhang, Fence/Wall
Mounting Depth: 0 inches (0 mm)
Recessed Depth: 0 inches (0 mm)
CRI: 92
EAN Code: 8717051003585

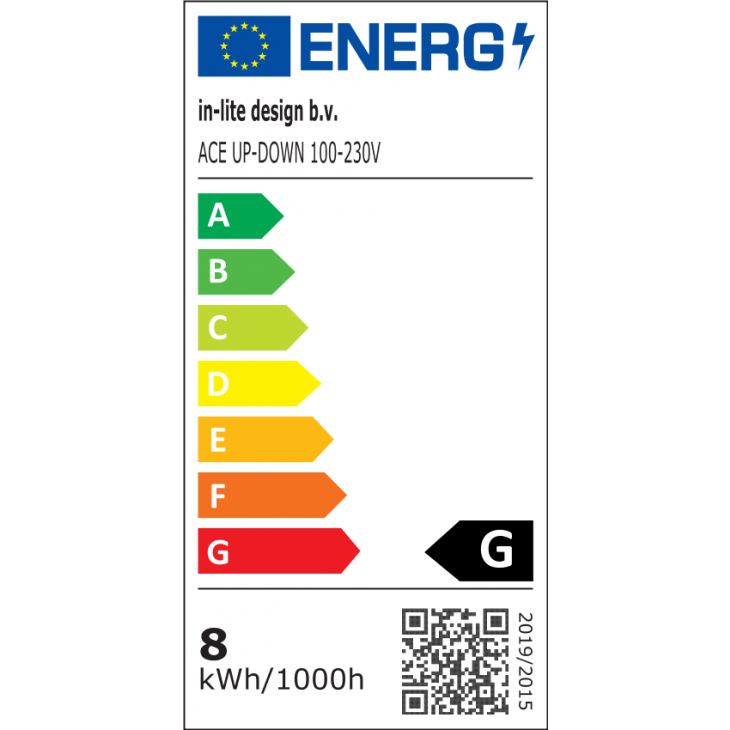

Energy Label: G
Height: 3.937 inches (100 mm)
IP Class: 55
Length: 4.0551 inches (103 mm)
Light Direction: Upward and Downward
Light Type: Direct
Efficiency: 41 Lumen/Watt
Net Luminous Flux: 346 Lumens
Power: 8.5 W
Article Group: Wall
Voltage: 120 V
VA Value: 20
Width: 3.937 inches (100 mm)
Color Temperature: 3000 K
Luminous Intensity: 206.5 Cd
Power Factor: 0.43

Installation Advice
ACE UP-DOWN 100-230V can only be connected to the regular power grid and cannot be controlled via an in-lite HUB or SMART HUB transformer. Please consult an electrician or professional for installation.
