in-lite Big Nero Narrow
in-lite Big Nero Narrow-Black
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow-Black
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow
in-lite Big Nero Narrow

in-lite Big Nero Narrow

In stock
7
SKU: 10103460 Barcode: 8717051004582
$289.29 CAD
Color
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.

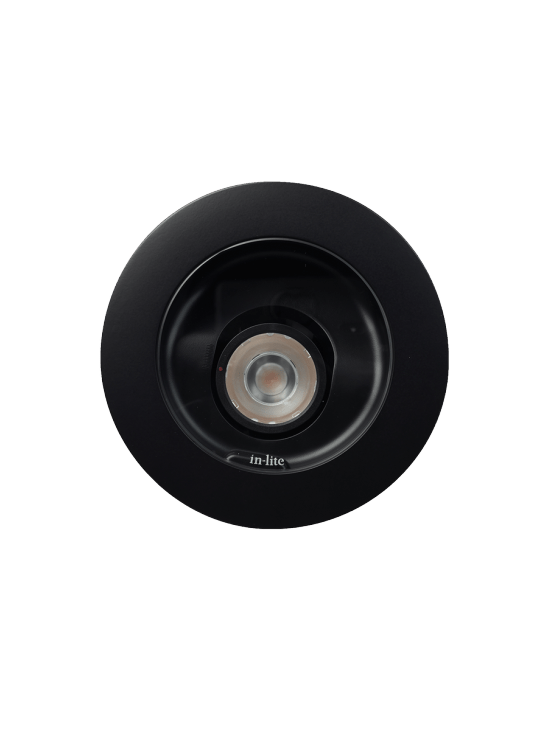

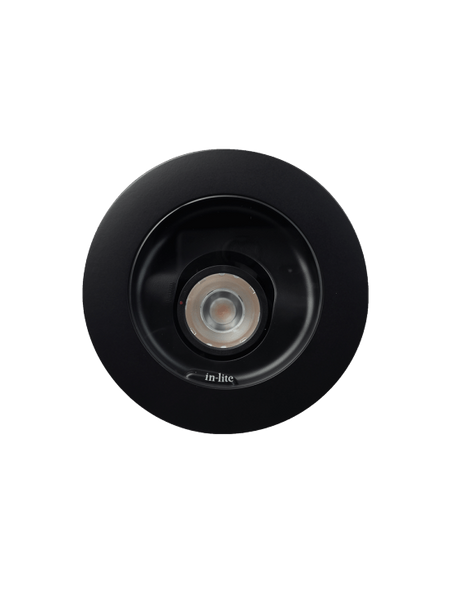

BIG NERO NARROW

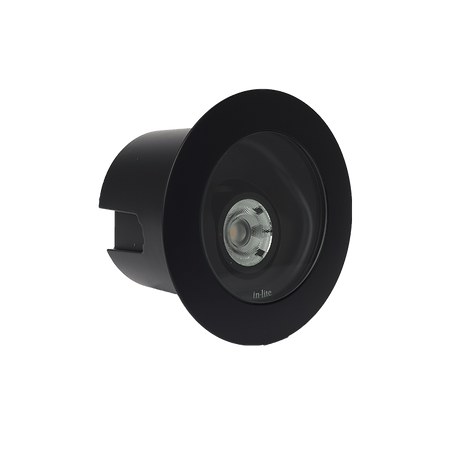

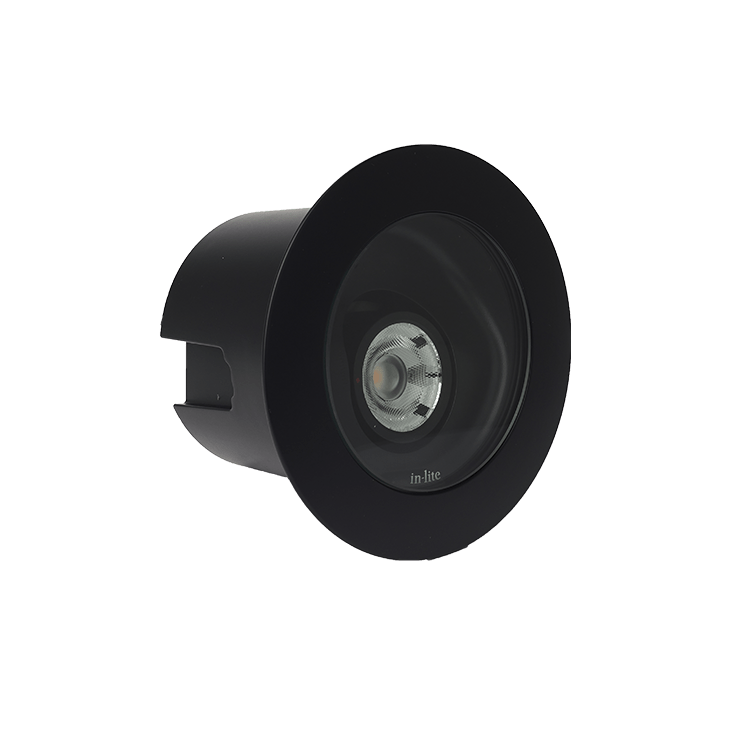

Recessed light - Ø 142mm / 5.59"
BIG NERO NARROW ground spot is perfect for illuminating tall, narrow trees from gravel and grass. Thanks to its flat-ring design, this fixture now also works well in stone and wood.

The EASY-LOCK is included as standard with this fixture. The cable length to this fixture is 60cm.

Tip: Think of an extension cable
  • Produces a strong and narrow, focused light
  • Designed for illuminating tall elements up to 14 meters
  • Fitted with in-lite motion
Installation advice:

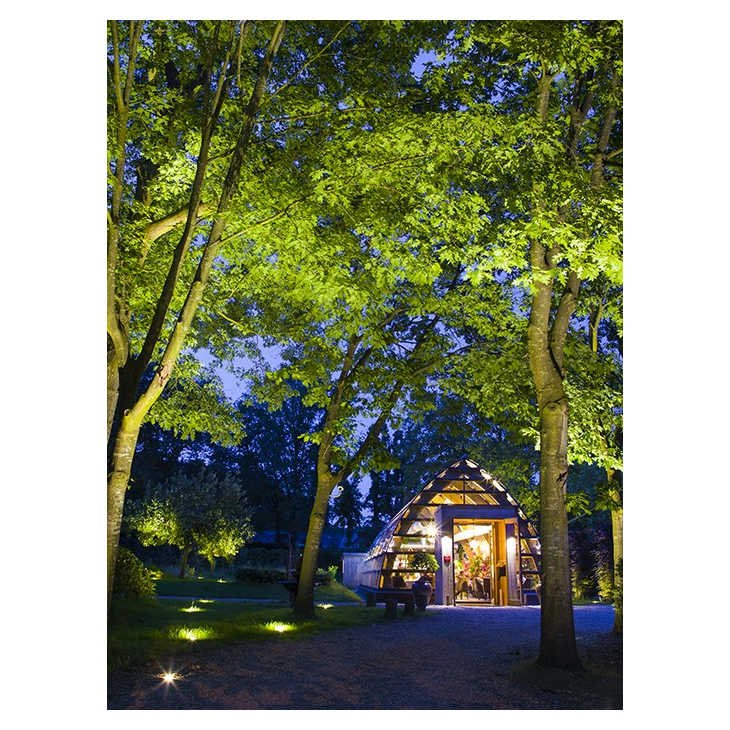

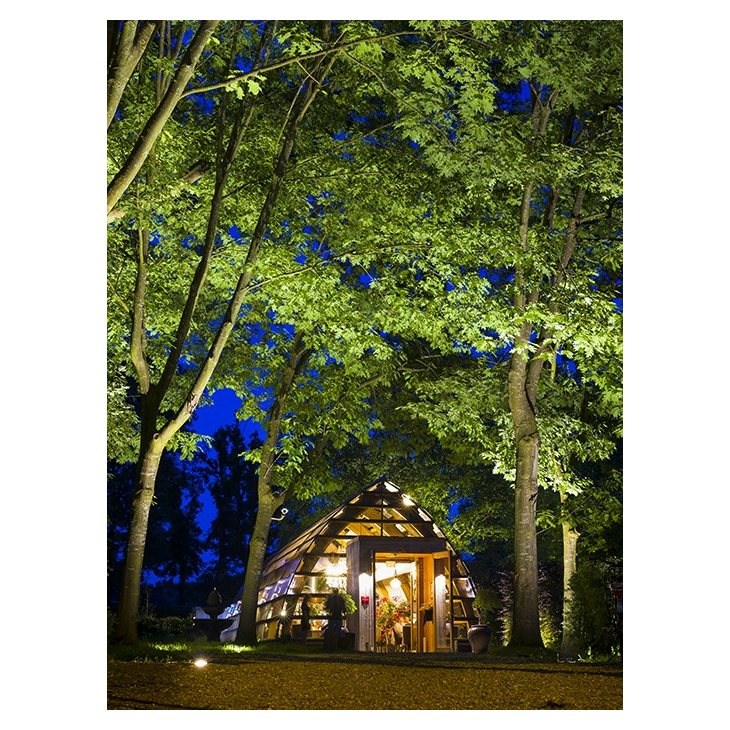

2 BIG NERO NARROW several meters away from the trunk, aimed at the top

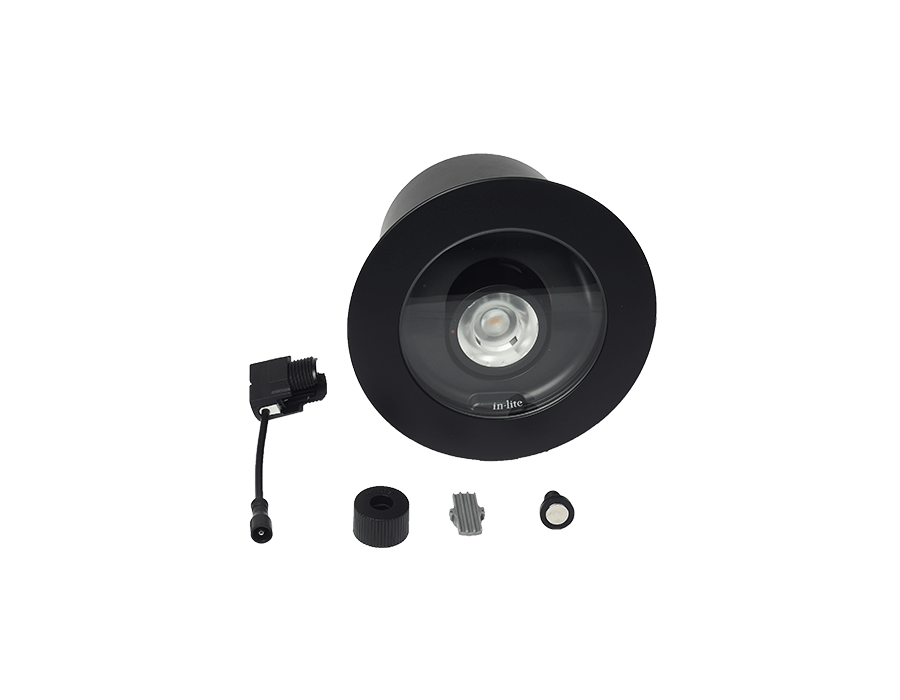

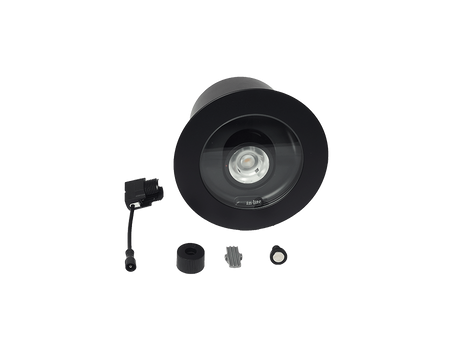

IN THE PACKAGE
INCLUDED IN PACKAGE

-1x EASY LOCK
-60 cm Fixture cable
-in-lite Motion

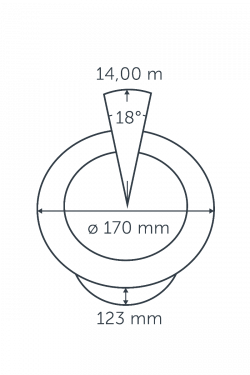

With its single chip LED and World Leading LEDiL® lens, BIG NERO NARROW produces a light range of at least 14 meters with a light angle of 18 degrees. BIG NERO NARROW is equipped with in-lite Motion technology. Through this technology you can easily adjust the light source without opening the fixture. Simply hold the included magnet on the in-lite logo and the light source will automatically tilt.





Installation Advice
The BIG NERO NARROW can be buried or integrated into various types of concrete products, natural stone and wood. This requires drilling a 142 mm hole. For anyone who will incorporate the new BIG NERO (NARROW) in a lighting plan, the following applies: always use the 10/2 cable, use the maximum cable length of 40 meters and do not exceed the maximum number of luminaires. (HUB-50 up to four BIG NERO (NARROW) fixtures and HUB-100 up to seven and SMART HUB-150 up to eleven, up to seven in a line.) If the new BIG NERO or BIG NERO NARROW is included in a lighting plan, the following guidelines must be followed: Always use the 10/2 cable, do not exceed the maximum cable length of 40 meters or the number of fixtures (HUB-50 for up to four BIG NERO or BIG NERO NARROW fixtures and up to seven with the HUB-100).

Technical Specifications
  • Article Number: 10103460
  • Application: Facade, Hedge, House, Tree
  • Mounting Depth: 5.12 inches (130 mm)
  • Recessed Depth: 130 mm
  • Color Rendering Index (CRI): 91
  • Diameter: 6.69 inches (170 mm)
  • EAN Code: 8717051004582

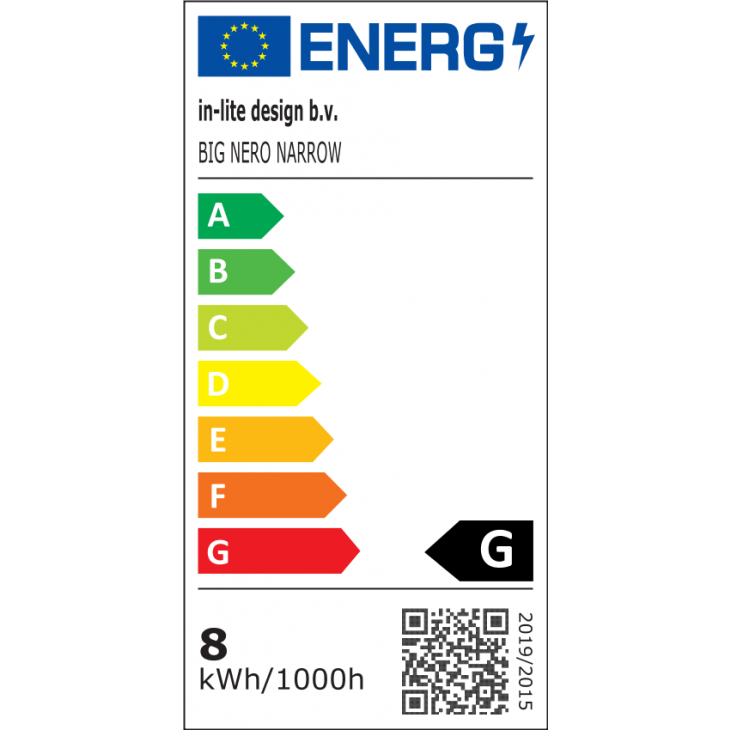

  • Energy Label: G
  • Height: 4.84 inches (123 mm)
  • IP Rating: IP67 (Water & Dust Resistant)
  • Light Direction: Upward Adjustment
  • Light Type: Accent Lighting
  • Efficiency: 63 Lumens per Watt
  • Luminous Flux: 476 Lumens
  • Minimum Order Quantity: 6 Units
  • Power Consumption: 7.5W
  • Suitable Surfaces: Concrete, Grass, Gravel, Natural Stone, Soil, Wood
  • Product Category: Integrated Lighting
  • Voltage: 12V
  • VA Value: 11.9
  • Color Temperature: 3100K
  • Luminous Intensity: 3036.7 Cd
  • Power Factor: 0.63
