in-lite Evo Flex Corner Outside
Regular price
$6.30 CAD
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.
EVO FLEX accessory

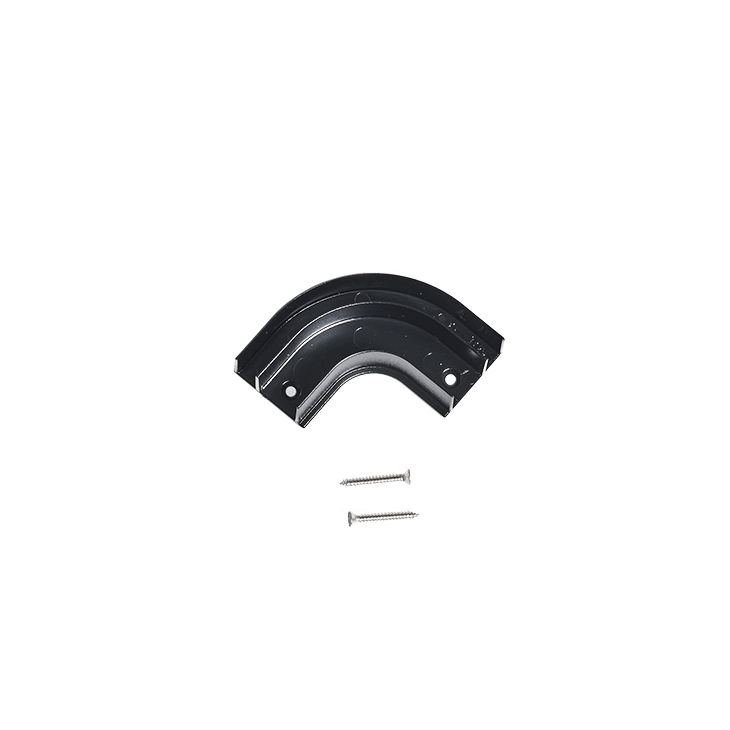

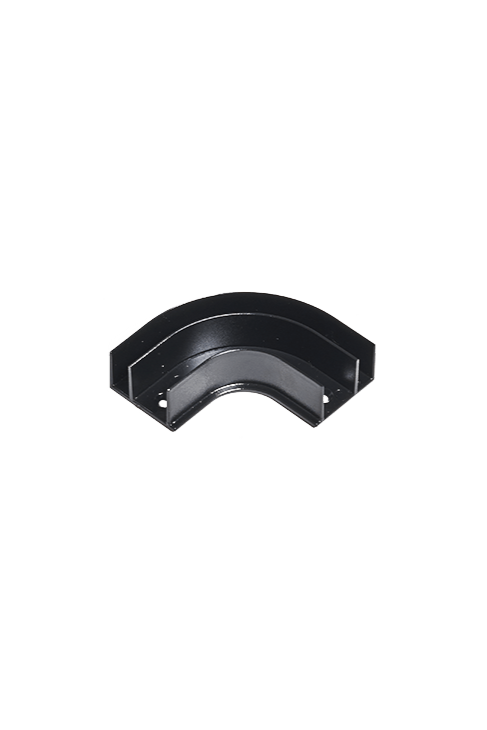

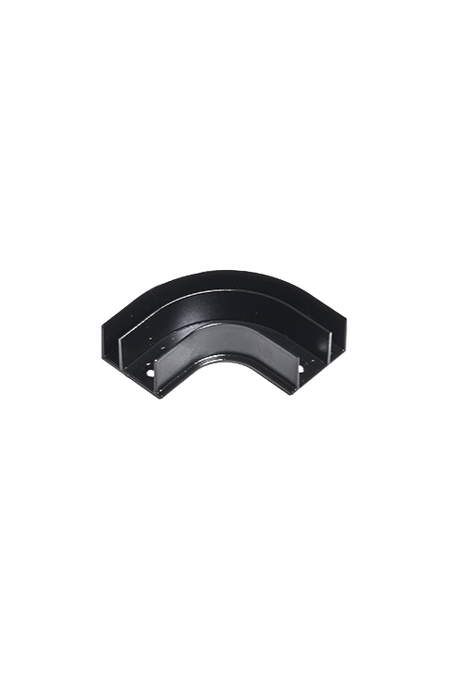

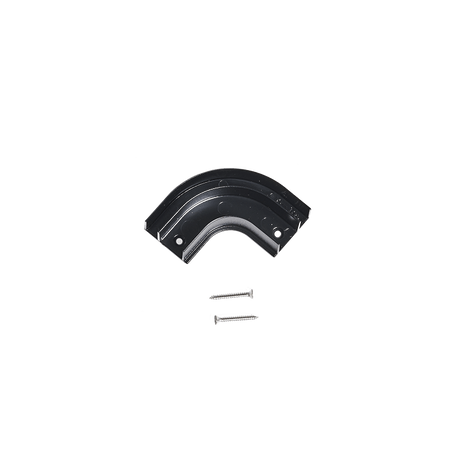

EVO FLEX CORNER OUTSIDE
EVO FLEX CORNER is a special fastening profile for creating a 90-degree angle bend with EVO FLEX (1, 2, 3 and 5).
Strong plastic curve bracket for the EVO FLEX (1, 2, 2)
For mounting EVO FLEX in a 90-degree bend
Fitted with notches for the EVO FLEX (1, 2, 3) and in-lite 10/2 ground cable
Product Details
EVO FLEX CORNER is a special mounting profile for EVO FLEX (1, 2, 3 and 5) for mounting the fixture in a 90-degree right-angle bend. With EVO FLEX CORNER OUTSIDE, there is a recess for the light source on the inside and a recess for the ground cable on the outside. With EVO FLEX CORNER INSIDE, this is exactly the other way around.
Specifications
Article Number (Art. nr.): 10250360
Application: Trap
EAN Code: 8717051005398
Light Direction: Downward
| Dimension | Inches | Millimeters |
|---|---|---|
| Height | 0.5906" | 15 mm |
| Length | 2.0866" | 53 mm |
| Width | 2.0866" | 53 mm |
Processing: Concrete, Natural Stone, Wood
Installation Advice
When installing the EVO FLEX CORNER, it is advisable to use a fixative. The profile can be secured (if possible) with screws until the fixative has hardened.
The predrilled screw holes should initially be used to keep the profile in place until the fixative hardens.
The fixative must be suitable for outdoor use and UV and weather-resistant. The fixative must have high initial adhesion and be permanently elastic after hardening.
The predrilled screw holes should initially be used to keep the profile in place until the fixative hardens.
The fixative must be suitable for outdoor use and UV and weather-resistant. The fixative must have high initial adhesion and be permanently elastic after hardening.
5 Business days lead time to get product ready for shipping or pick-up
This is a SPECIAL ORDER item
