in-lite Evo Flex Profile Single
Regular price
$14.73 CAD
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.
EVO FLEX accessory
EVO FLEX PROFILE SINGLE
EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.

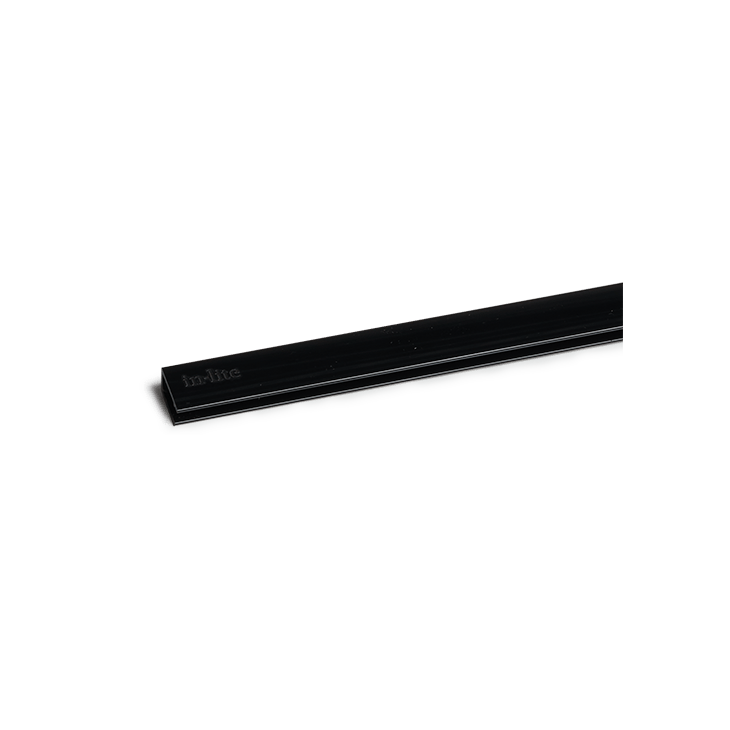

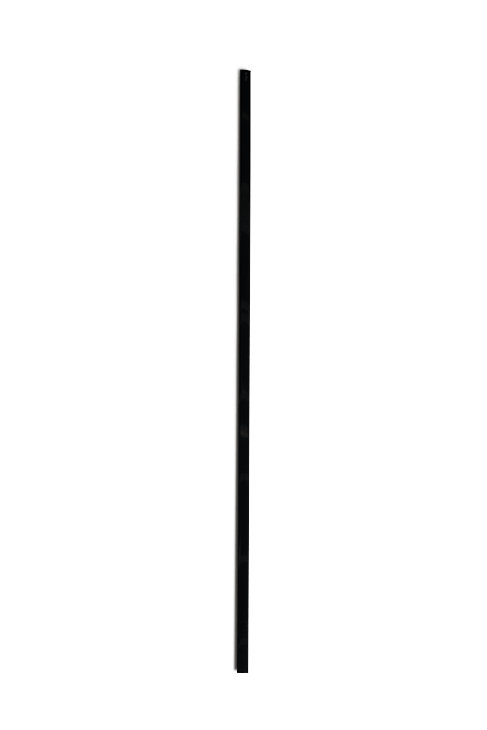

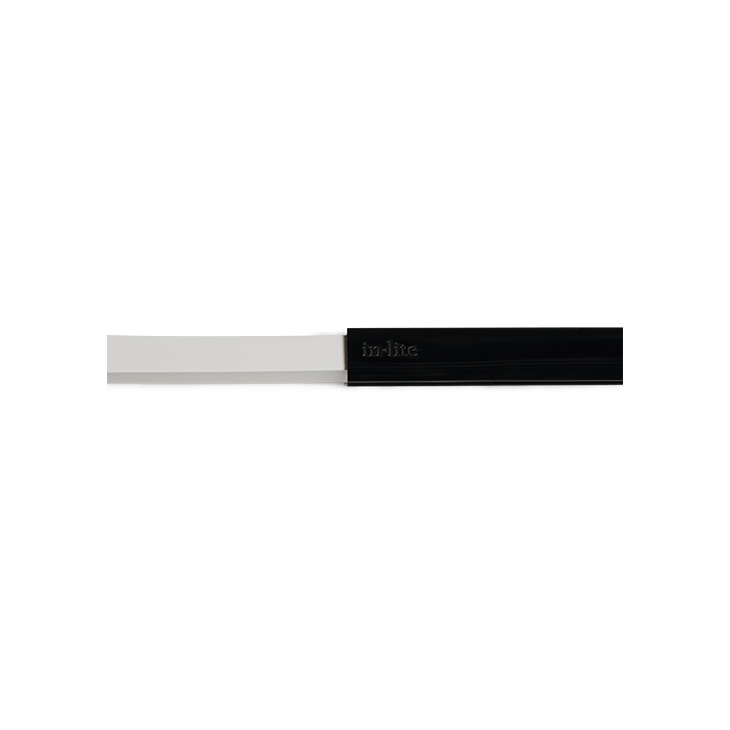

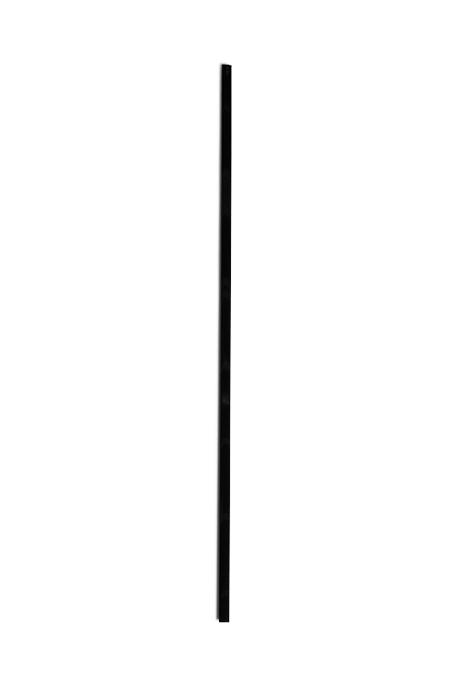

This is a straight profile, made of PC , with a length of 101 cm for mounting EVO FLEX. For easy installation under staircases, pond edges or roof overhangs. Combine with other EVO FLEX accessories for the perfect assembly.
This is a straight profile, made of PC , with a length of 101 cm for mounting EVO FLEX. For easy installation under staircases, pond edges or roof overhangs. Combine with other EVO FLEX accessories for the perfect assembly.
- Makes assembly of EVO FLEX easy
- Applicable for all (SMART) EVO FLEX fixtures
- Easy to combine with other EVO FLEX accessories
Installation advice:
Look carefully at which profile best suits the application
Product Details
EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.
Specifications
Article Number (Art. nr.): 10250352
Application: Trap
EAN Code: 8717051005787
Light Direction: Downward
| Dimension | Inches | Millimeters |
|---|---|---|
| Height | 0.7087" | 18 mm |
| Length | 39.7638" | 1010 mm |
| Width | 0.4331" | 11 mm |
Processing: Concrete, Natural Stone, Wood
Installation Advice
EVO FLEX PROFILE 1 and 2
When mounting EVO FLEX PROFILE 1, 2 and 3 it is recommended to use mounting sealant. The profile can then (if possible) be fixed with screws to allow the sealant to harden. Screw holes have been prepared for this purpose. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.
PROFILE 3
For mounting EVO FLEX PROFILE 1, 2 and 3, it is recommended to use mounting sealant. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.
PROFILE 4
The profile can be mounted using screws (not supplied). Screw holes have been prepared for this purpose.
When mounting EVO FLEX PROFILE 1, 2 and 3 it is recommended to use mounting sealant. The profile can then (if possible) be fixed with screws to allow the sealant to harden. Screw holes have been prepared for this purpose. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.
PROFILE 3
For mounting EVO FLEX PROFILE 1, 2 and 3, it is recommended to use mounting sealant. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.
PROFILE 4
The profile can be mounted using screws (not supplied). Screw holes have been prepared for this purpose.
10 Business days lead time to get product ready for shipping or pick-up
