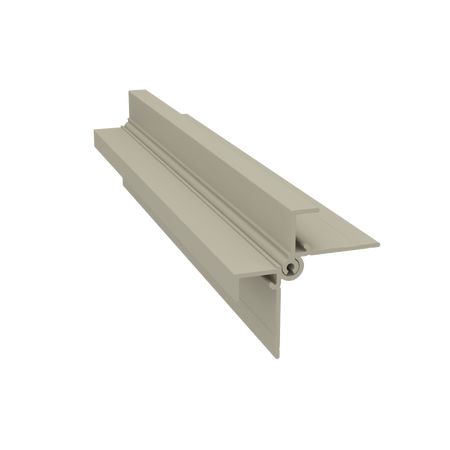

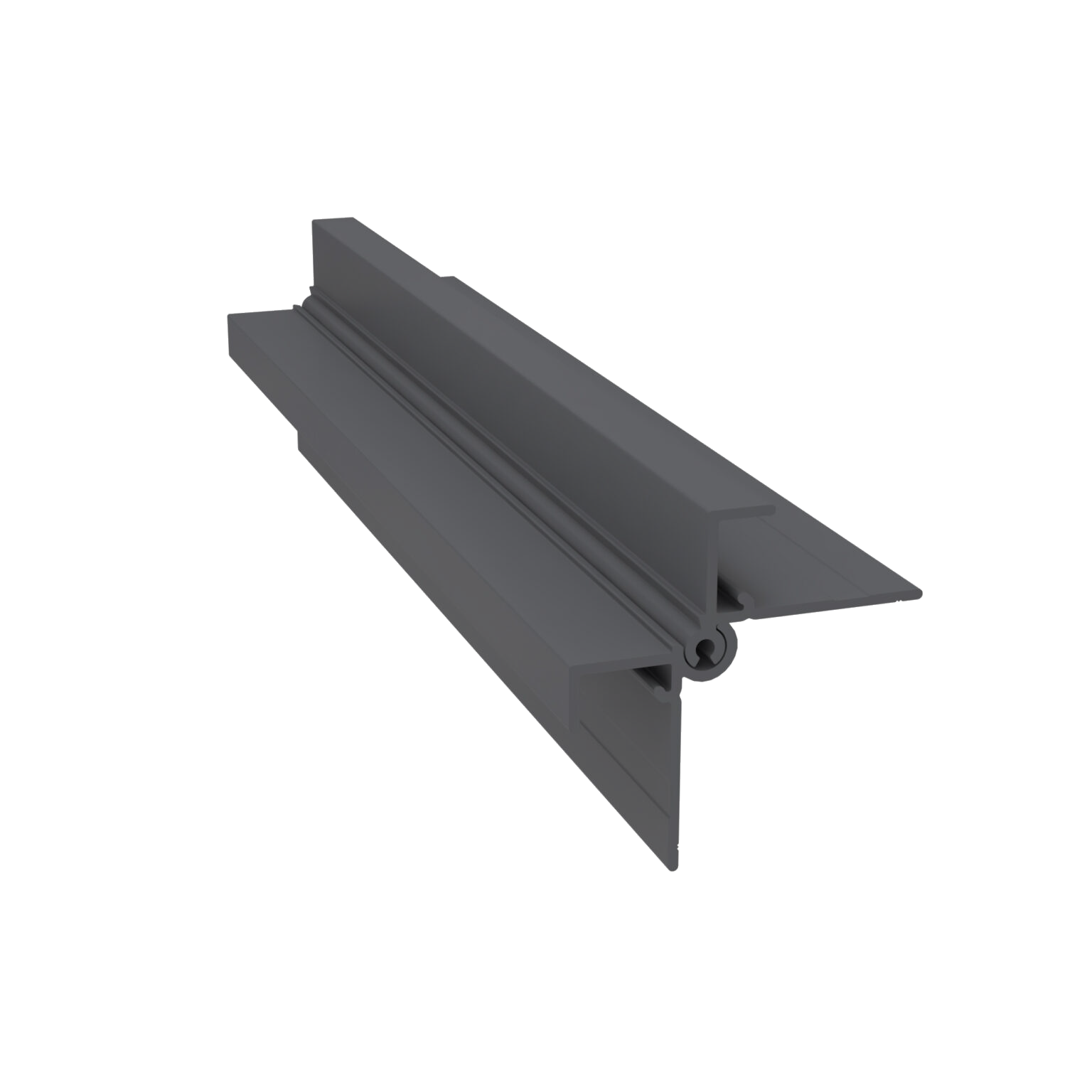

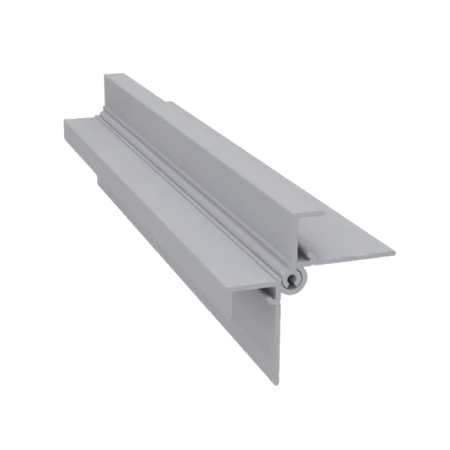

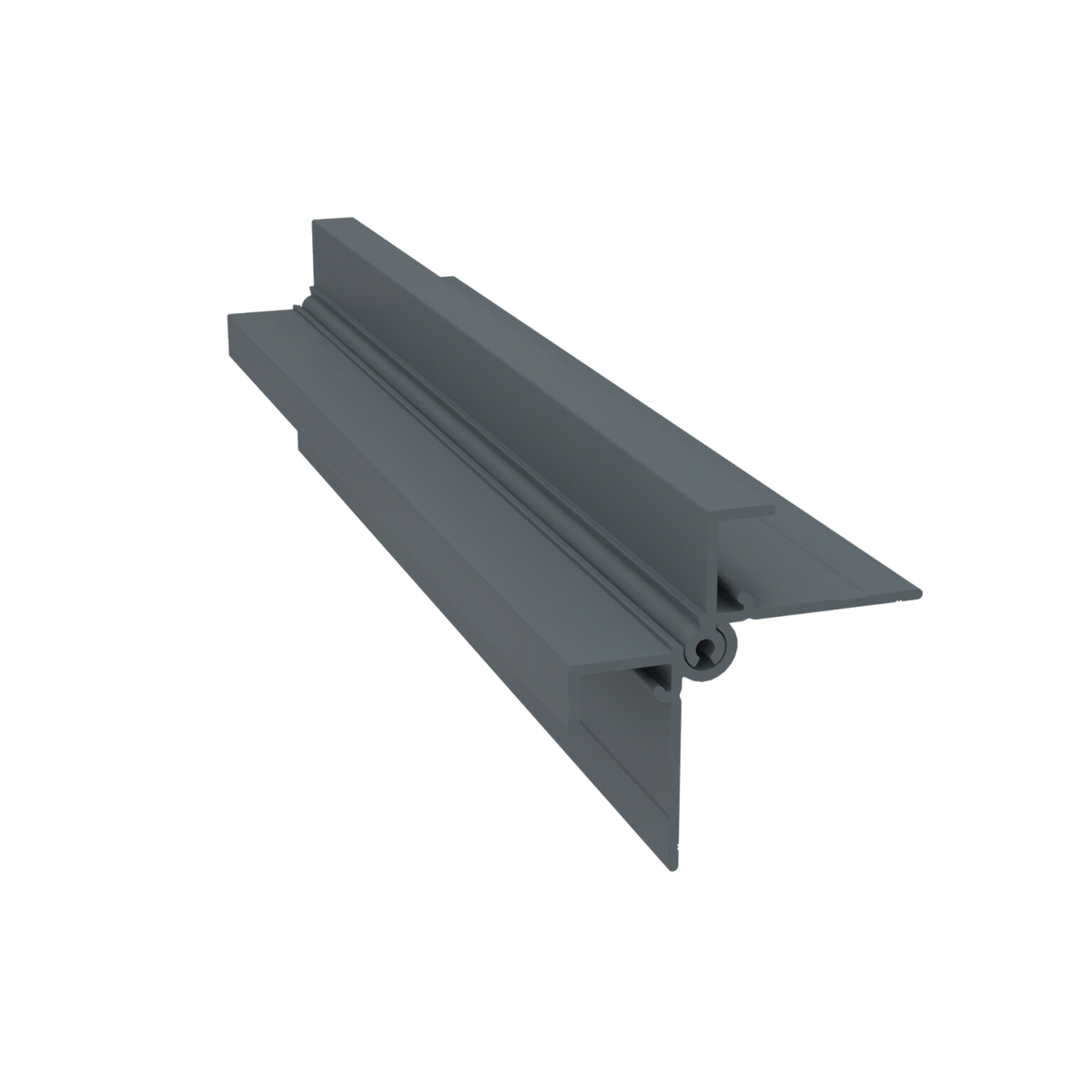

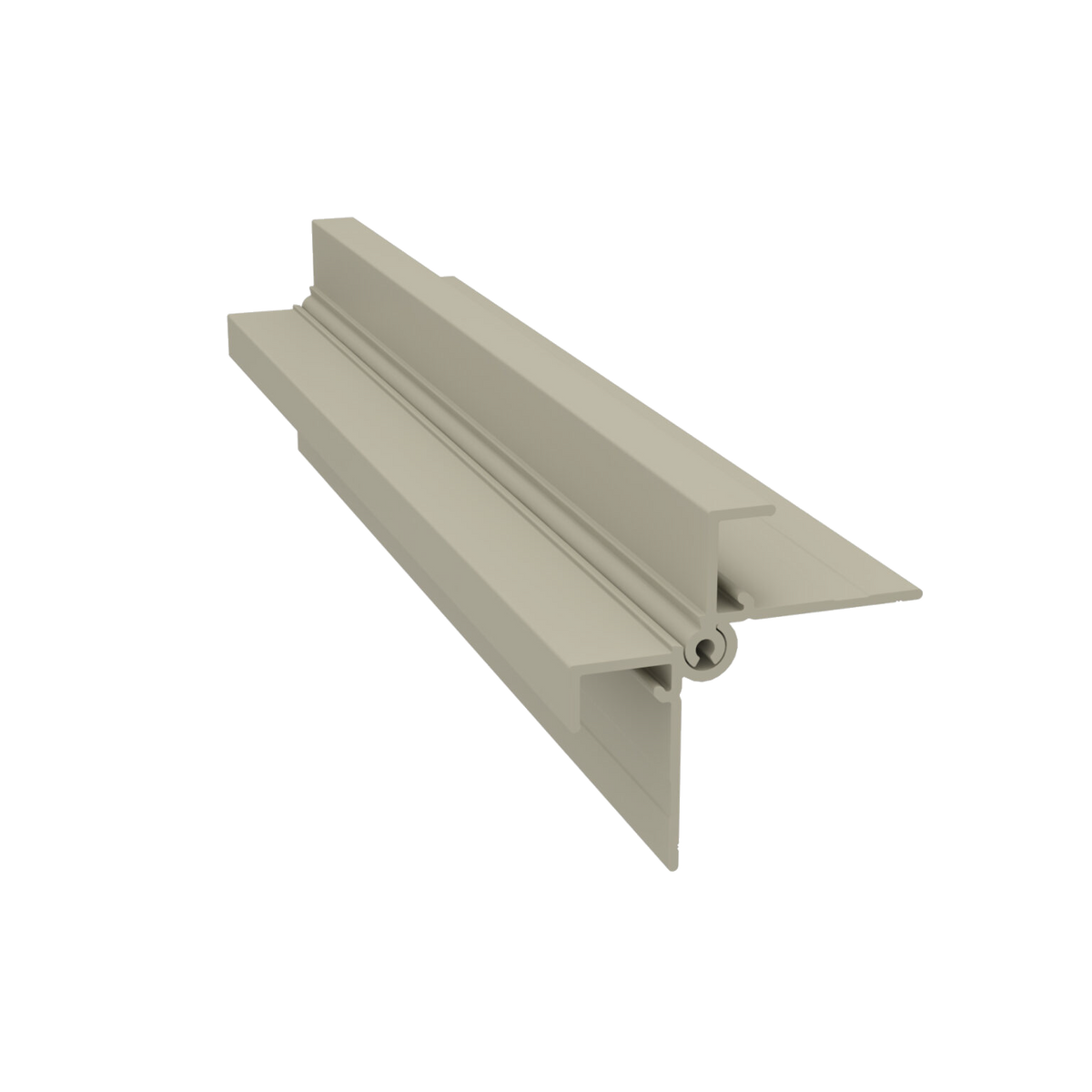

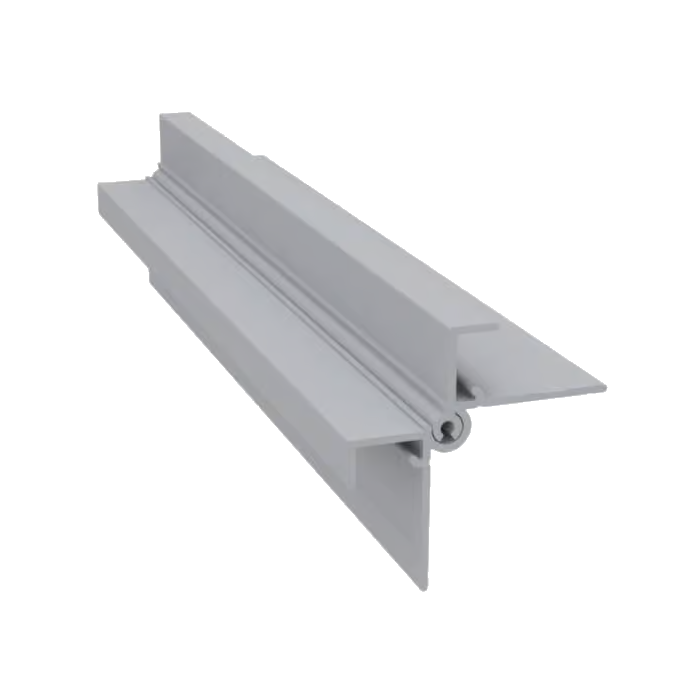

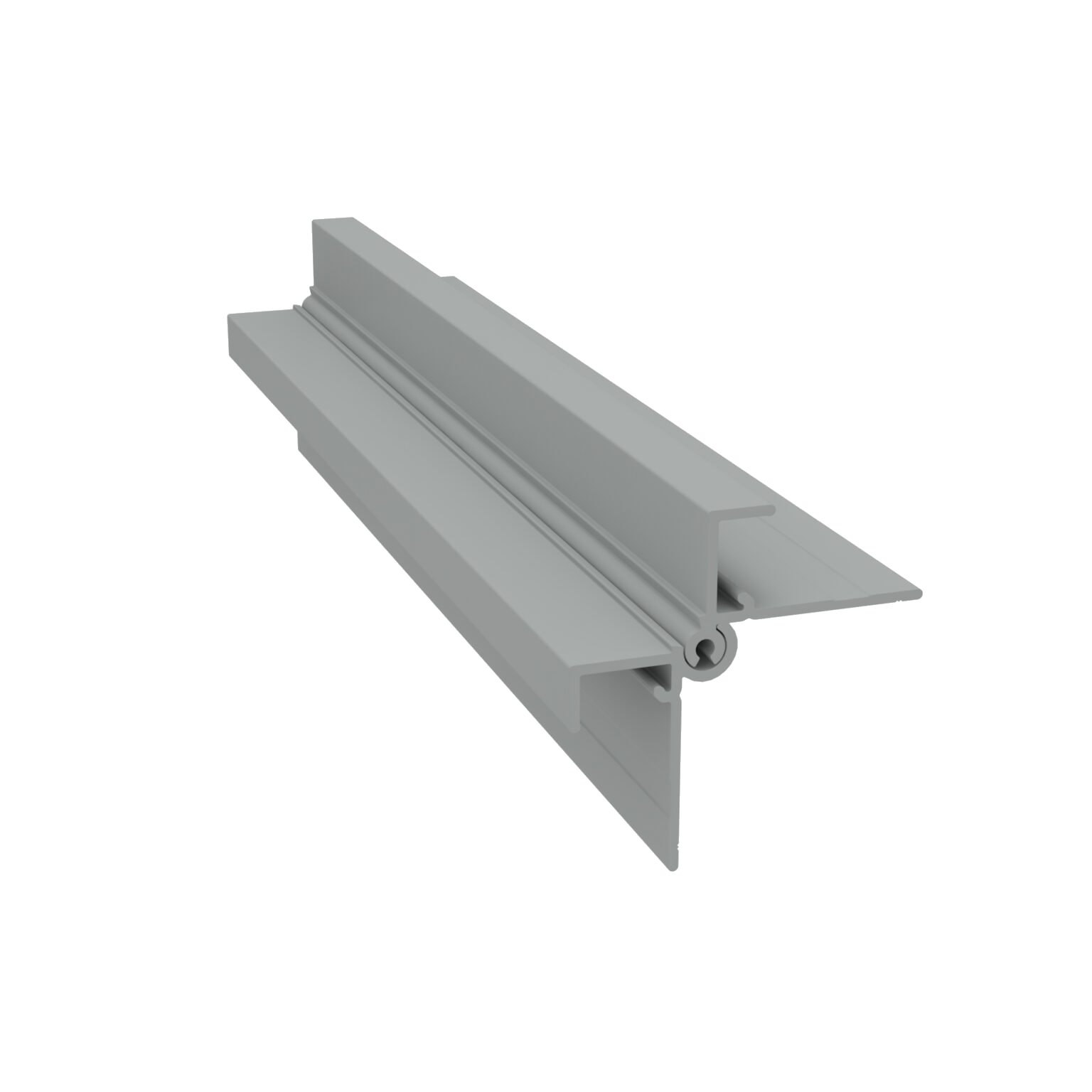

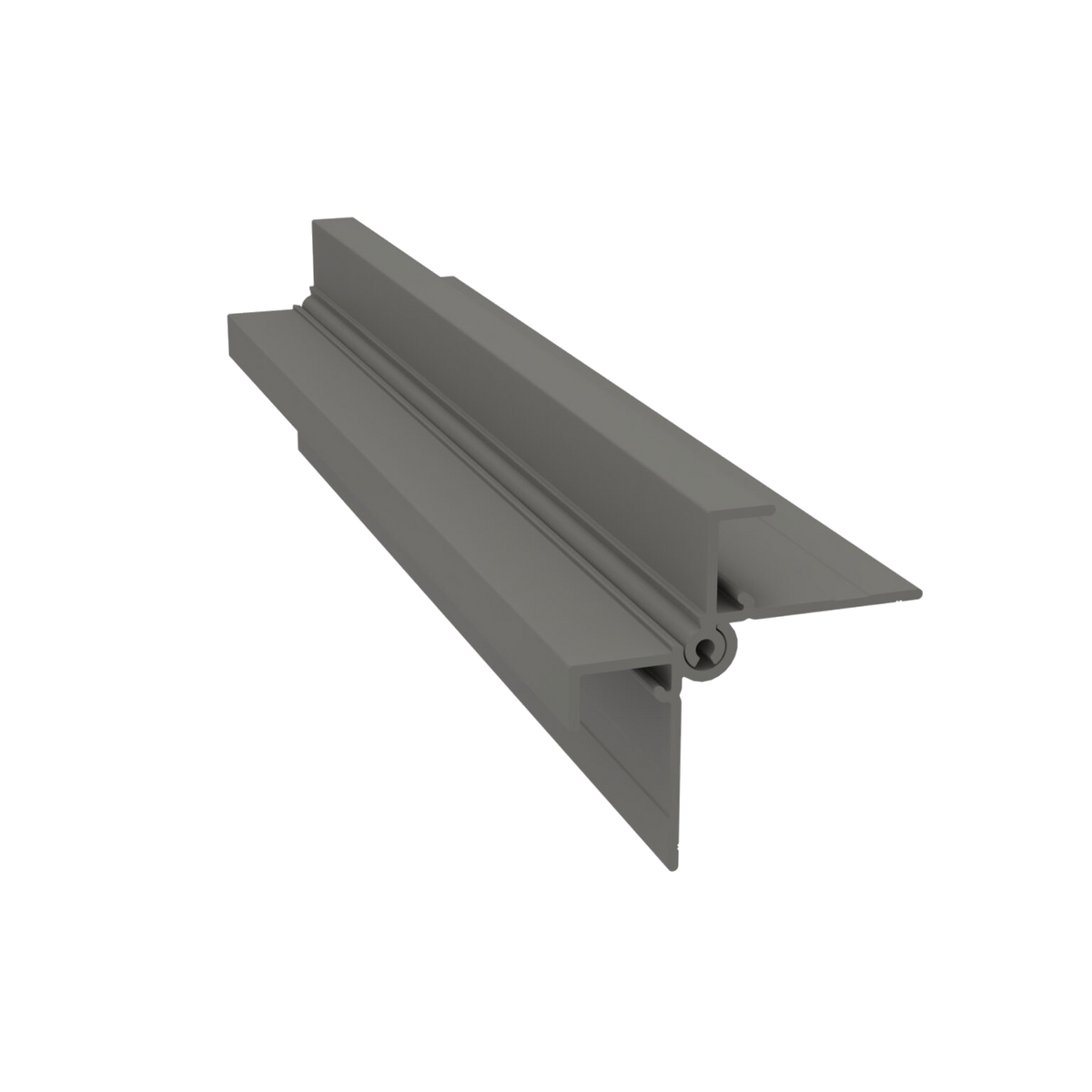

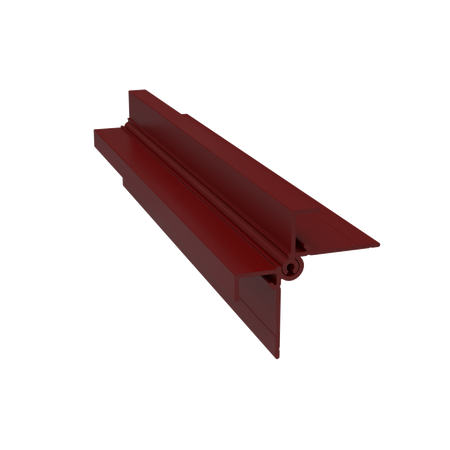

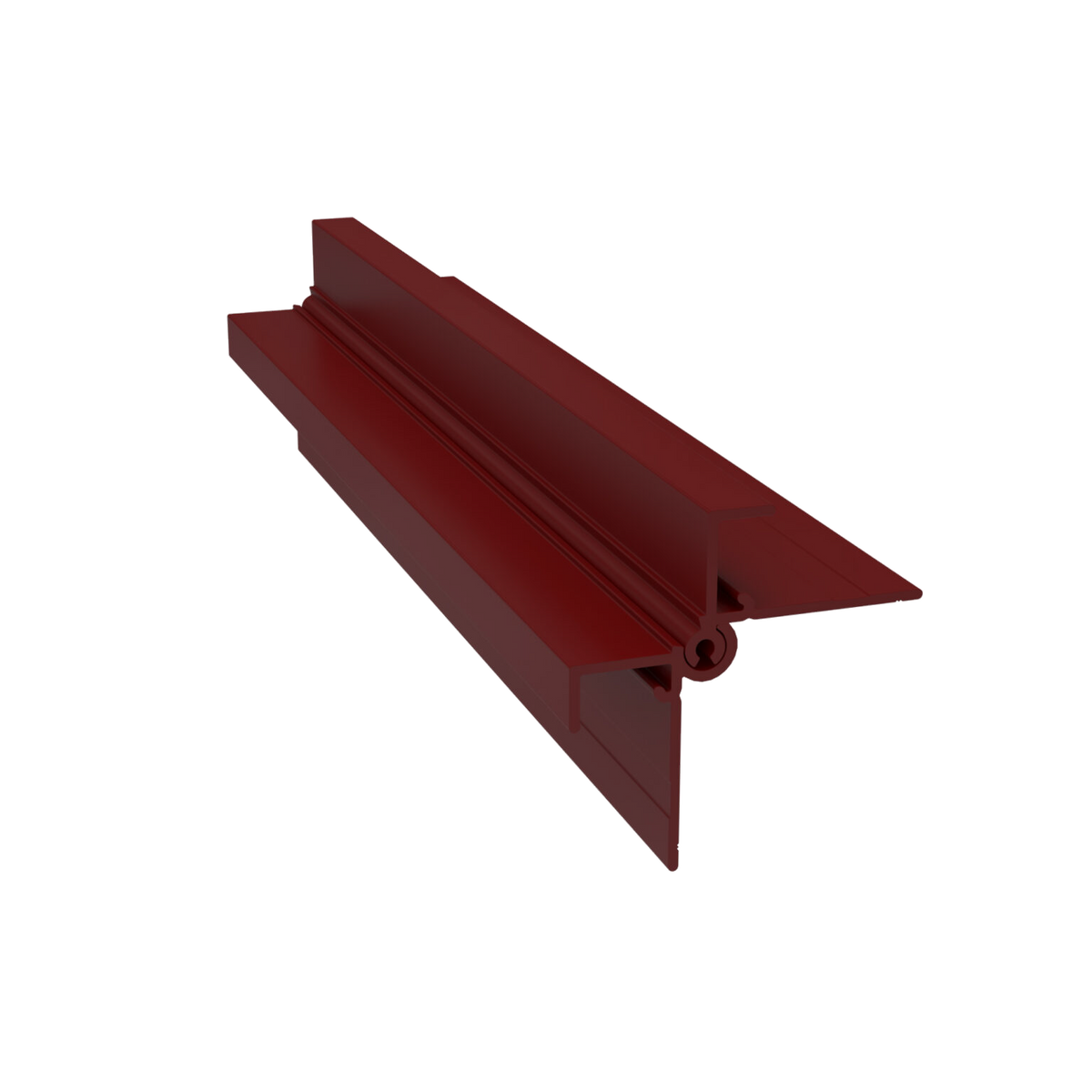

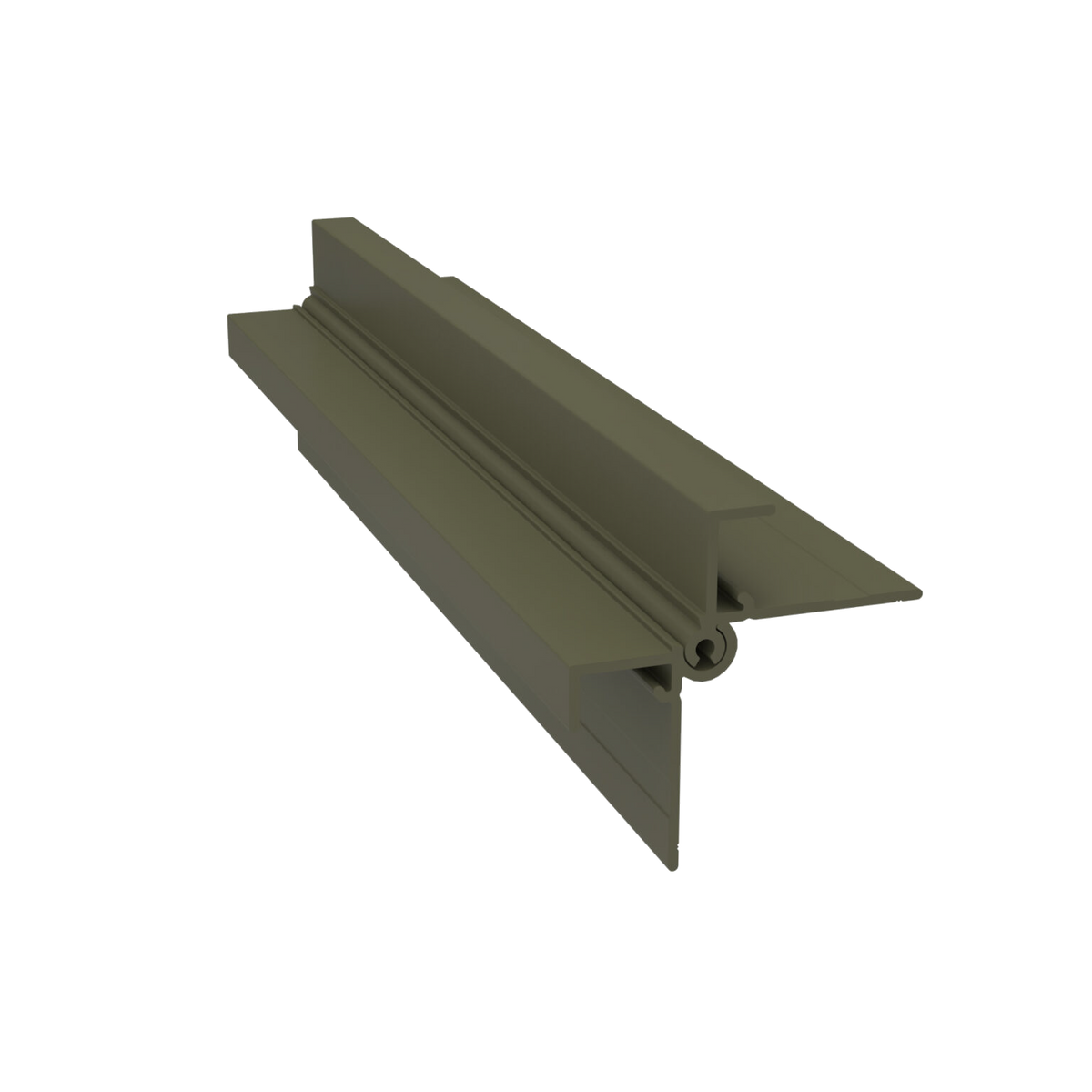

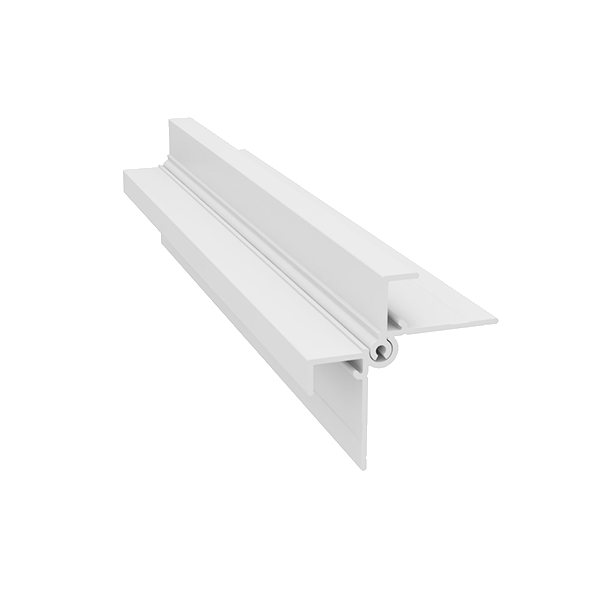

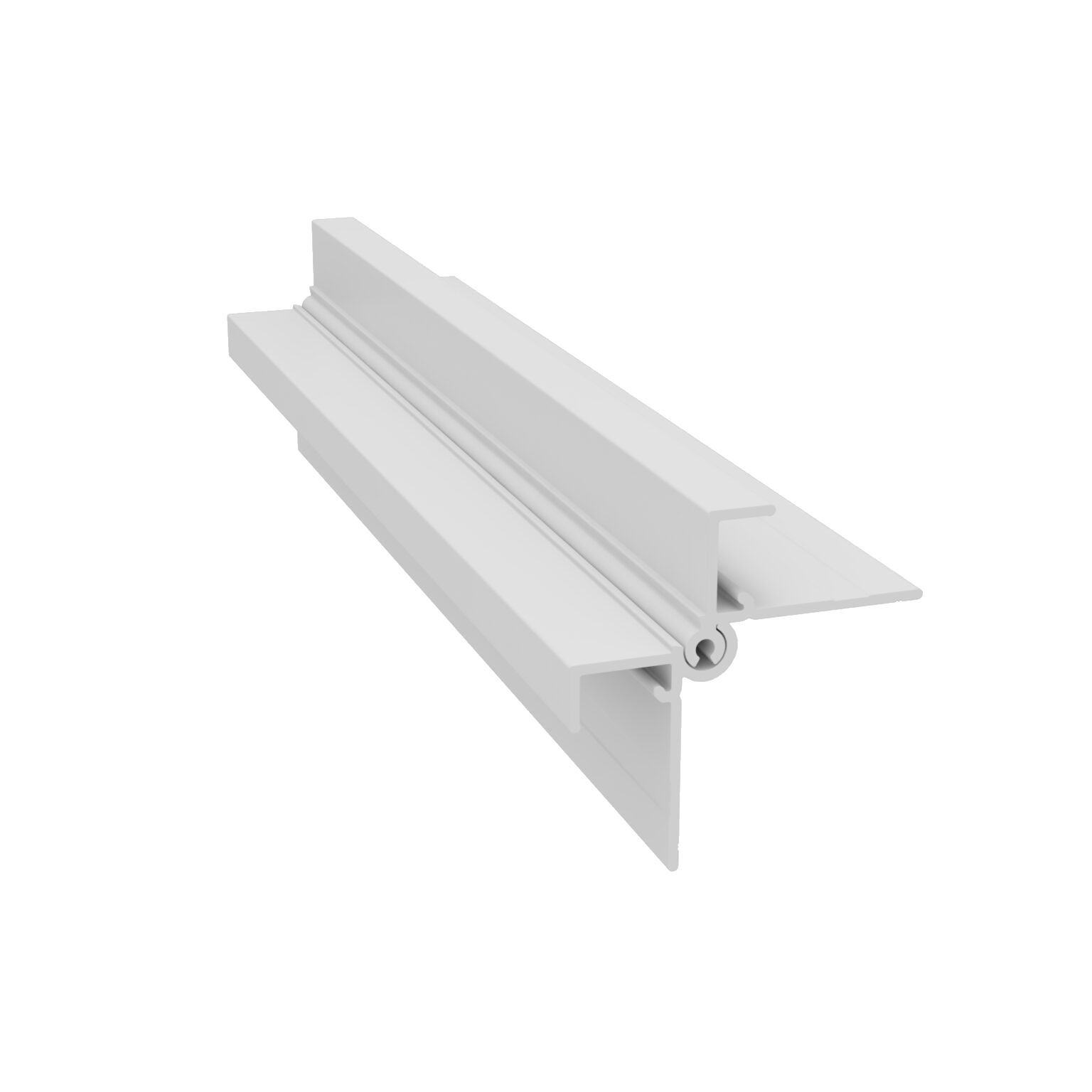

Light Trim 5/16" Panel Adjustable Outside Corner V904 | Shadow Collection

The Light Trim 5/16" Panel Adjustable Outside Corner V904 from the Shadow Collection offers unmatched flexibility for custom exterior designs. Specially engineered for use with 5/16" fiber cement and siding panels, this trim features an adjustable-angle profile—perfect for non-standard or angled outside corners.

Constructed from high-grade extruded aluminum and coated to meet AAMA 2604/2605 standards, it delivers excellent resistance to UV rays, moisture, and harsh weather conditions.

Key Features:

• Designed for 5/16" fiber cement and siding panels. Panel-to-panel application.

• Adjustable angle for non-90° outside corners; 105°-165°

• Matte Shadow finish enhances modern aesthetics

• Made from durable extruded aluminum

• Factory-applied AAMA 2604/2605 powder coat for long-term protection

• Ideal for complex angles in contemporary façades

• Clean, concealed installation with high-end finish

C904 SHADOW

V904 outside corner for angles between 90 and 160 degrees is specially designed for HardiePanel fiber cement panels. The M shape will be the most discreet available

Technical specifications

• Length: 3.048 m (120 po)

• Thickness: 1.4 mm

• Material: Aluminum 6360-T5

• Paint: PPG AAMA 2604

• Certified LEED® Canada v4

• Limited warranty: 20 years

• Made in Canada

All Light Trim colours are paint ready if you need a primed/paintable option.

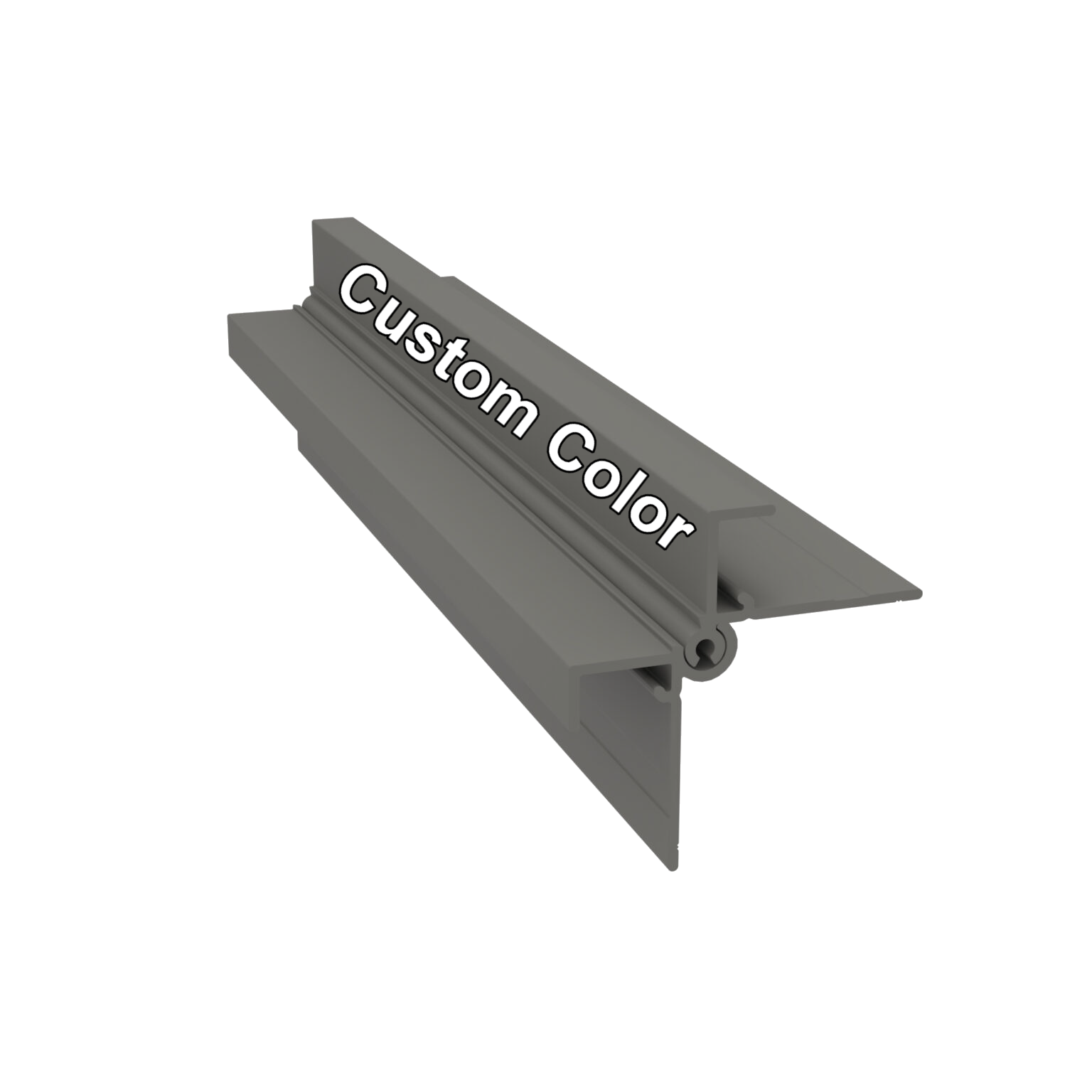

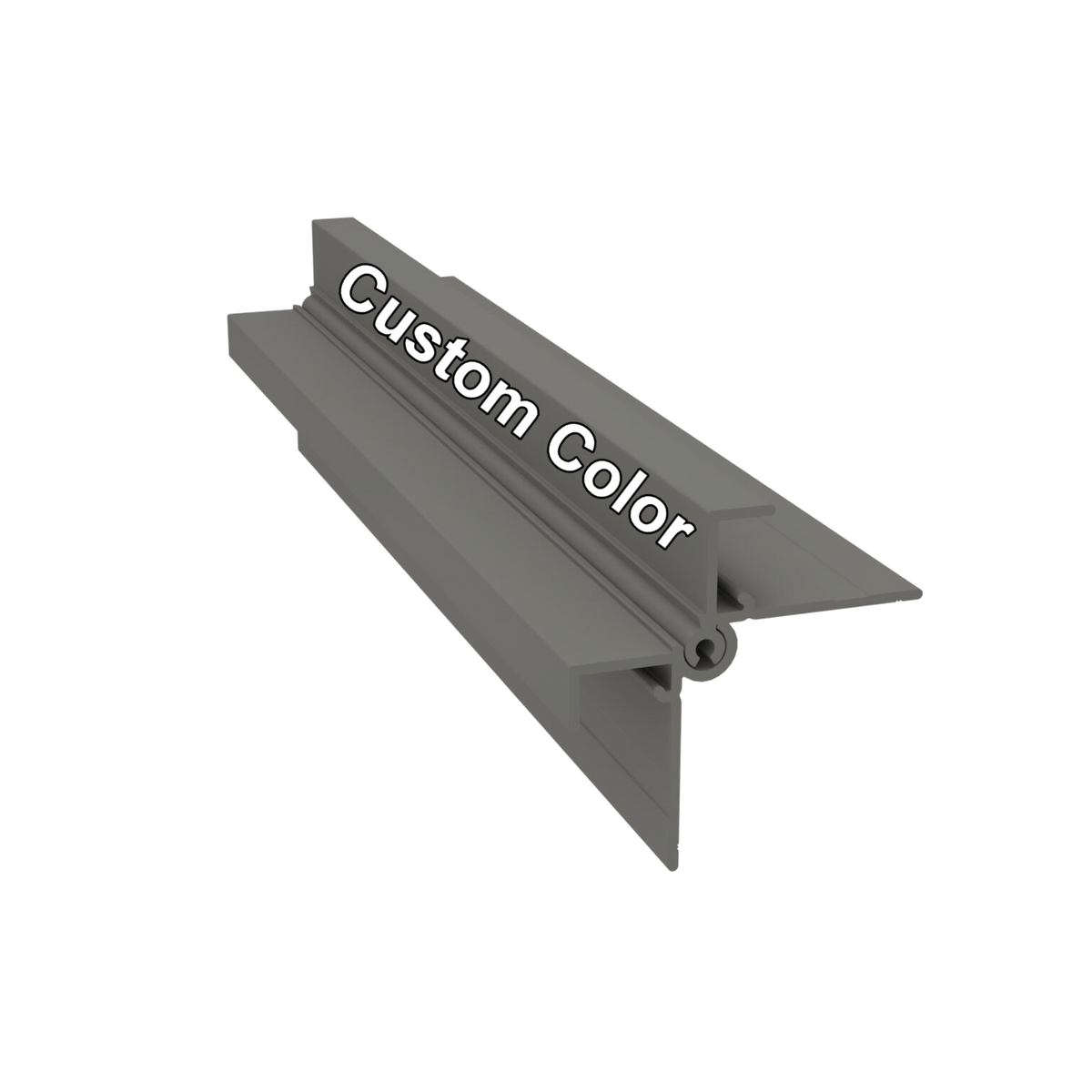

Custom Color options include tones from the James Hardie Dream Collection. A $150 setup fee applies for custom colors.
