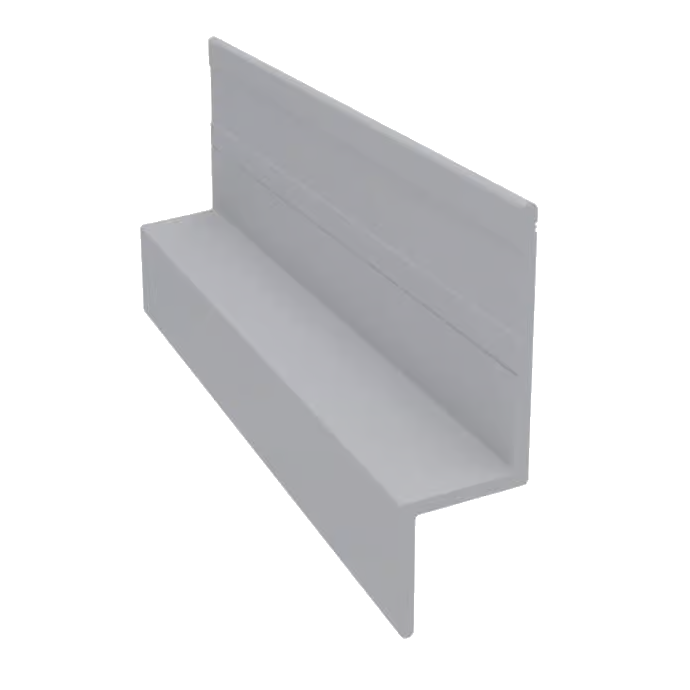

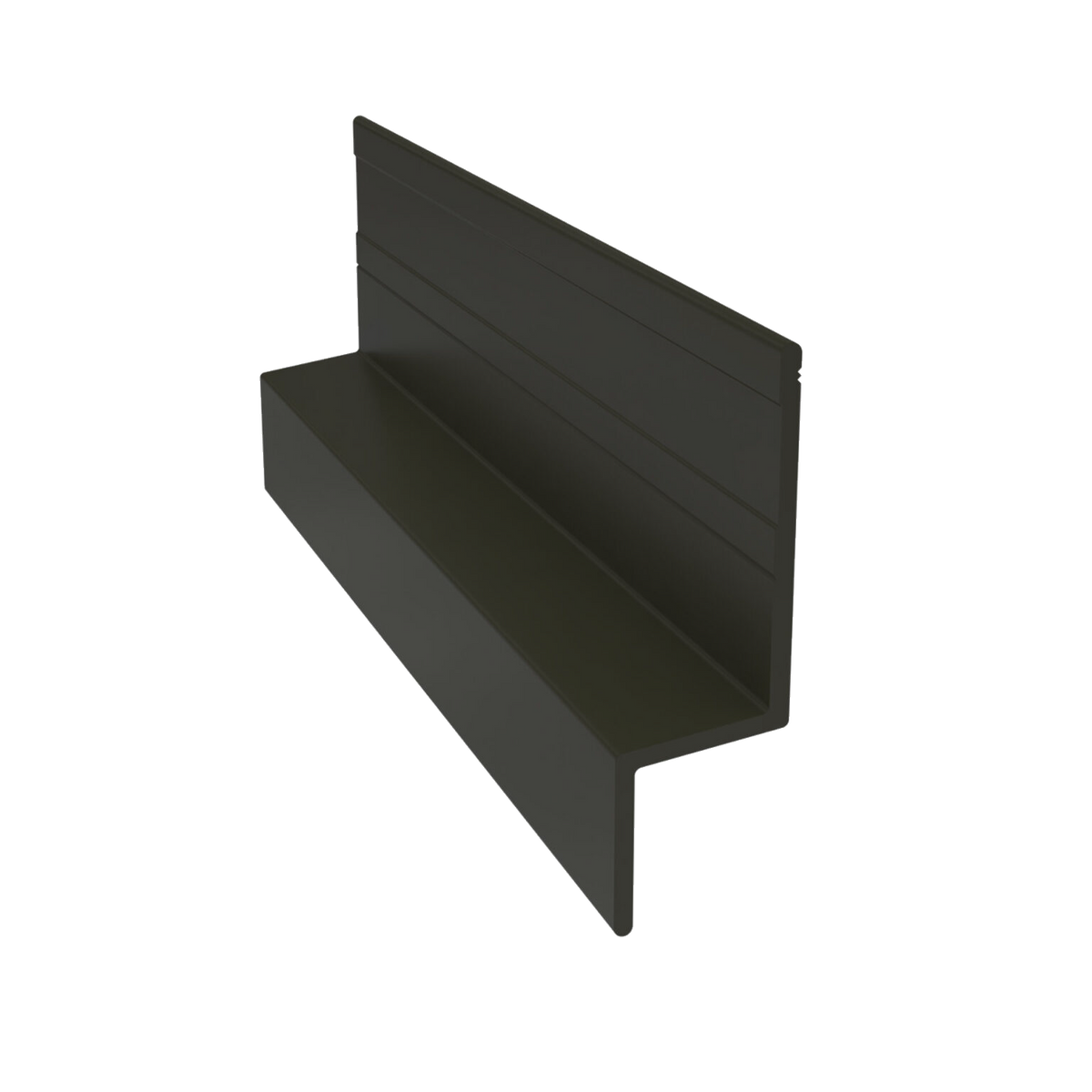

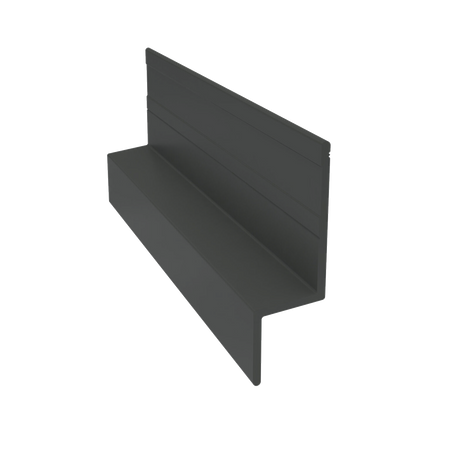

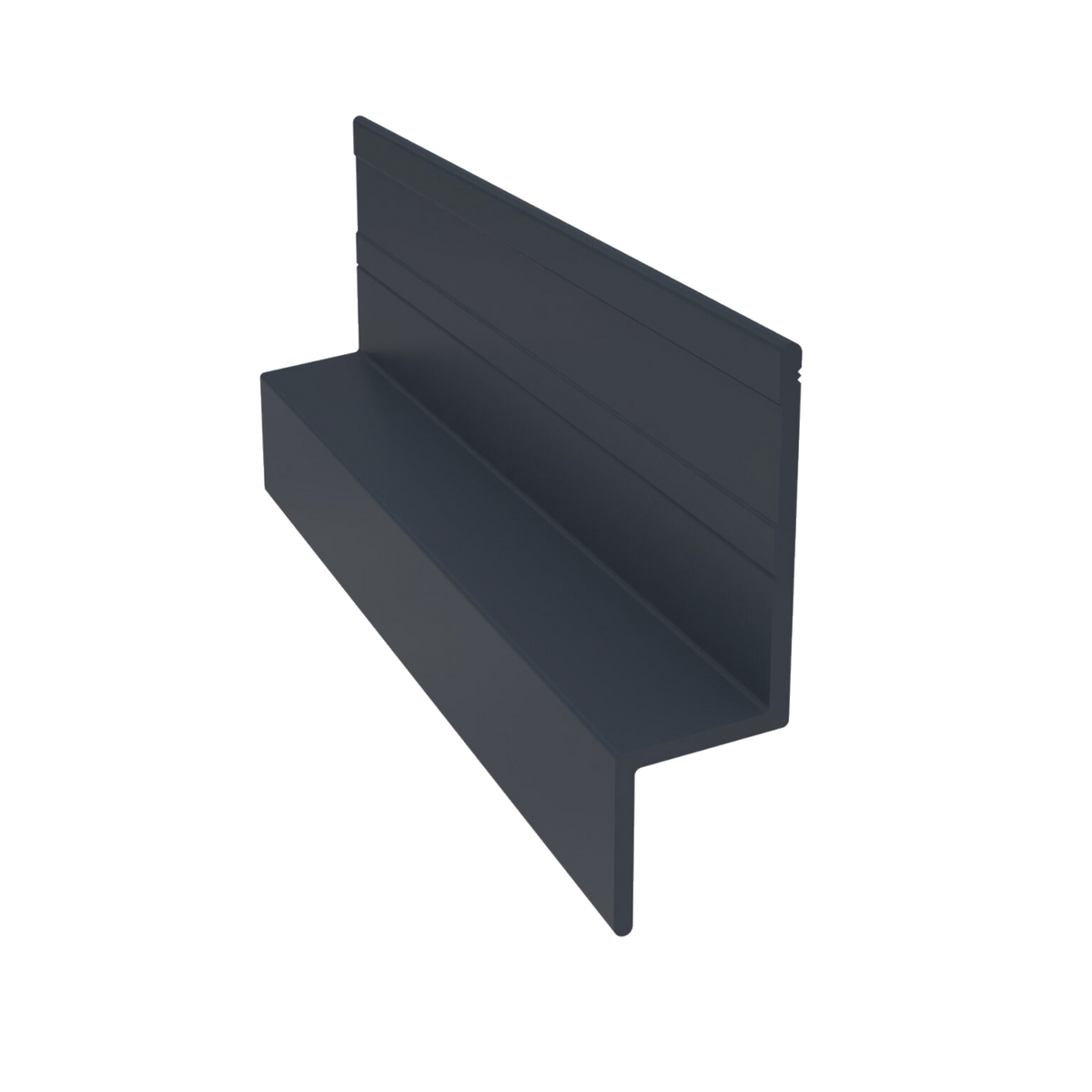

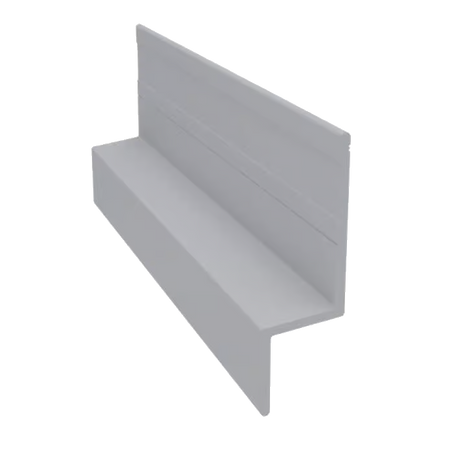

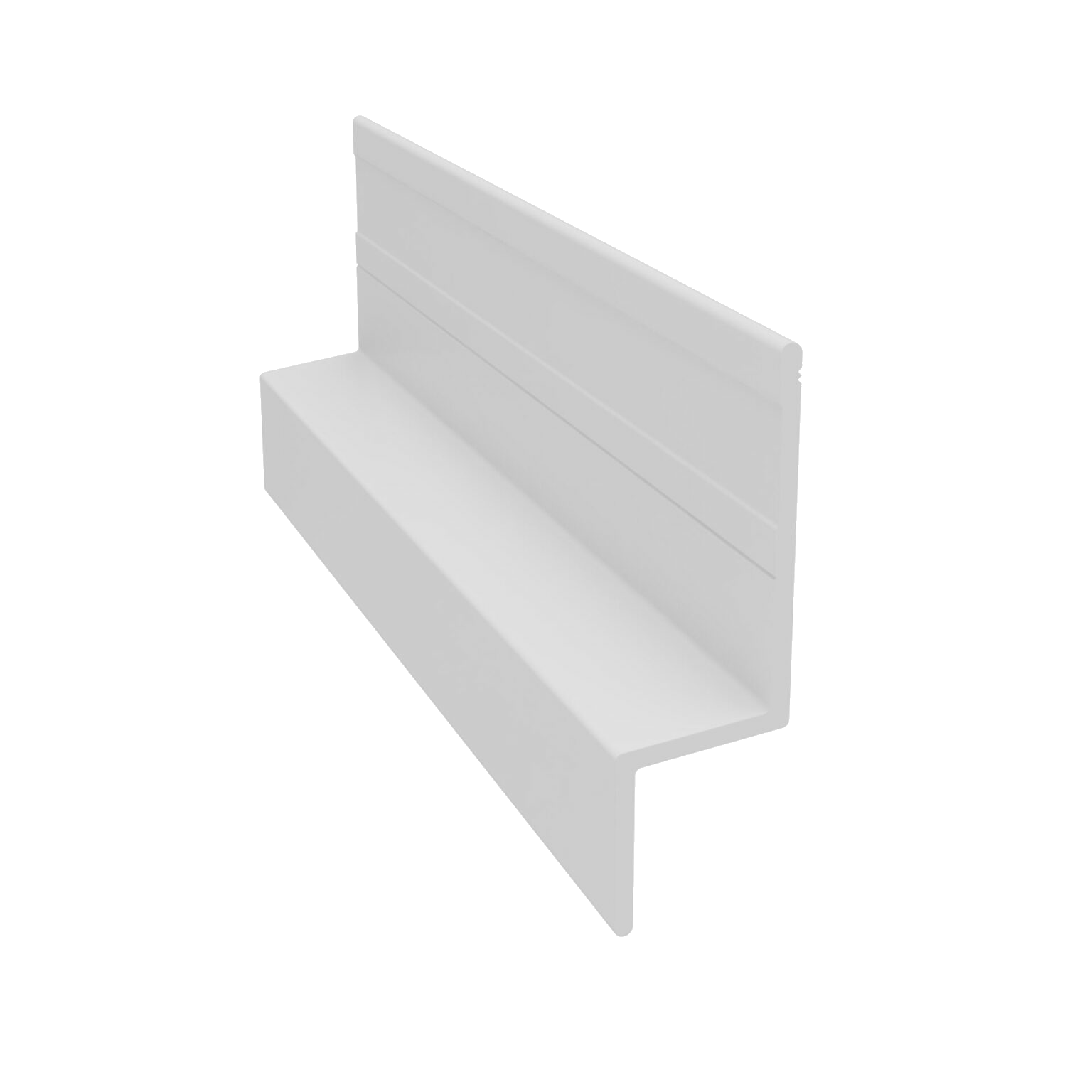

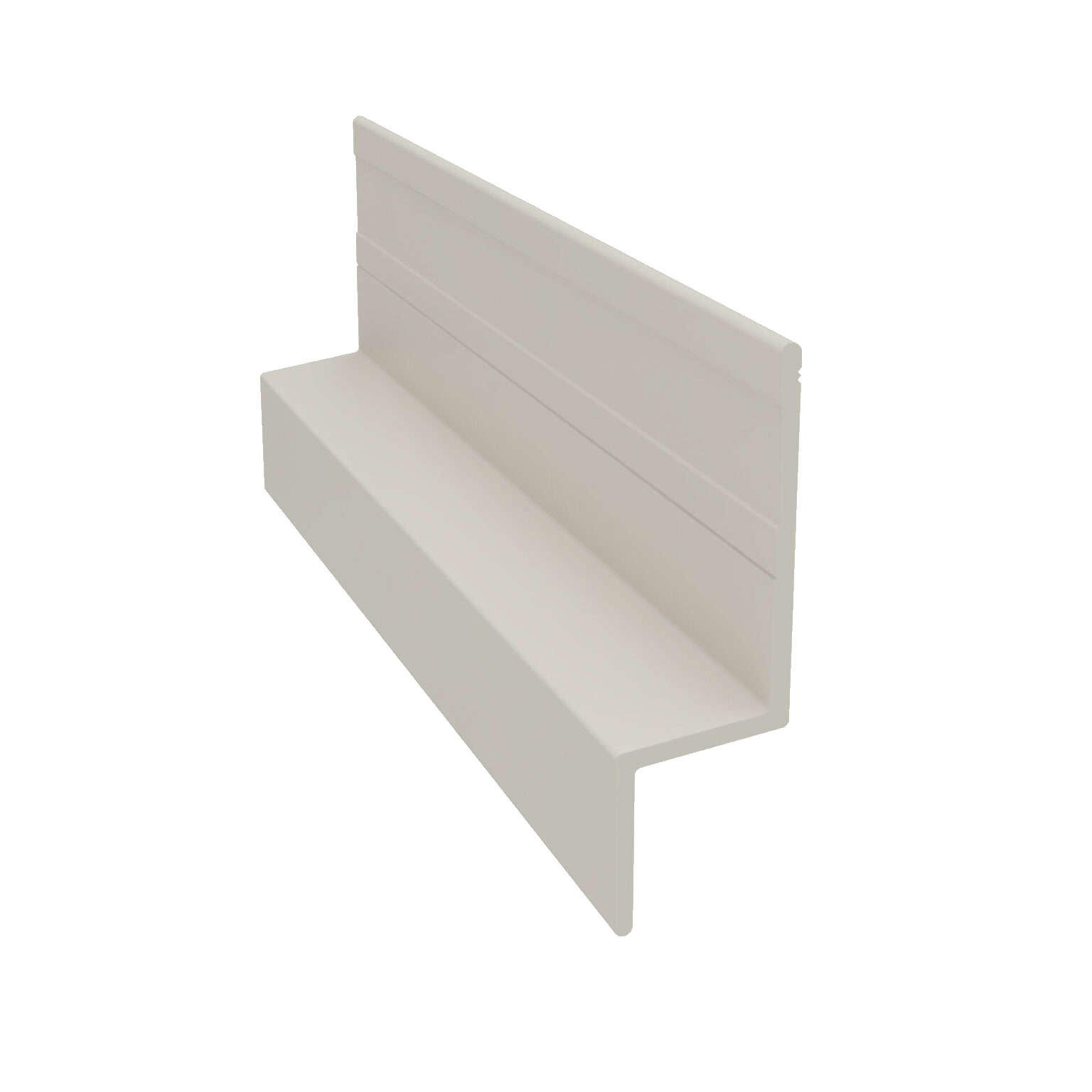

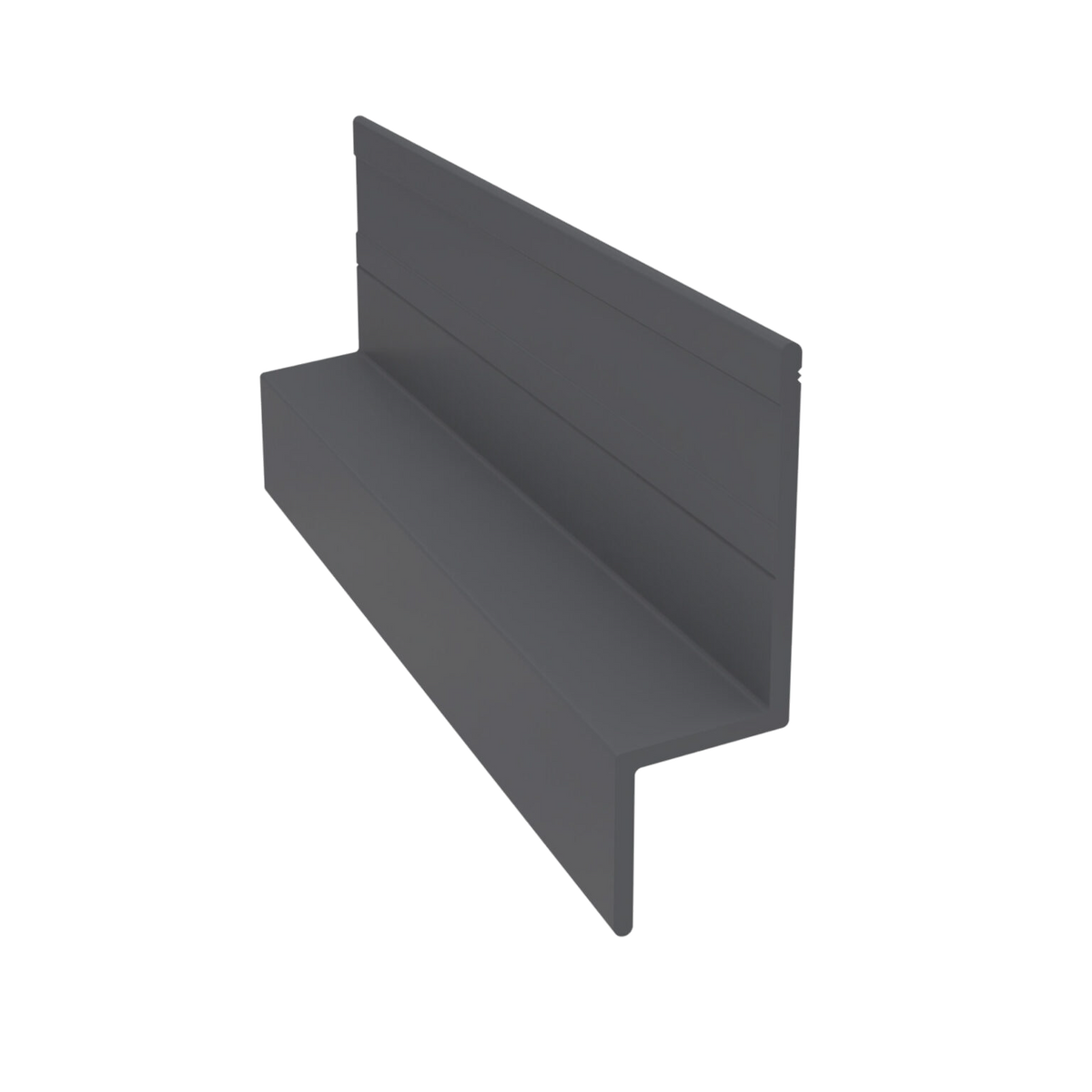

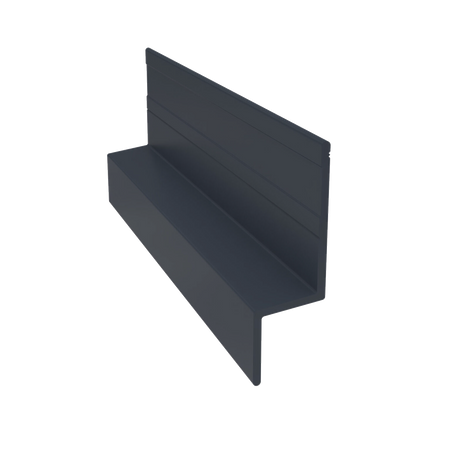

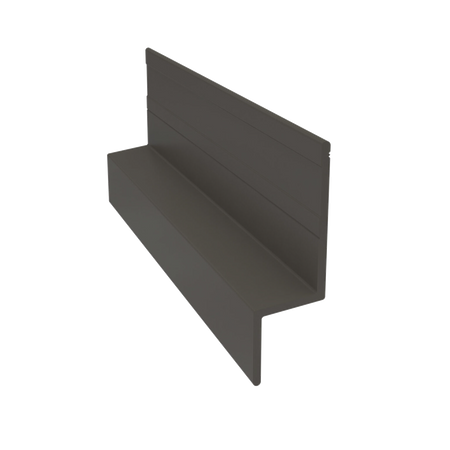

Light Trim 5/16" Panel Horizontal Trim H001XL | Shadow XL Collection

Create bold, continuous horizontal lines with the Light Trim 5/16" Panel Horizontal Trim H001XL from the Shadow XL Collection. Designed for 5/16" thick fiber cement and siding panels, this extra-long trim profile spans wider areas with fewer seams, delivering a sleek and uninterrupted look for modern exterior facades.

The H001XL features a matte Shadow XL finish—a deeper, extended-width version of the original Shadow color—perfect for emphasizing linear design in contemporary architecture. Constructed from high-performance extruded aluminum and finished with a durable AAMA 2604/2605 powder coat, this trim resists fading, corrosion, and weathering for long-term beauty and structural integrity.

Key Features:

• Fits 5/16" fiber cement and siding panels. Panel-to-panel trim.

• Extra-long profile minimizes seams in wide horizontal spans

• Matte Shadow XL finish for modern design continuity

• Corrosion-resistant extruded aluminum construction

• Durable powder coating meets AAMA 2604/2605 standards

• Ideal for commercial or residential rainscreen applications

• Clean, professional finish with easy installation

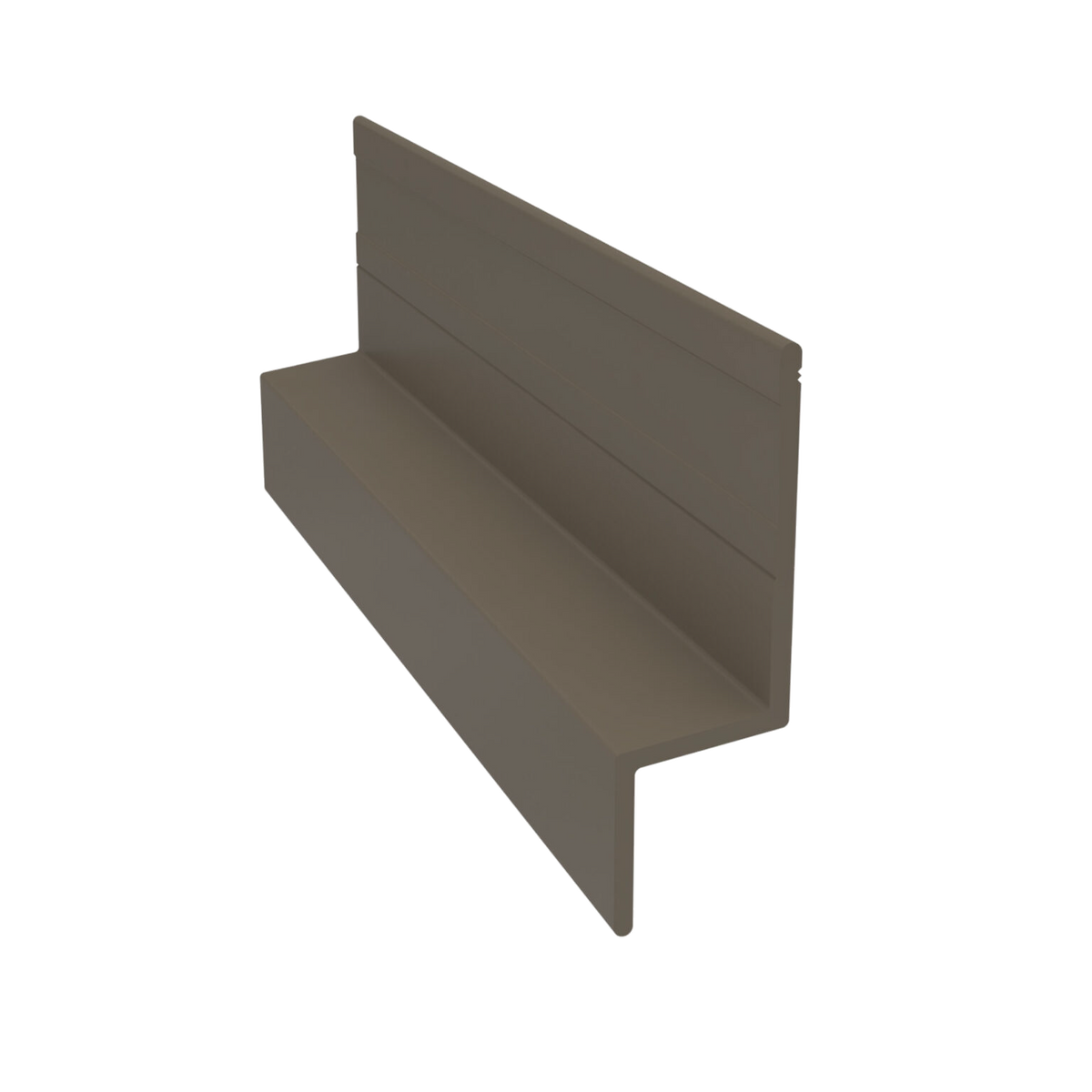

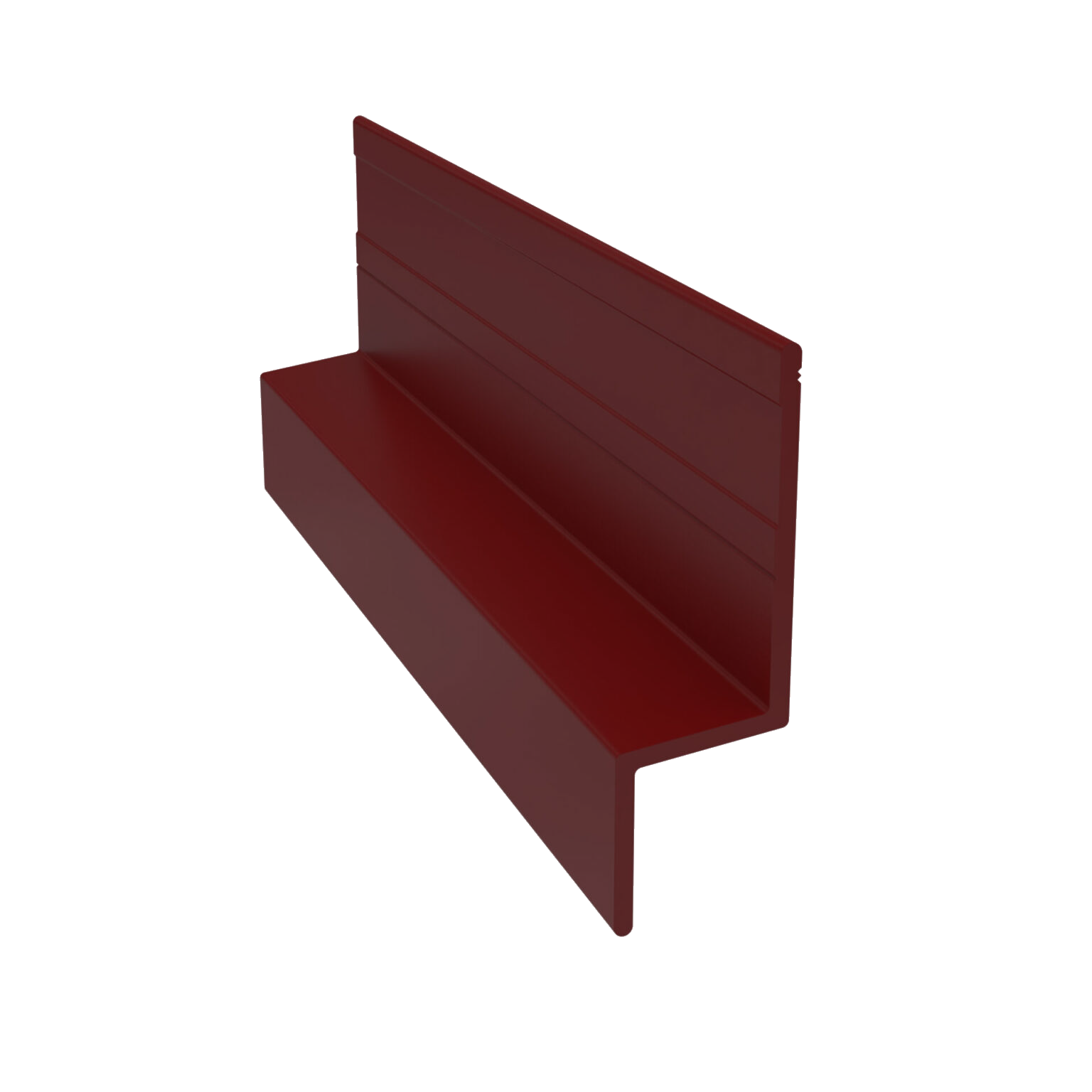

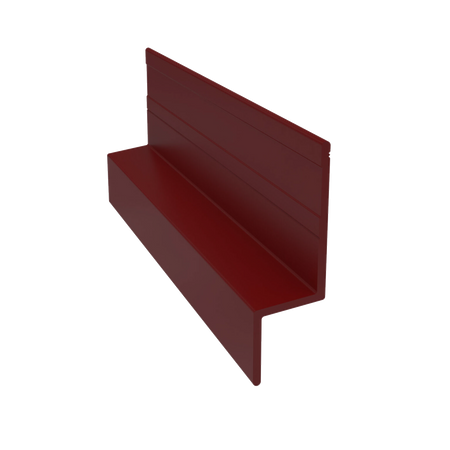

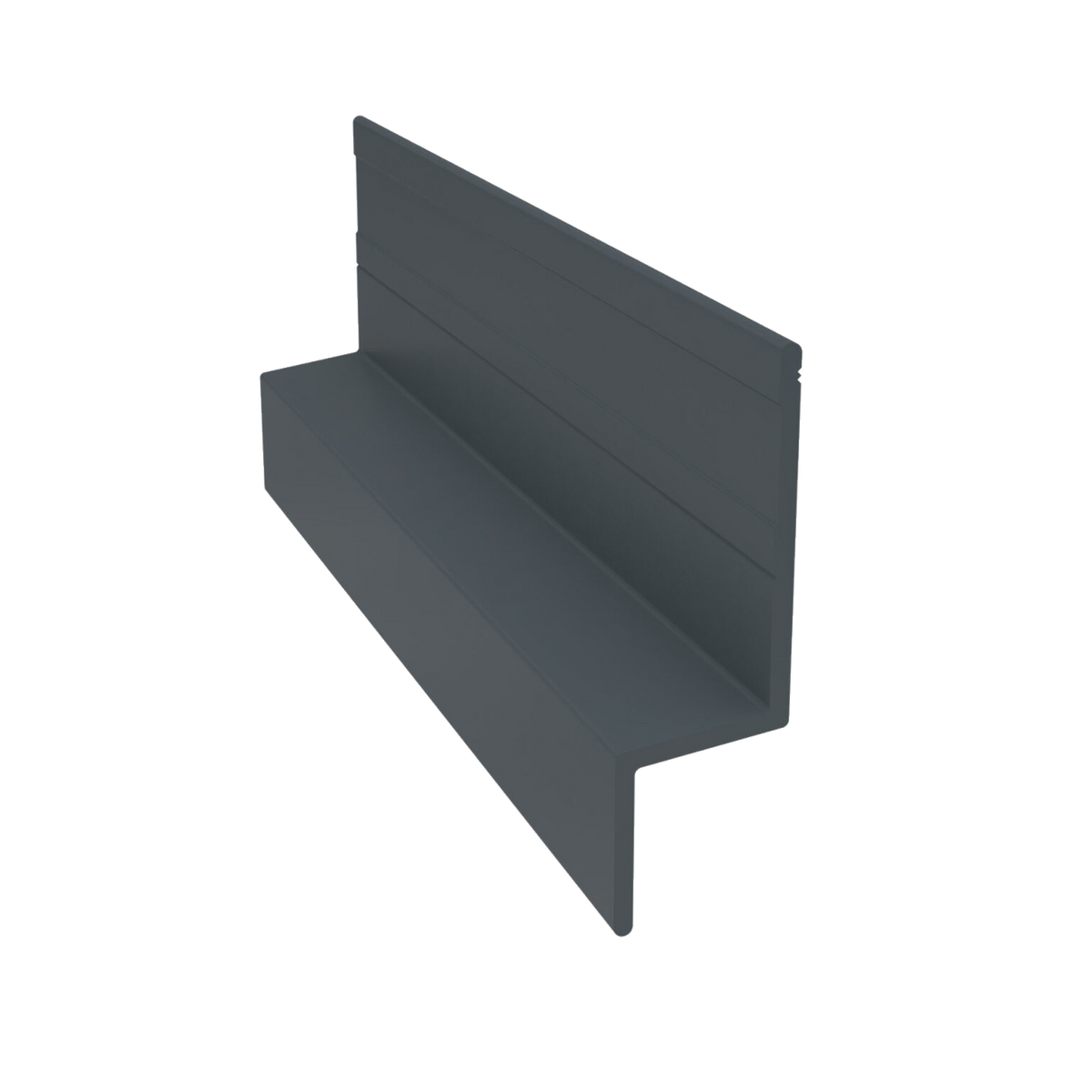

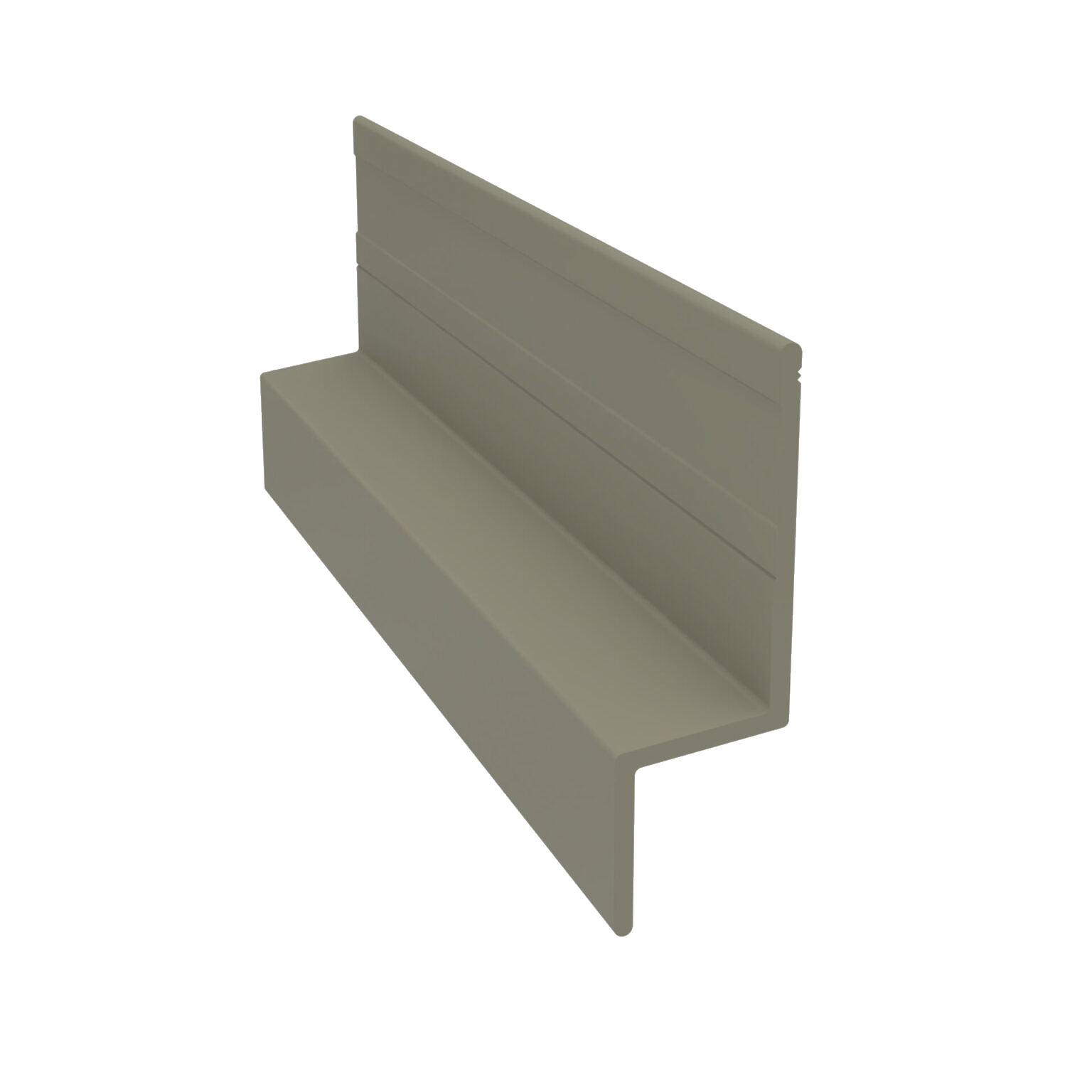

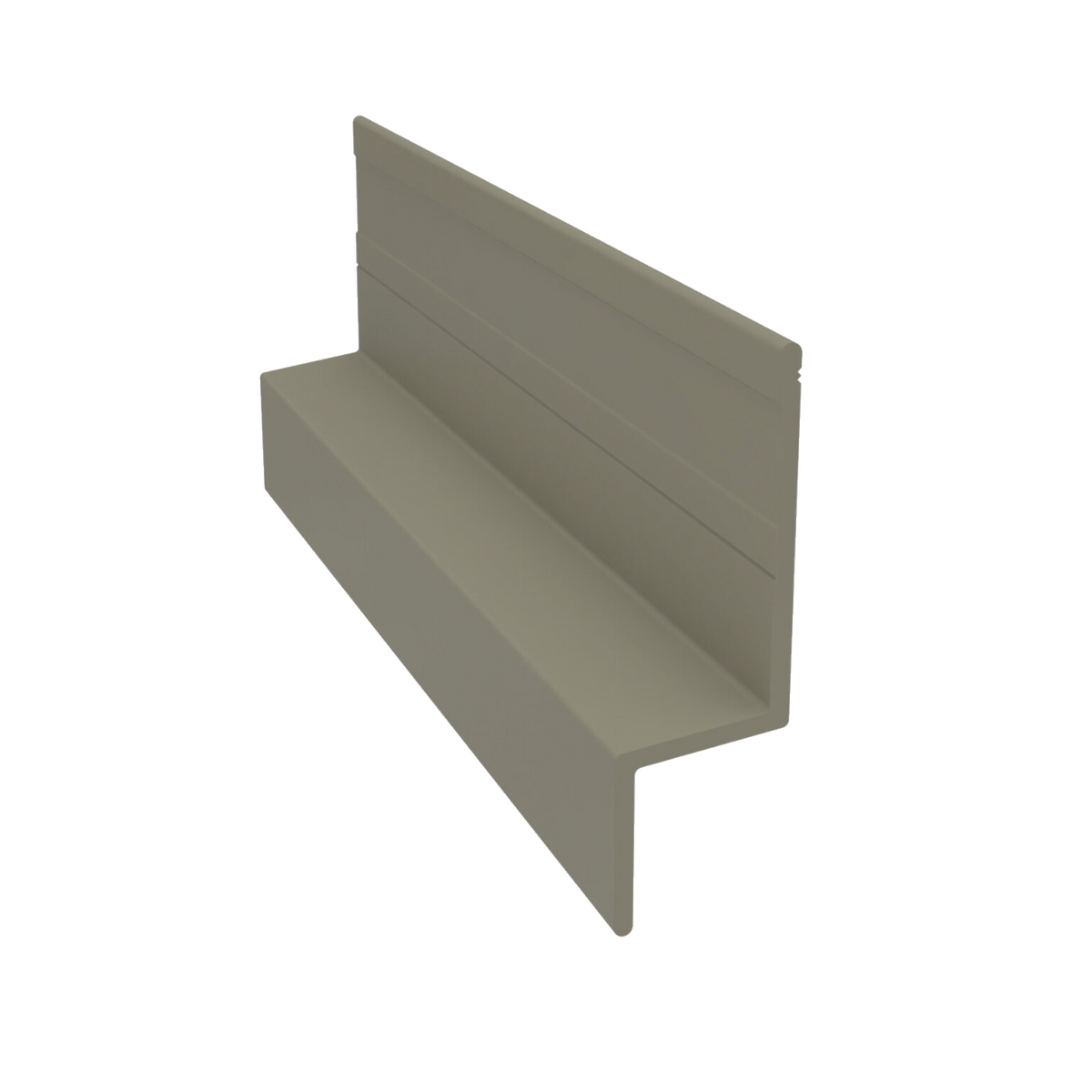

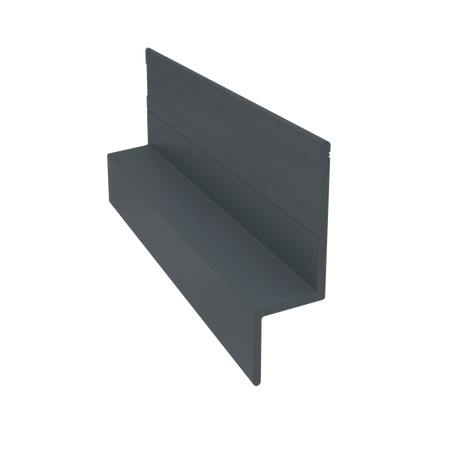

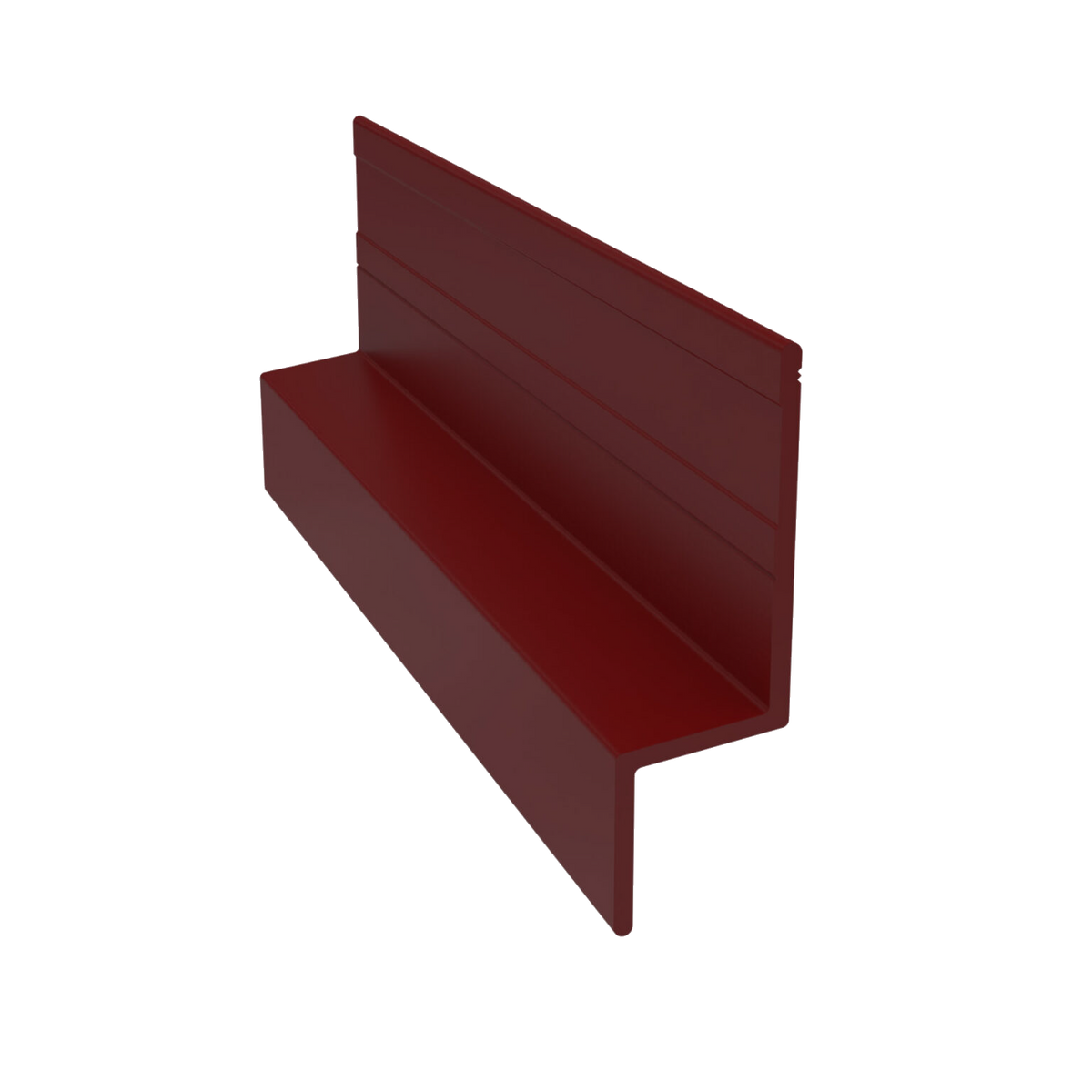

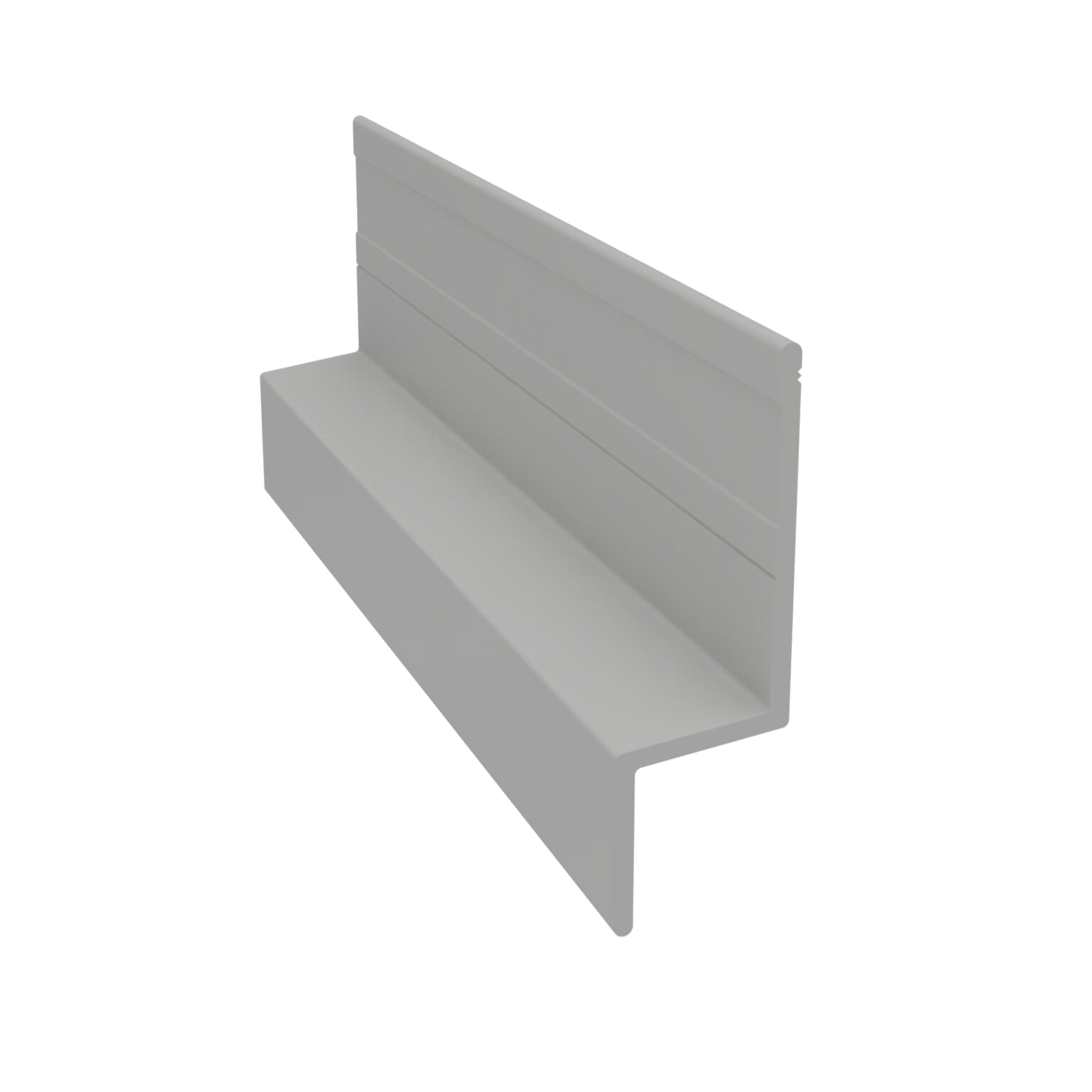

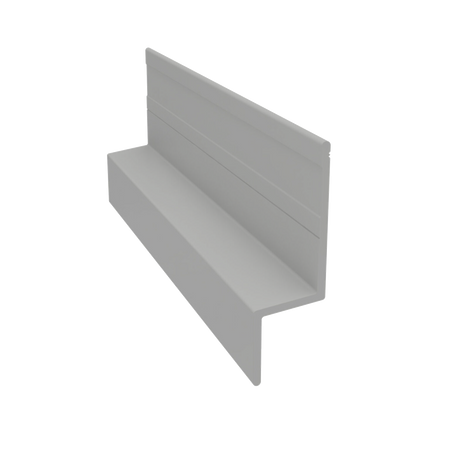

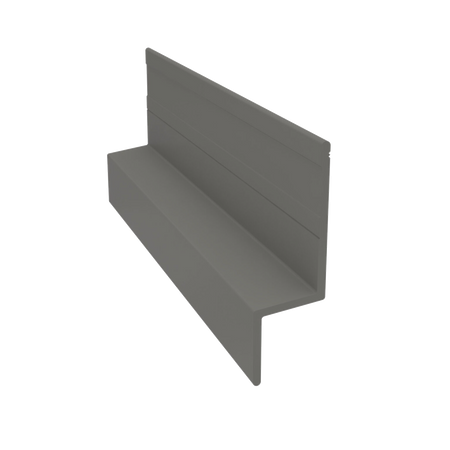

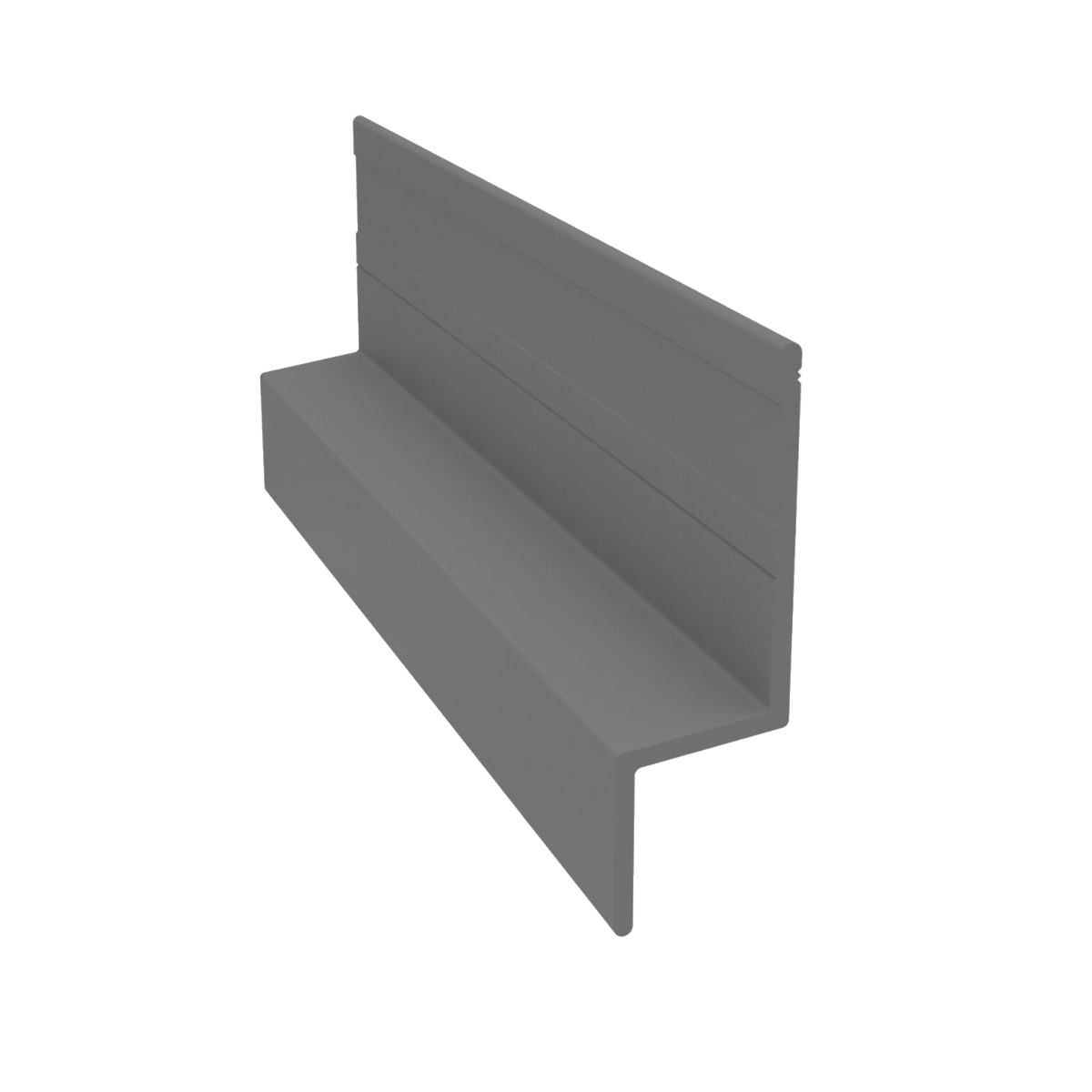

H001XL Shadow XL

H001XL Shadow horizontal trims for the HardiePanel, ensures water flow on your siding. Very discreet, you will only see a shadow of 1/4 inch

Technical specifications

• Length: 3.048 m (120 po)

• Thickness: 1.4 mm

• Material: Aluminum 6360-T5

• Paint: PPG AAMA 2604

• Certified LEED® Canada v4

• Limited warranty: 20 years

• Made in Canada

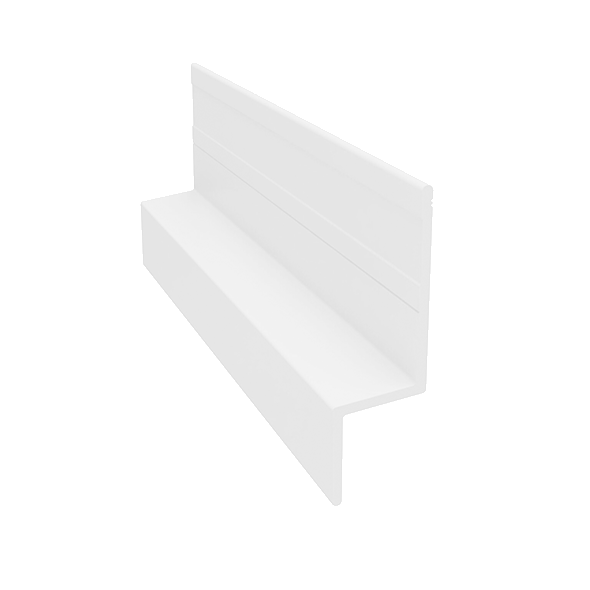

All Light Trim colours are paint ready if you need a primed/paintable option.

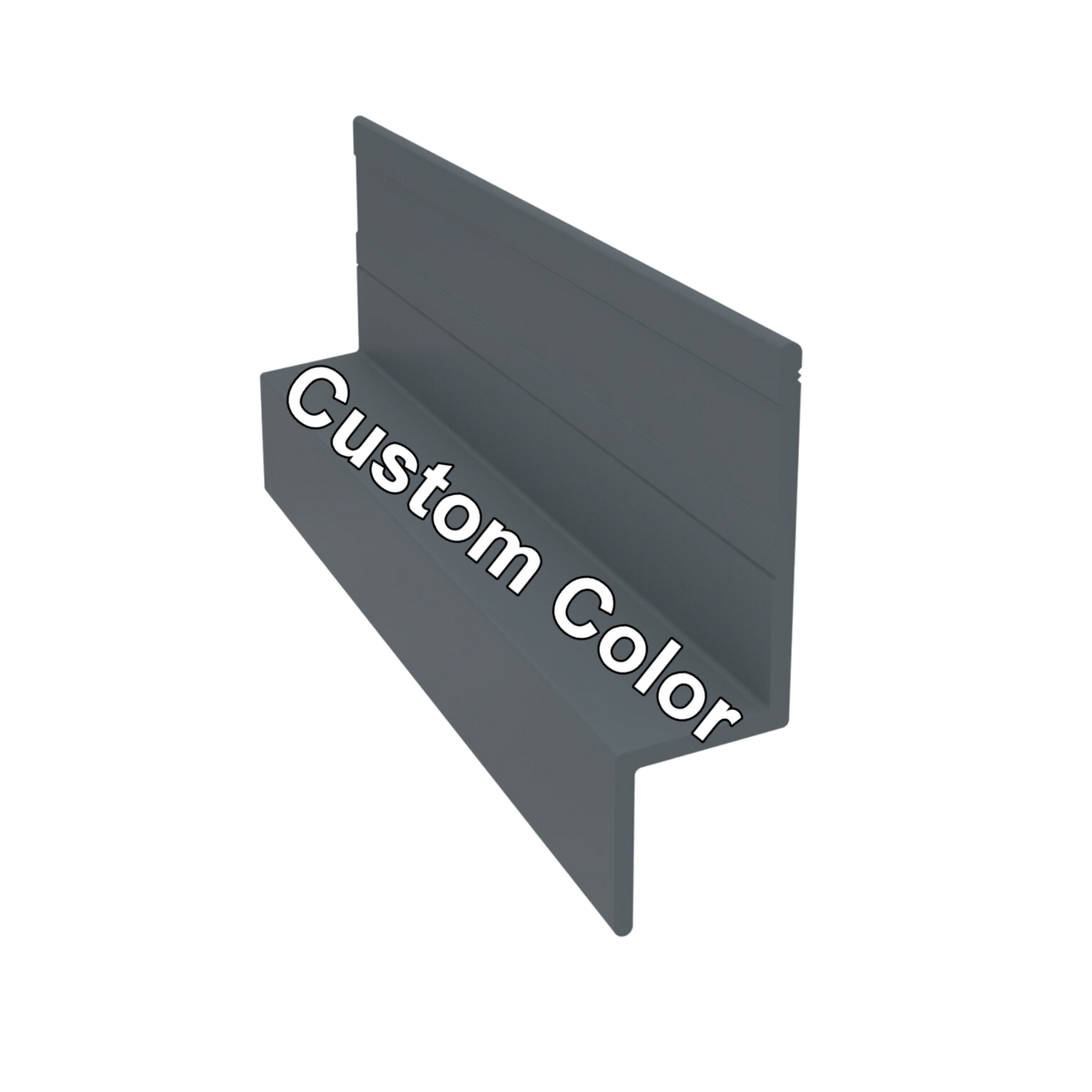

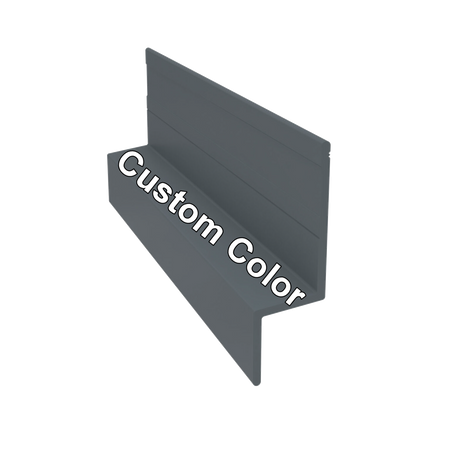

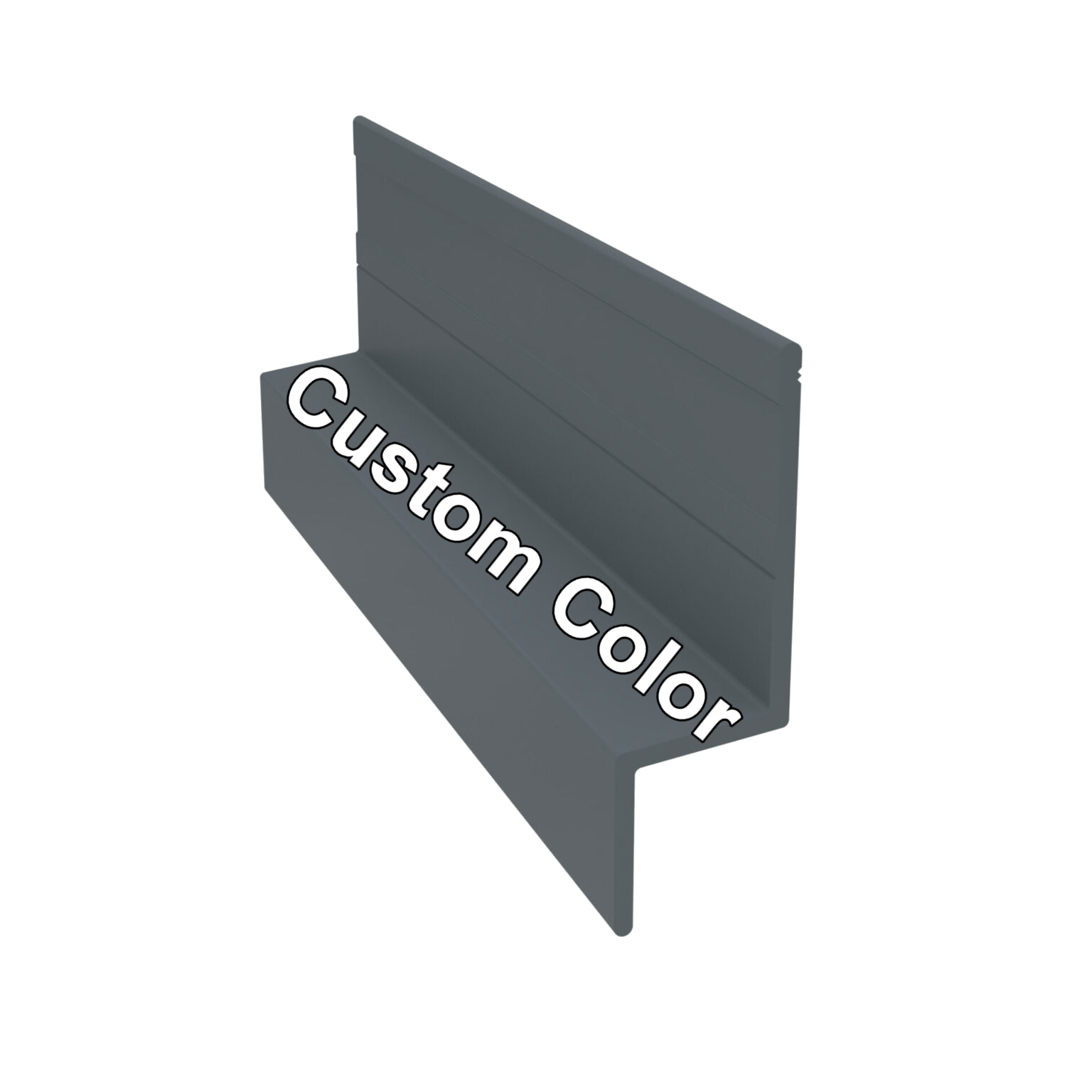

Custom Color options include tones from the James Hardie Dream Collection. $150 setup fee is applicable for custom colors.
