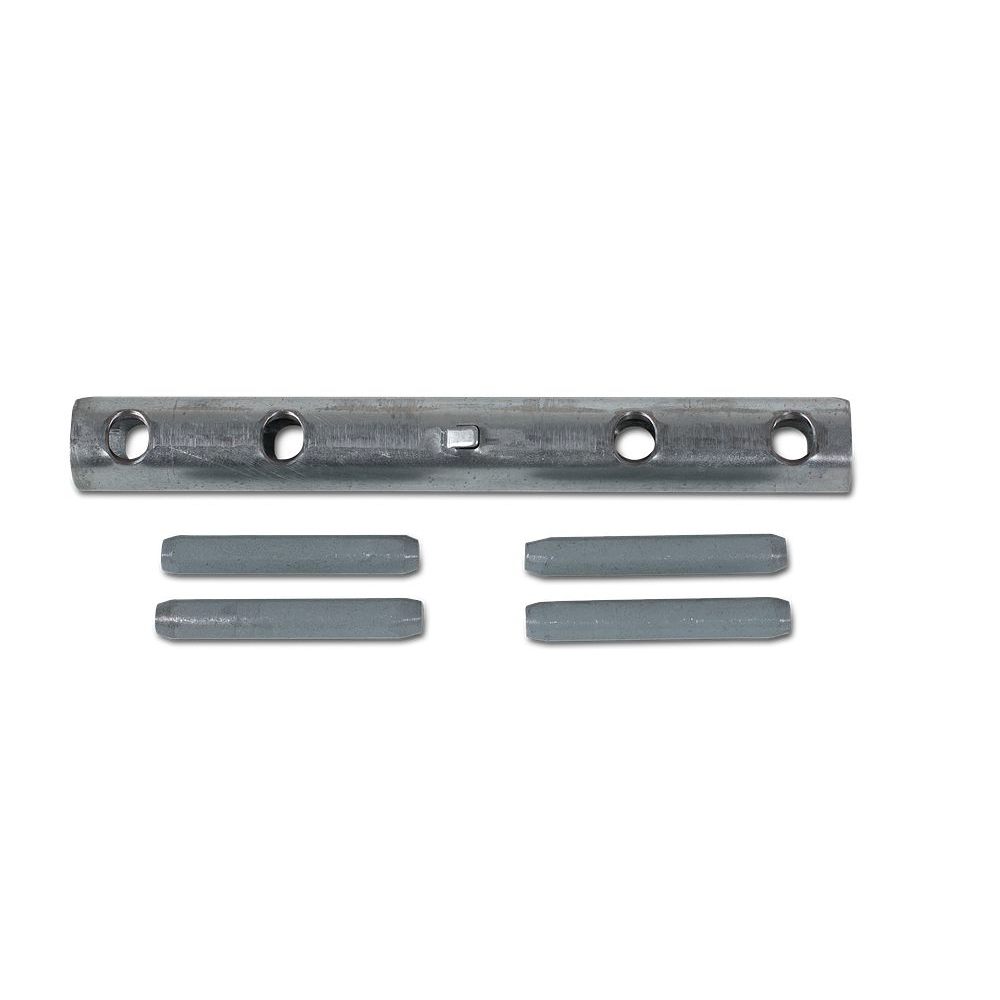

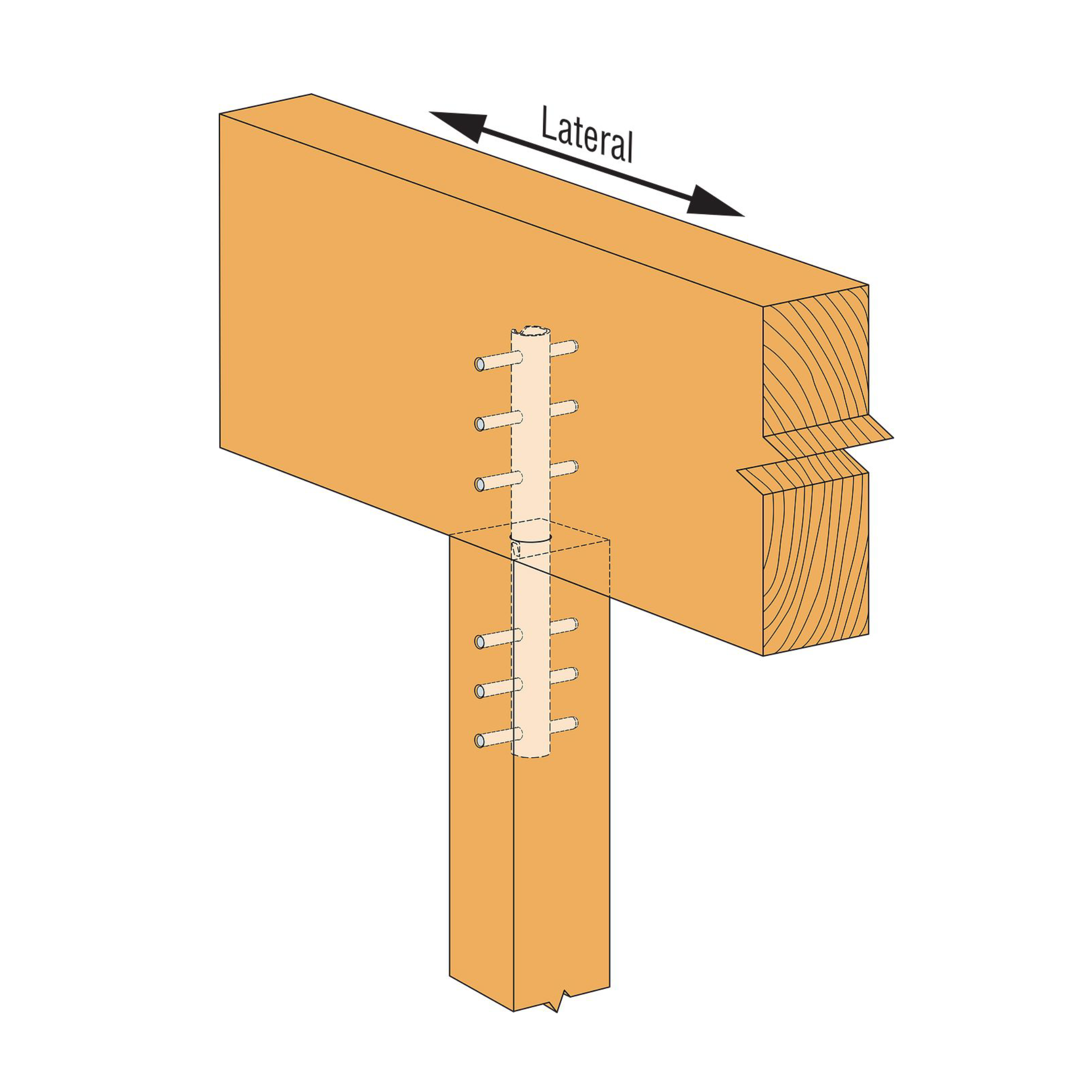

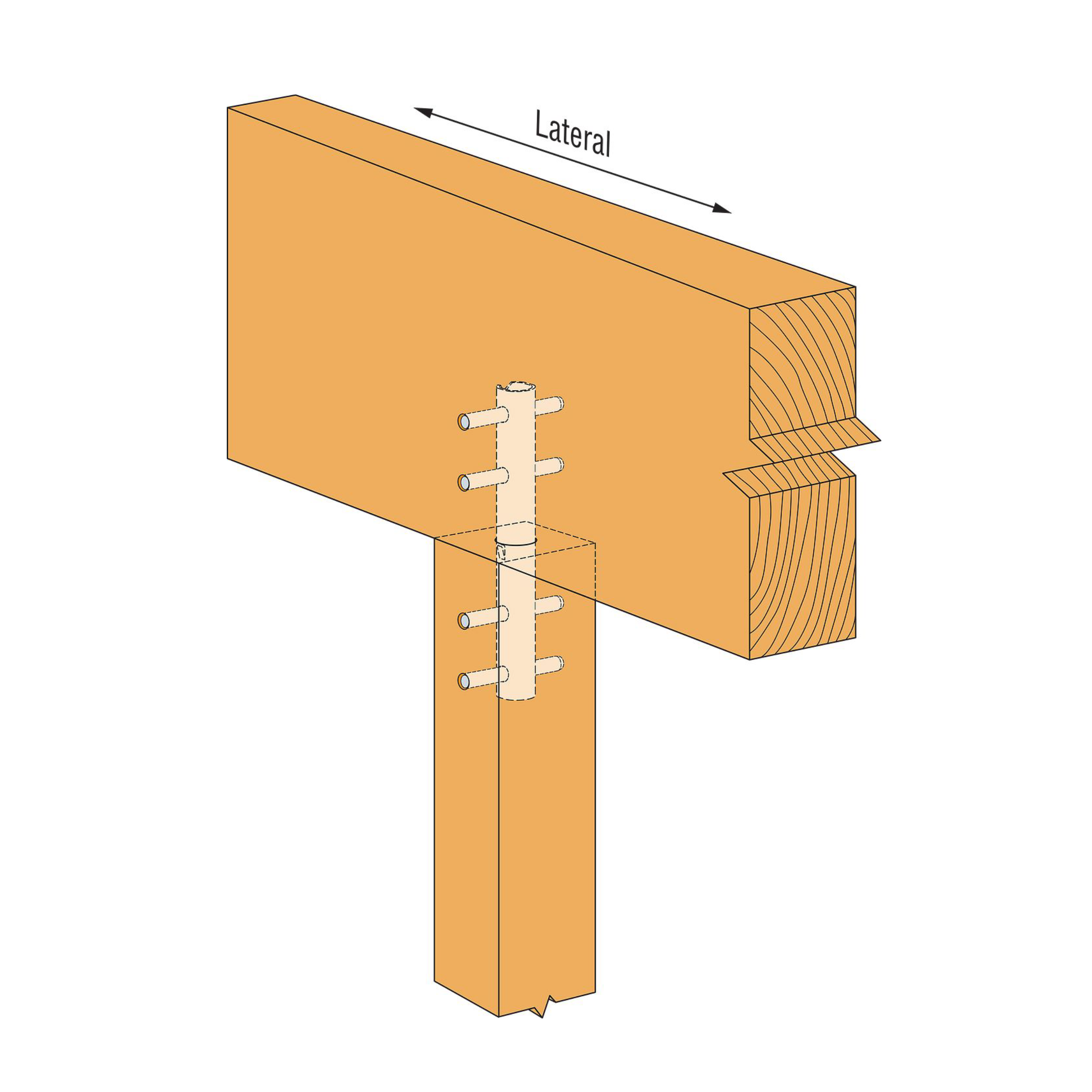

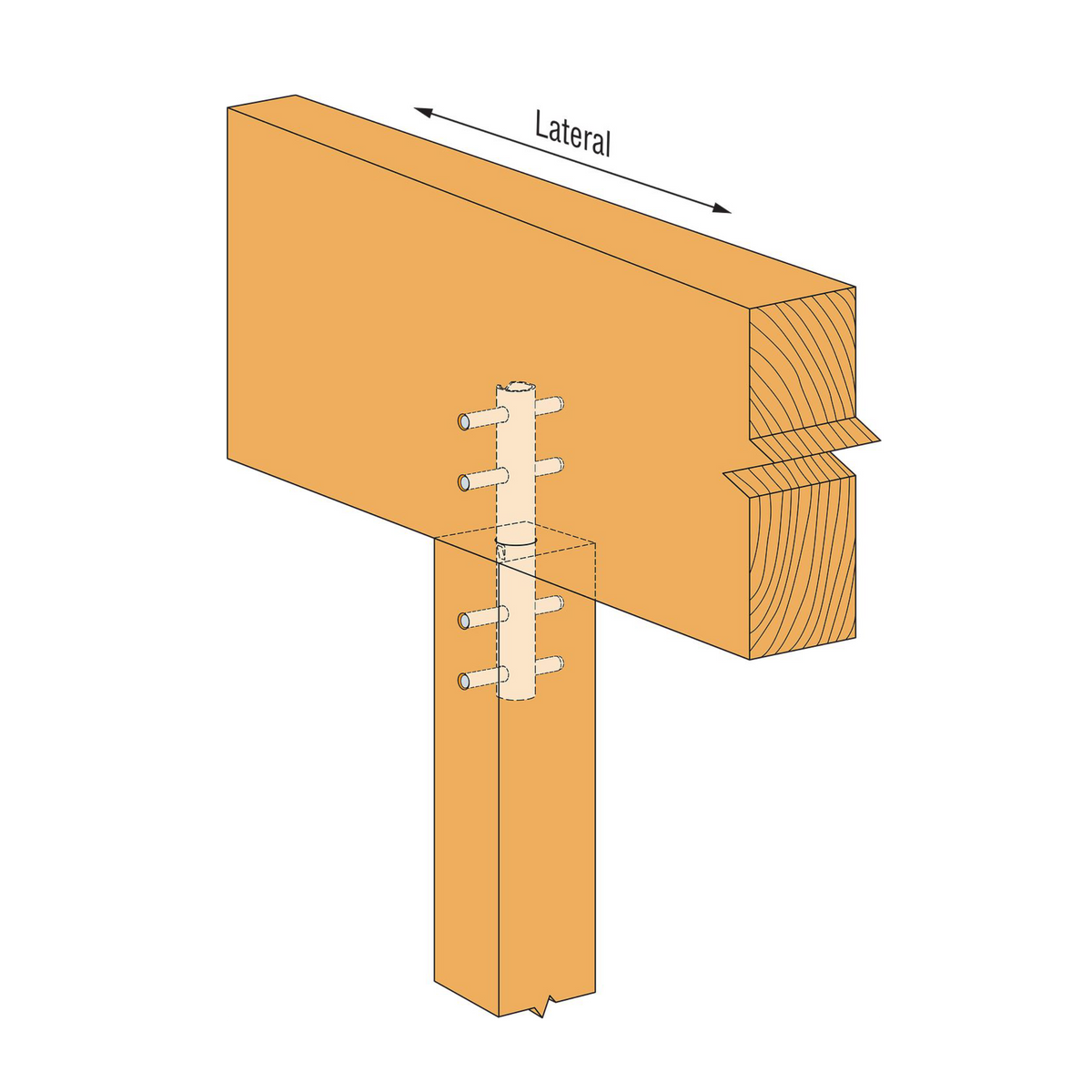

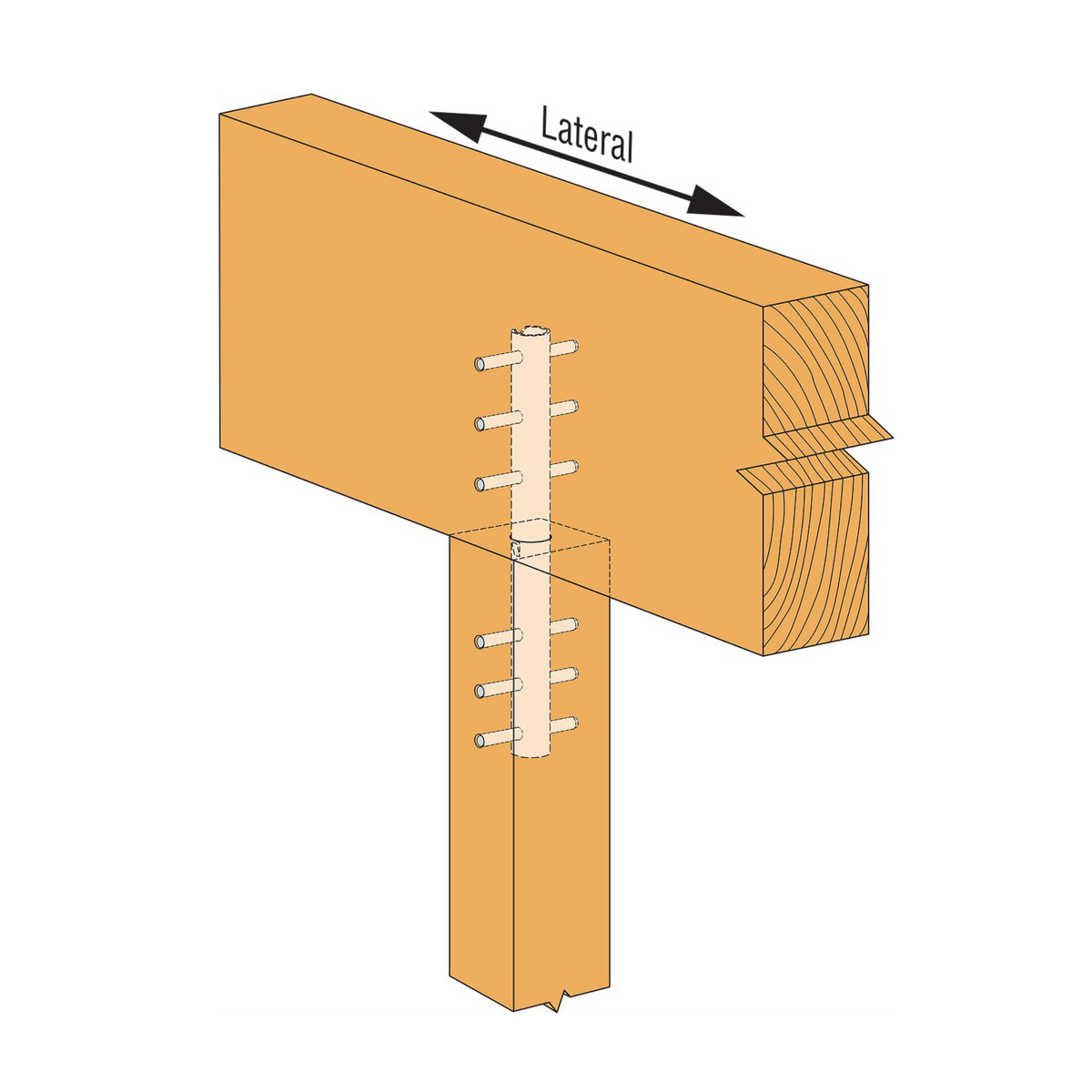

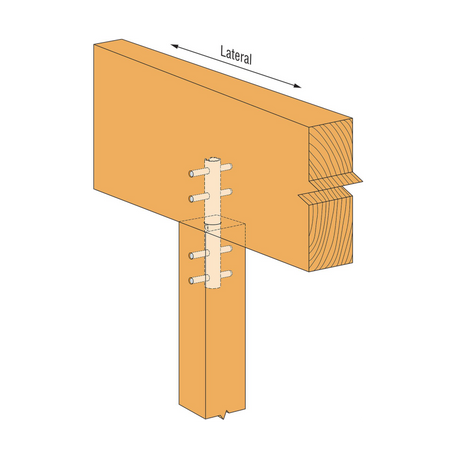

CBTZ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.

Key Features

• Flattened sides assist installer while using the CBTZ as a template

• Locator tabs provide proper dimensional layout

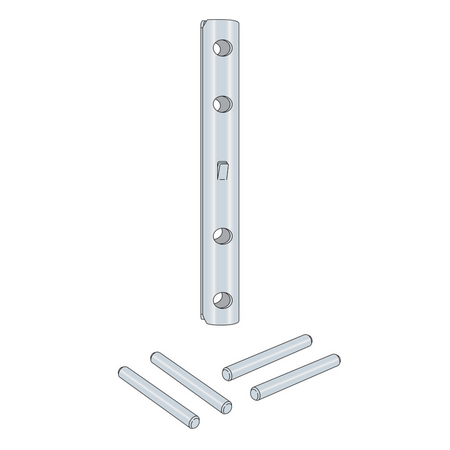

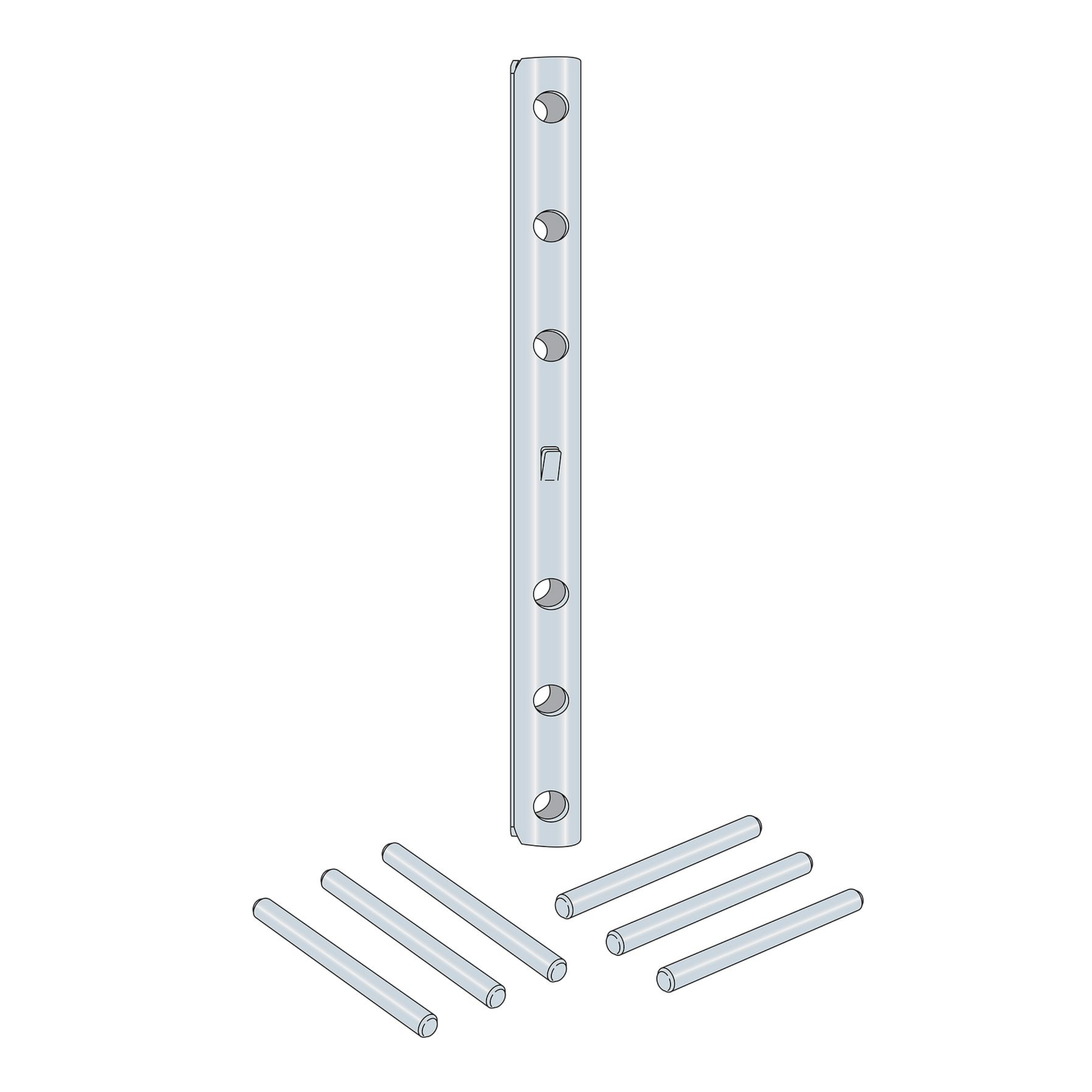

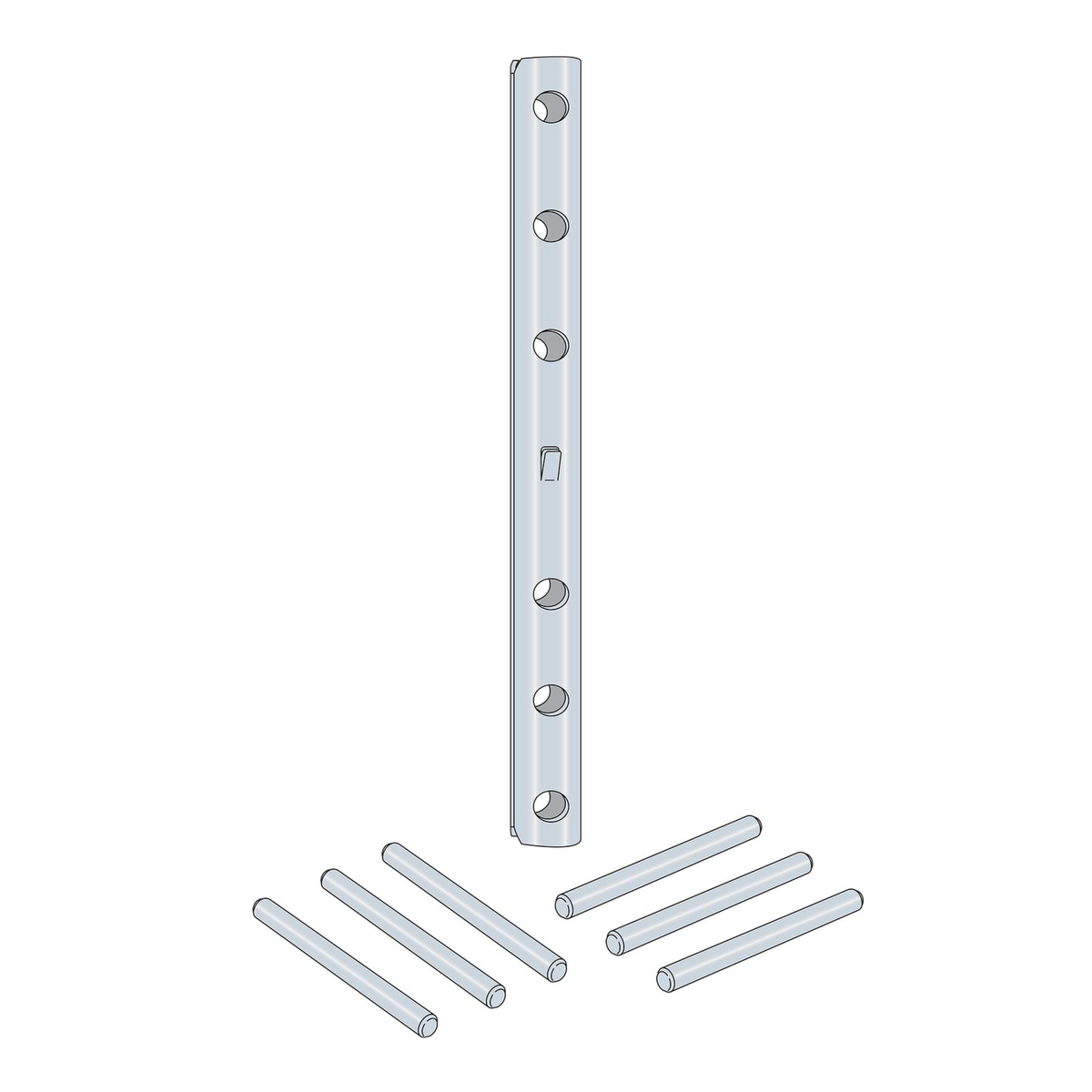

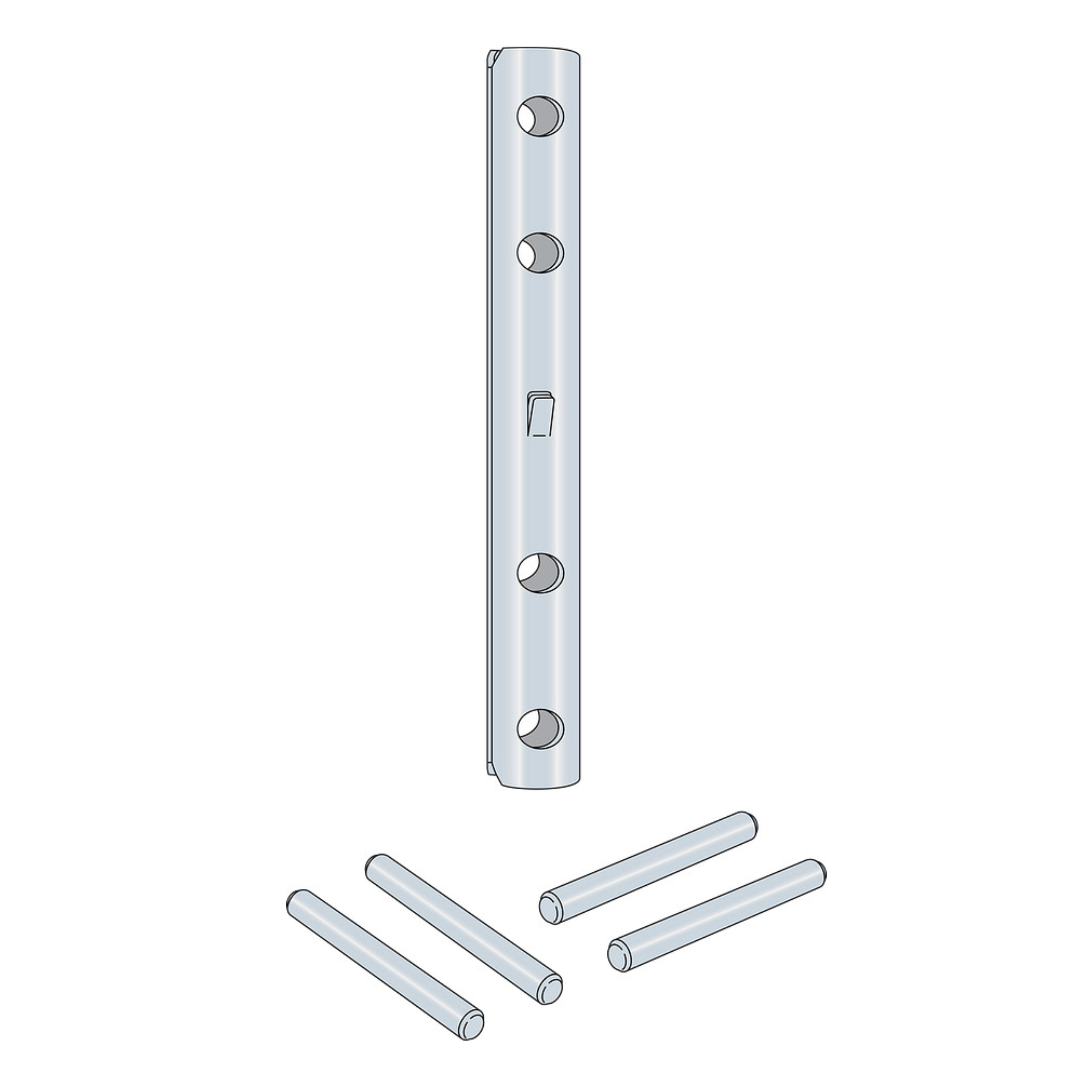

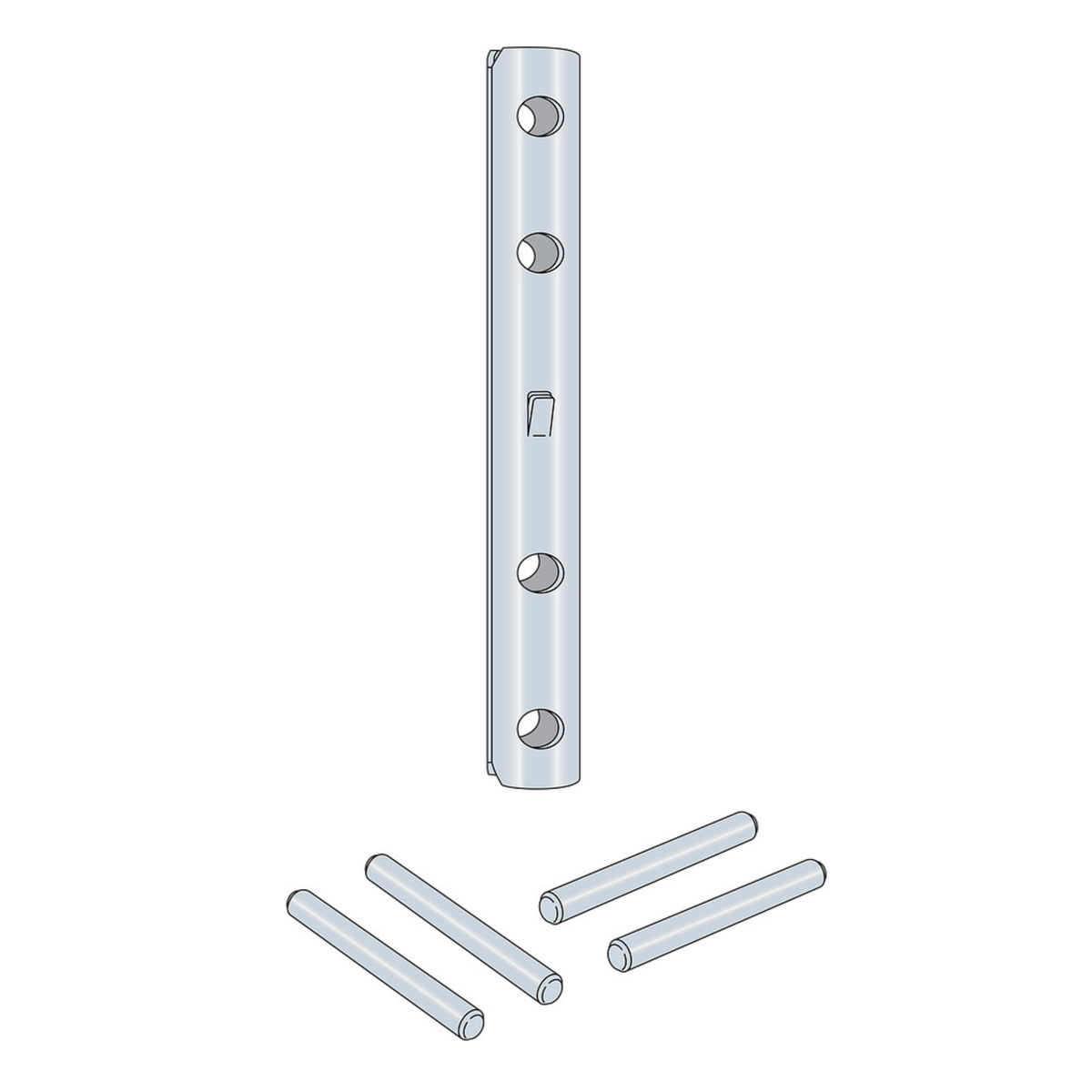

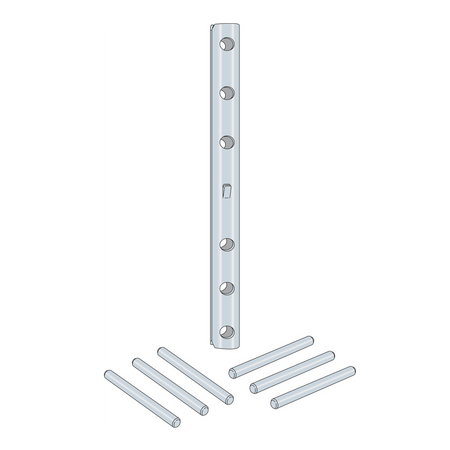

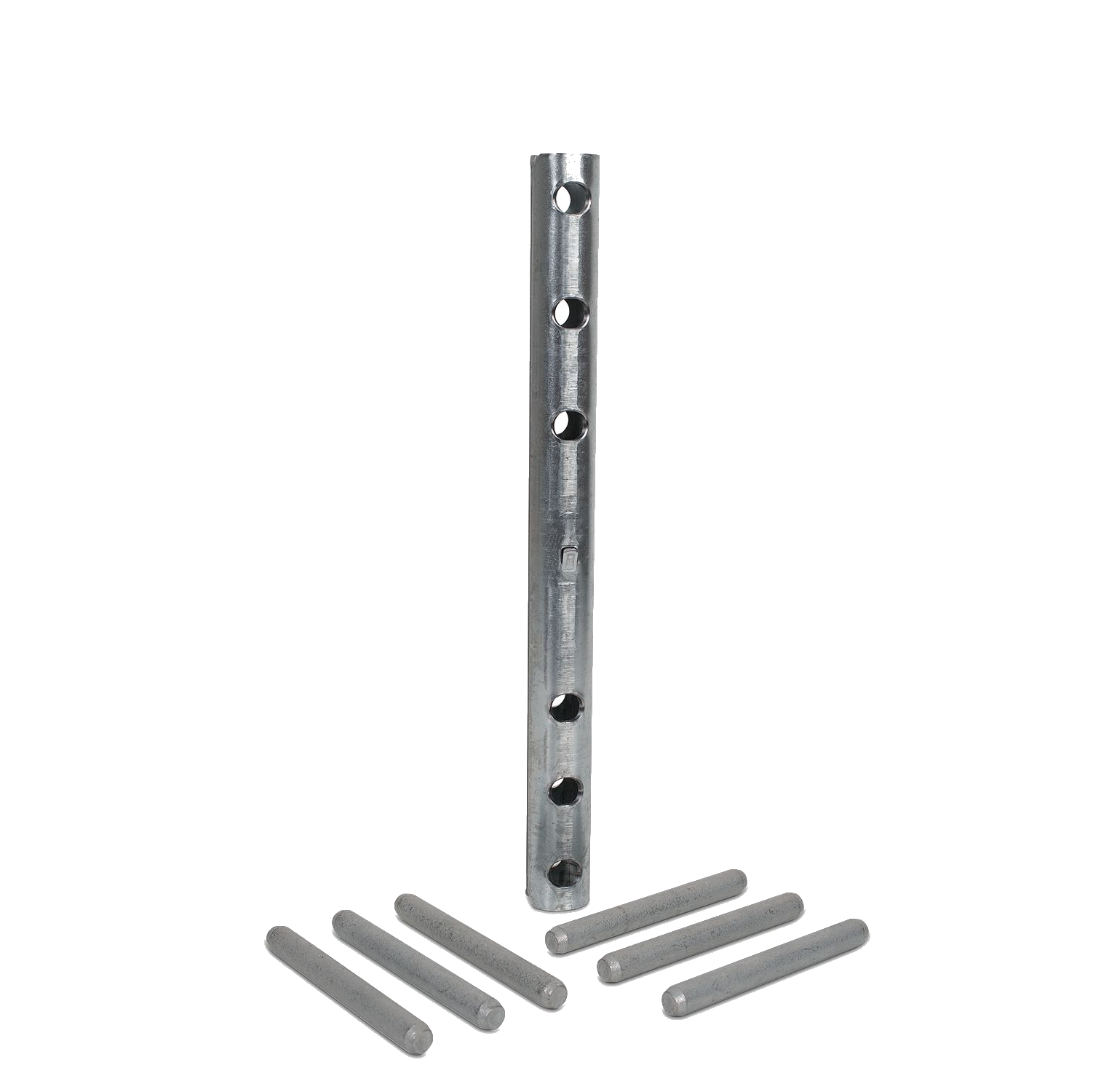

• Required dowel pins included

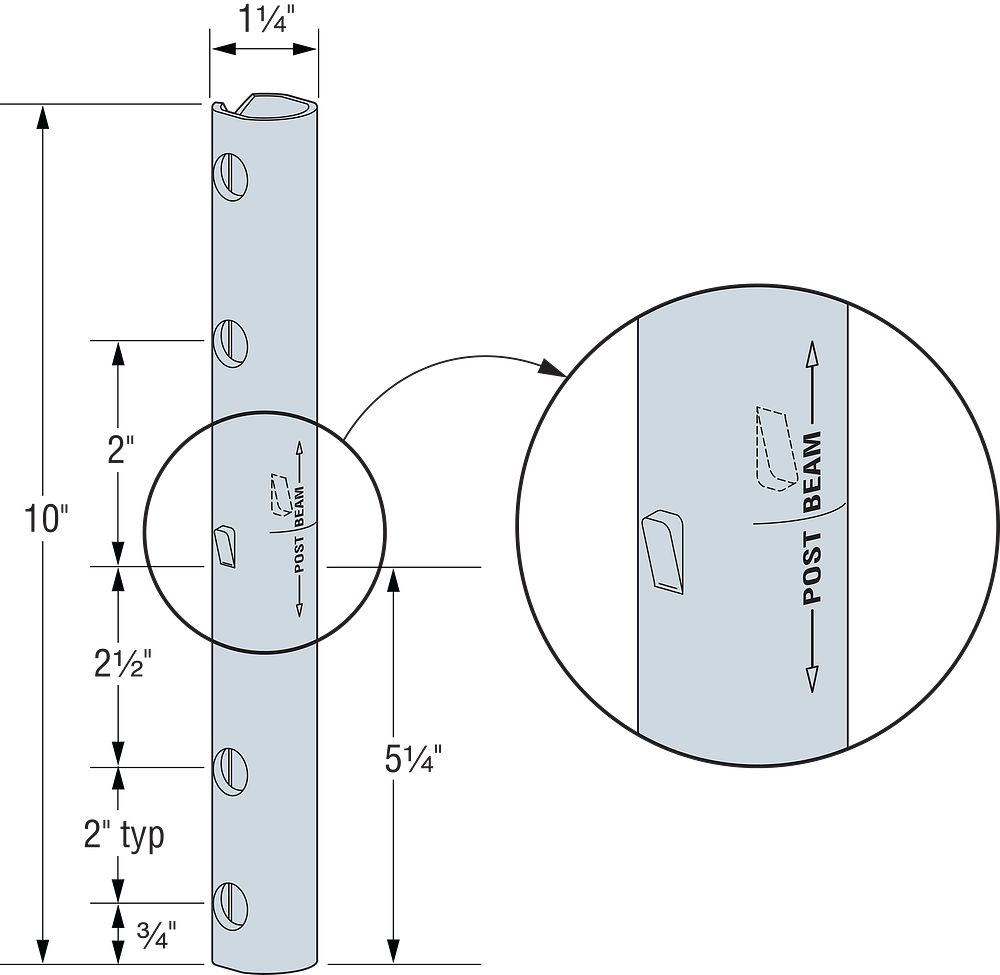

• Orientation markings distinguish which end installs into the post and which end goes into the beam


Material

• 12 gauge


Finish

• CBT — ZMAX® coating; the 1/2"-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55


Installation

• Use all specified fasteners; see General Notes

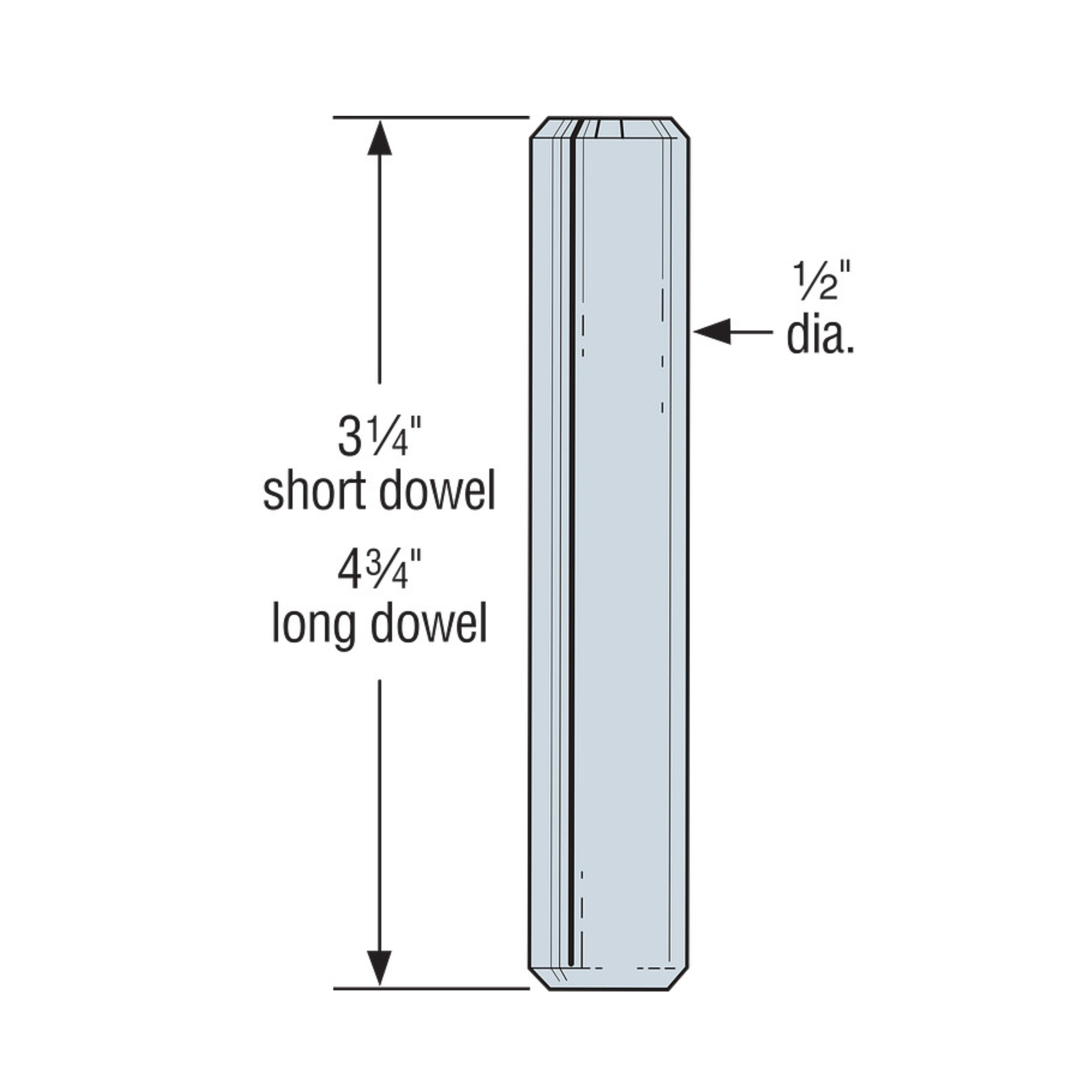

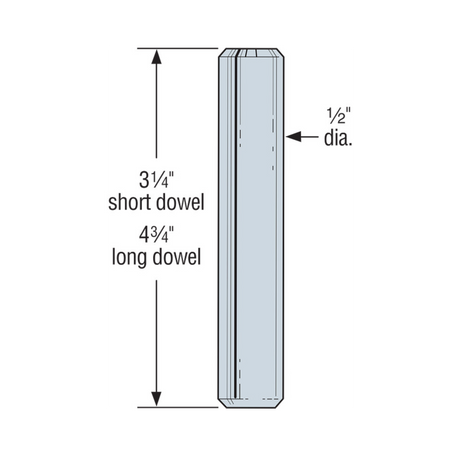

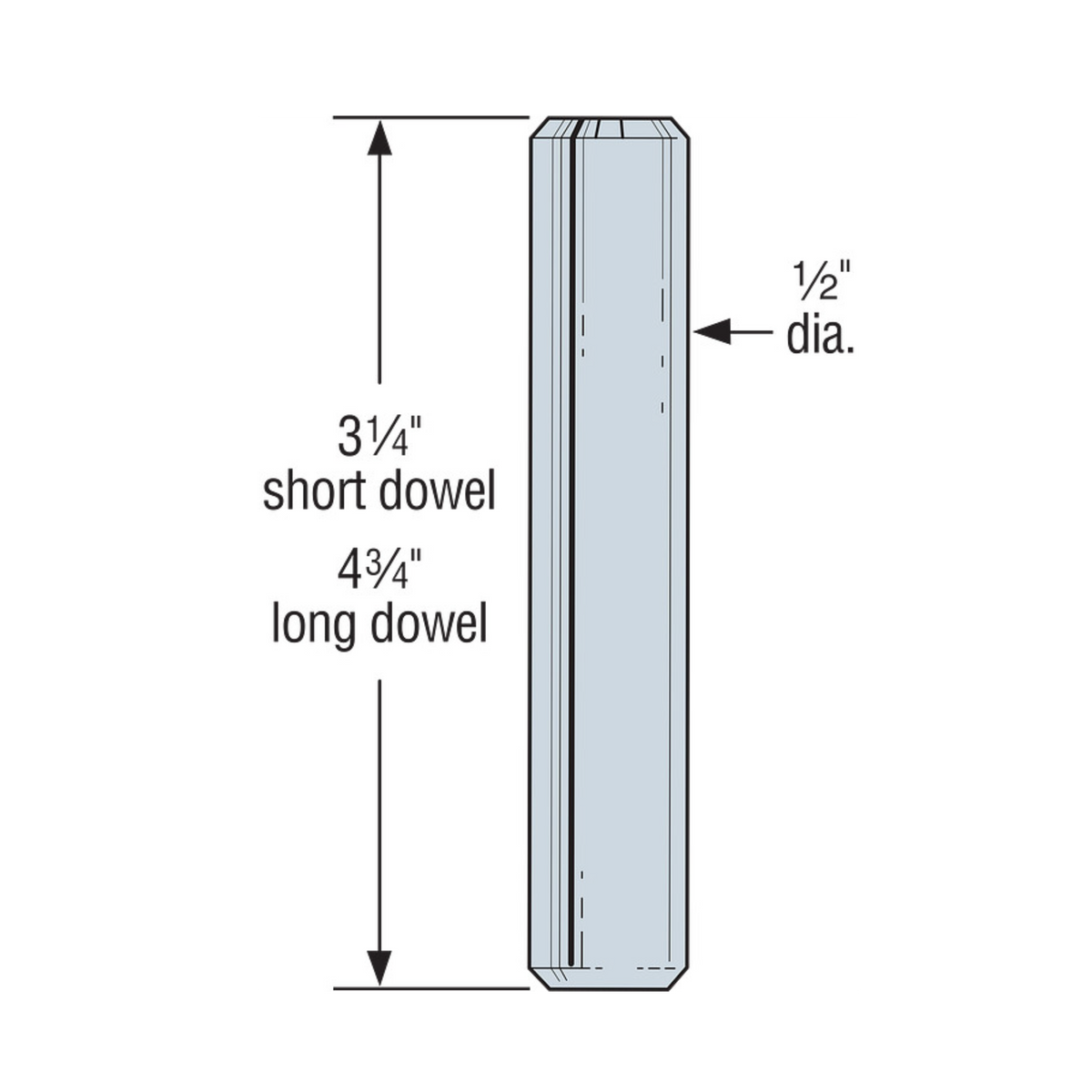

• 1/2" dowels included

• CBT2Z requires a minimum 6"-deep nominal beam

• For step-by-step installation instructions, see technical bulletin CBTZ Concealed
• Beam Tie Installation Instructions (T-C-CBTZINS) or view our video in the image gallery
