Simpson Strong-Tie HDB Bolted Holdown
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.

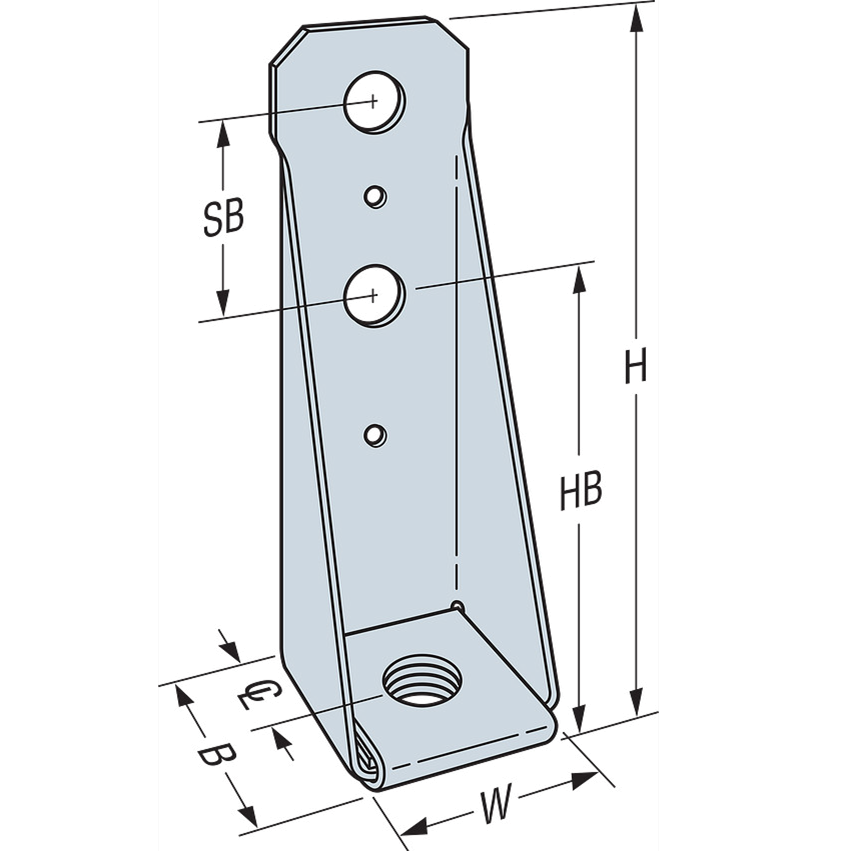

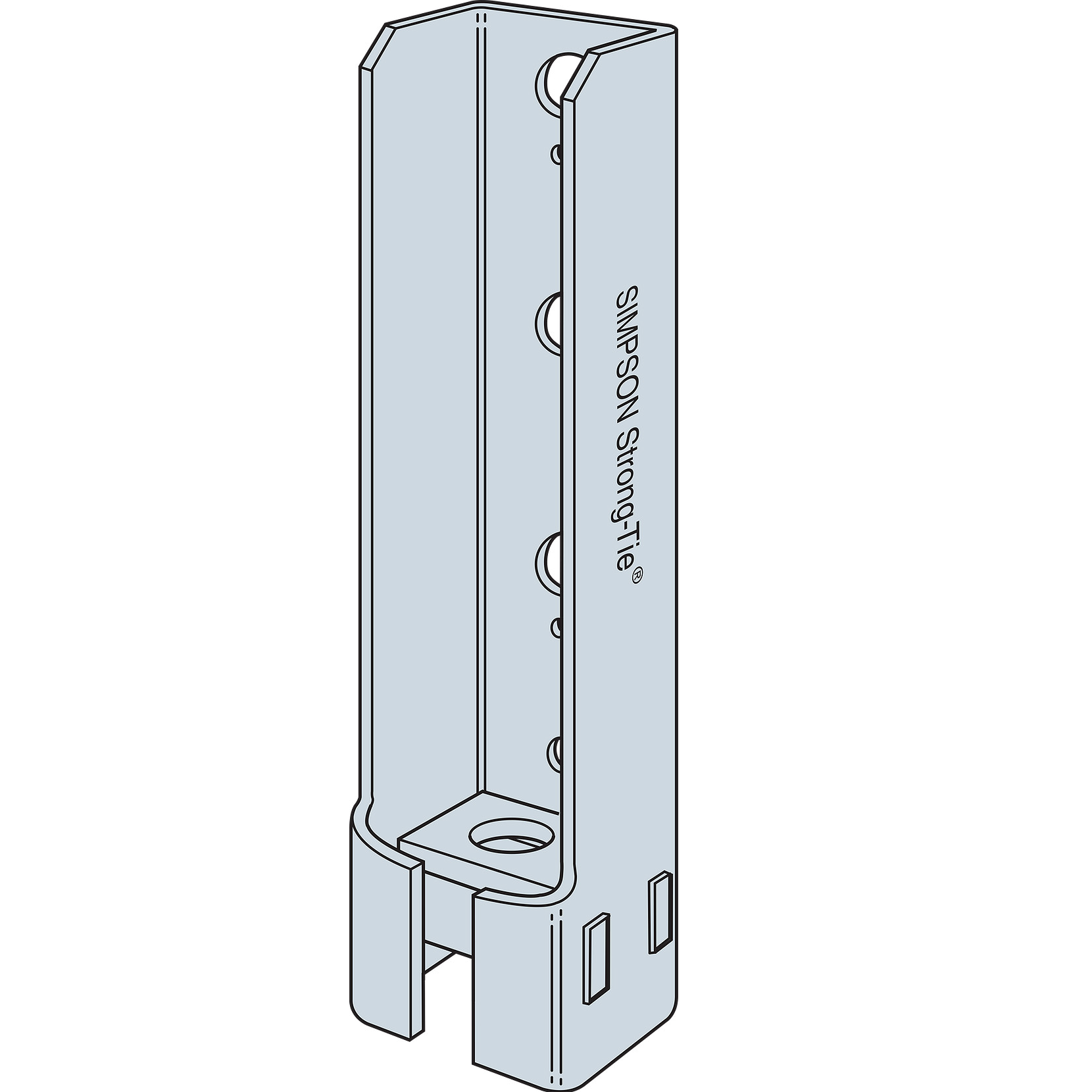

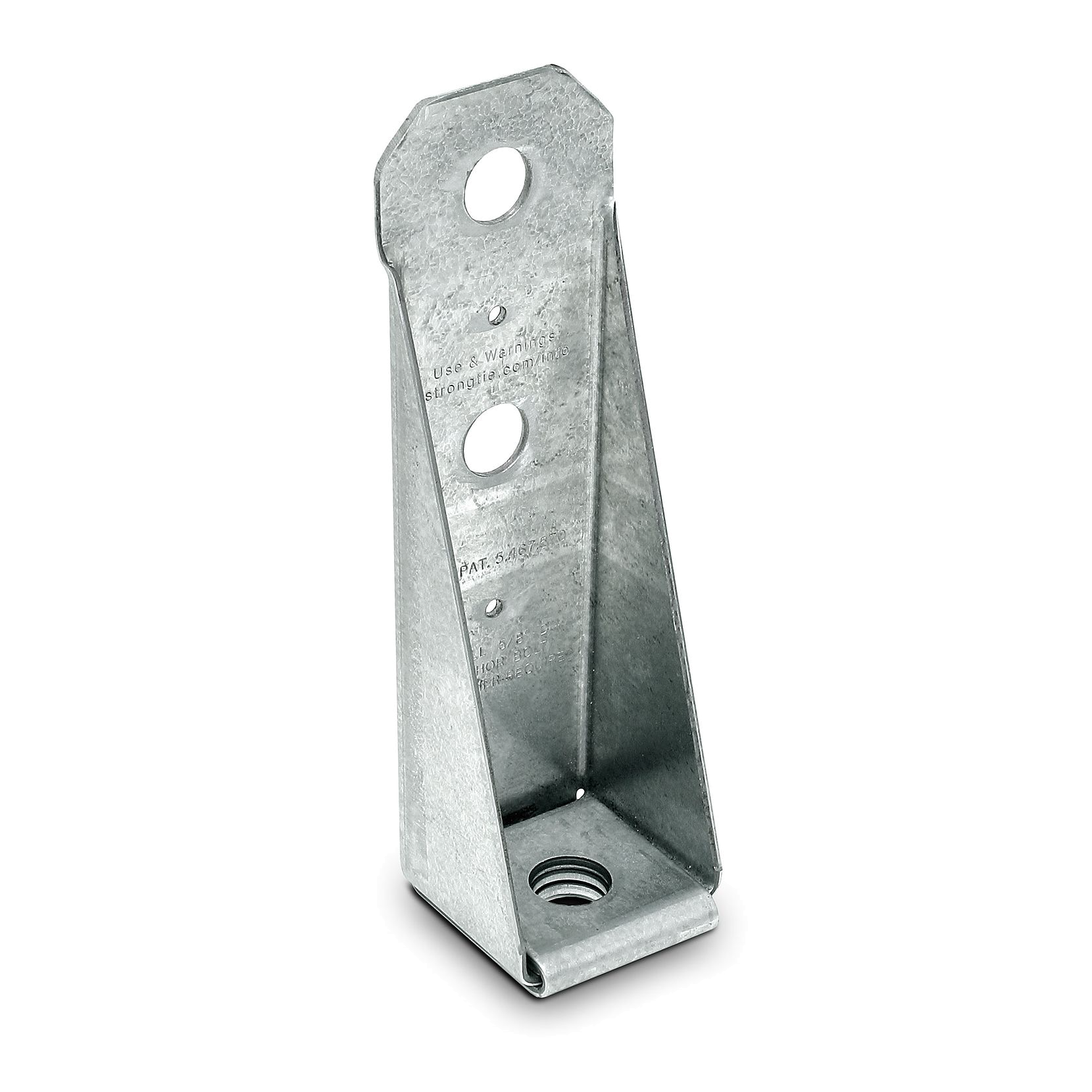

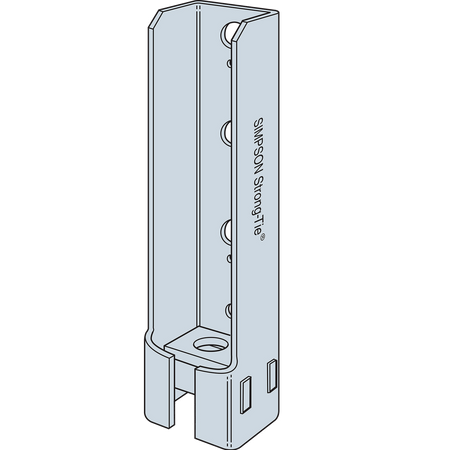

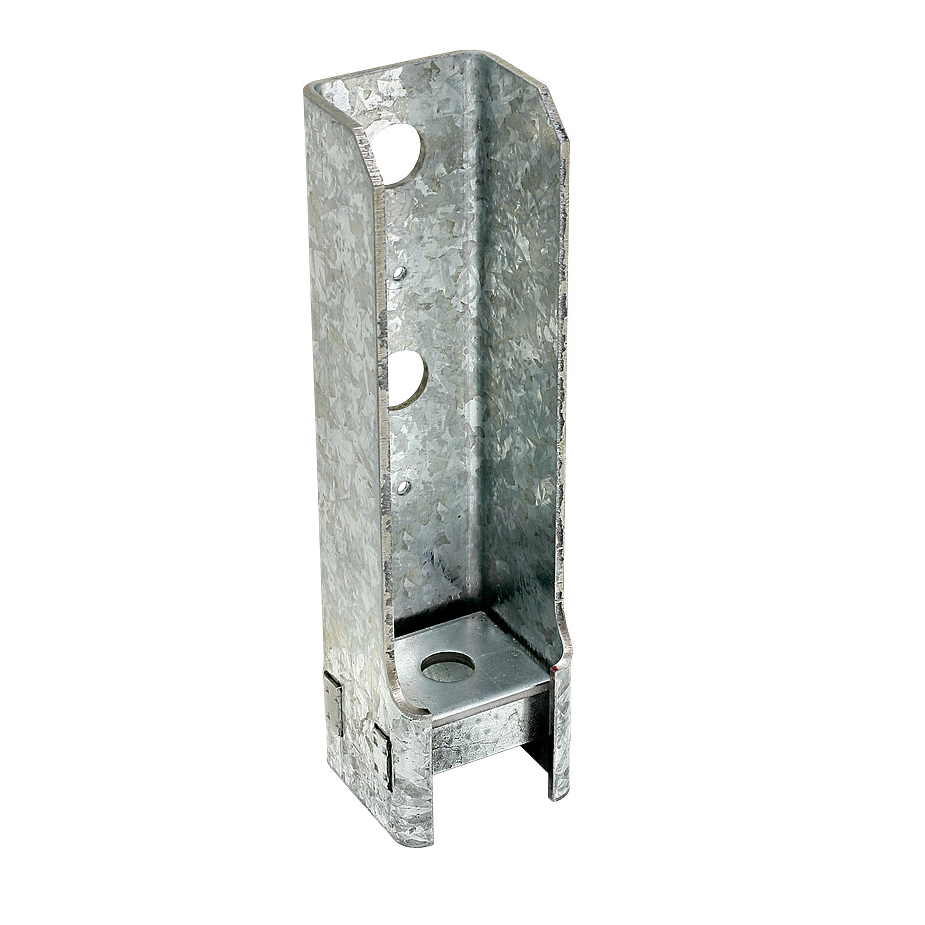

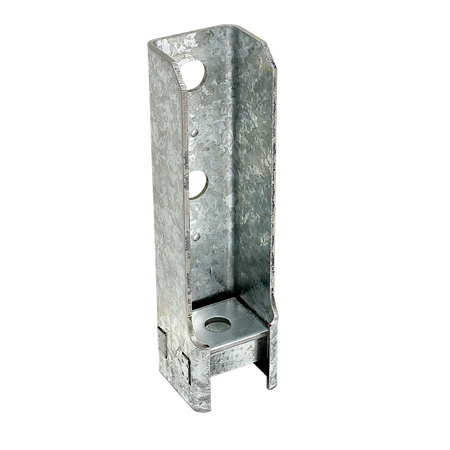

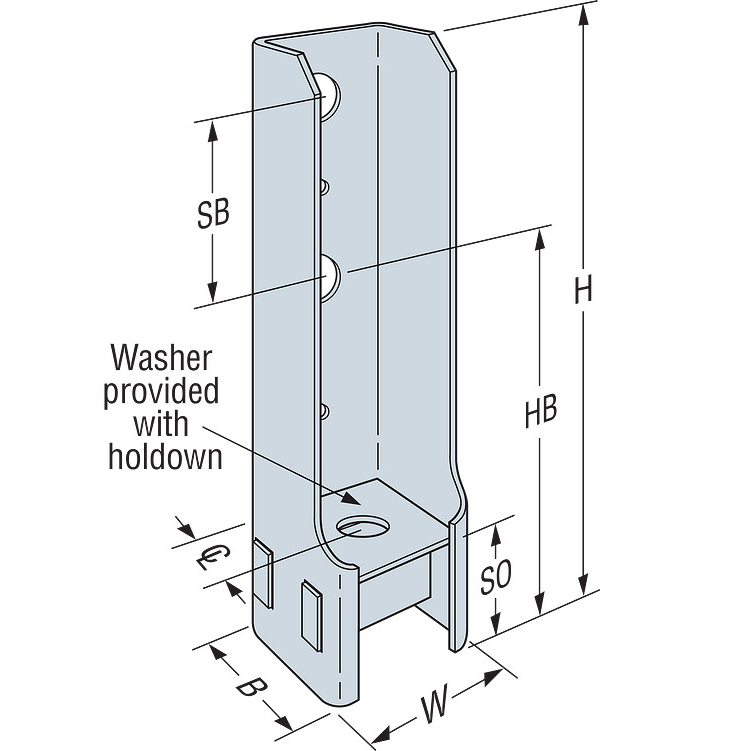

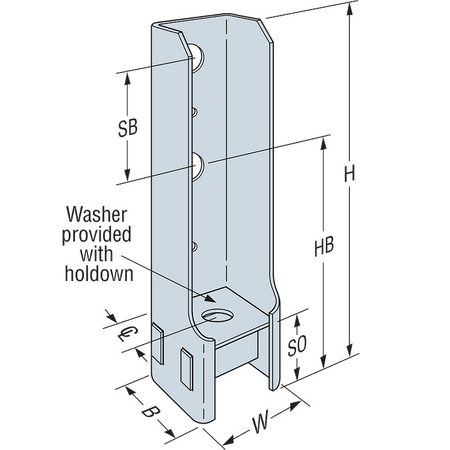

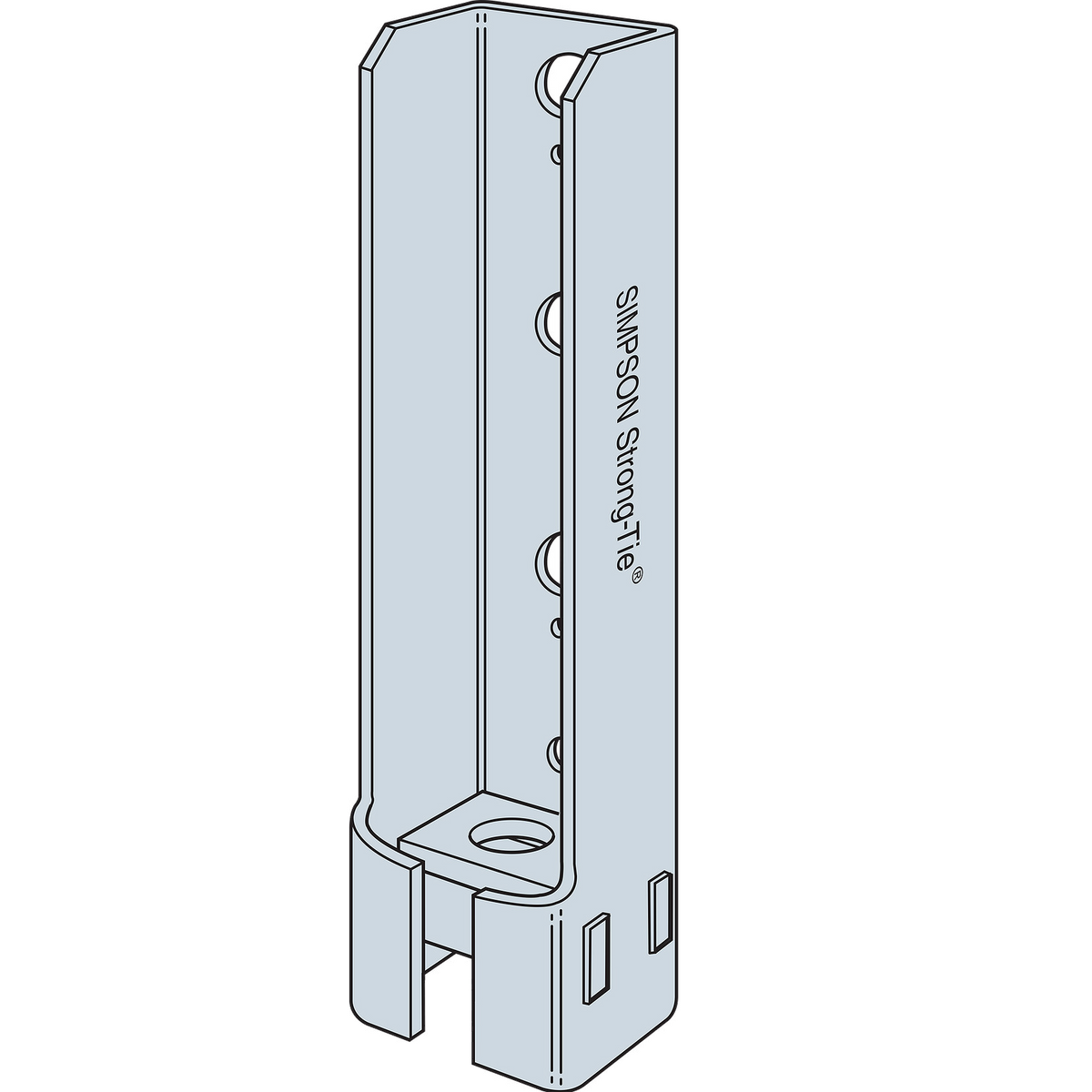

Simpson Strong-Tie HDB Bolted Holdown

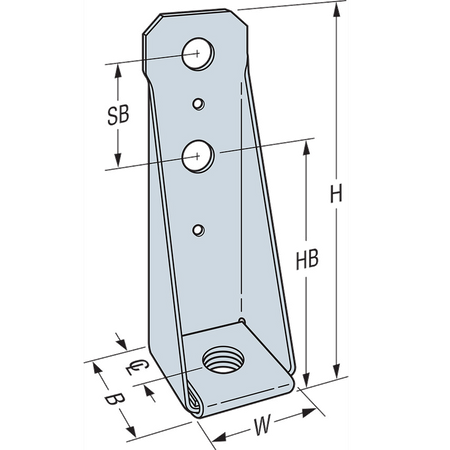

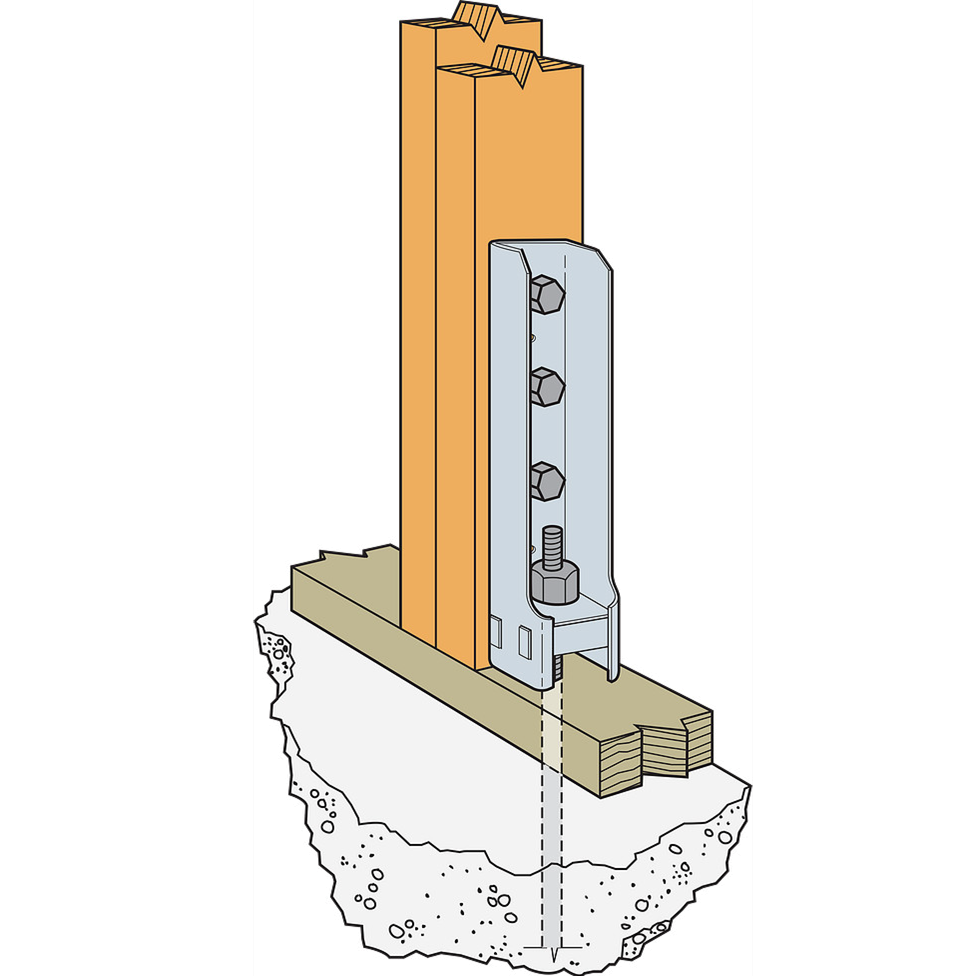

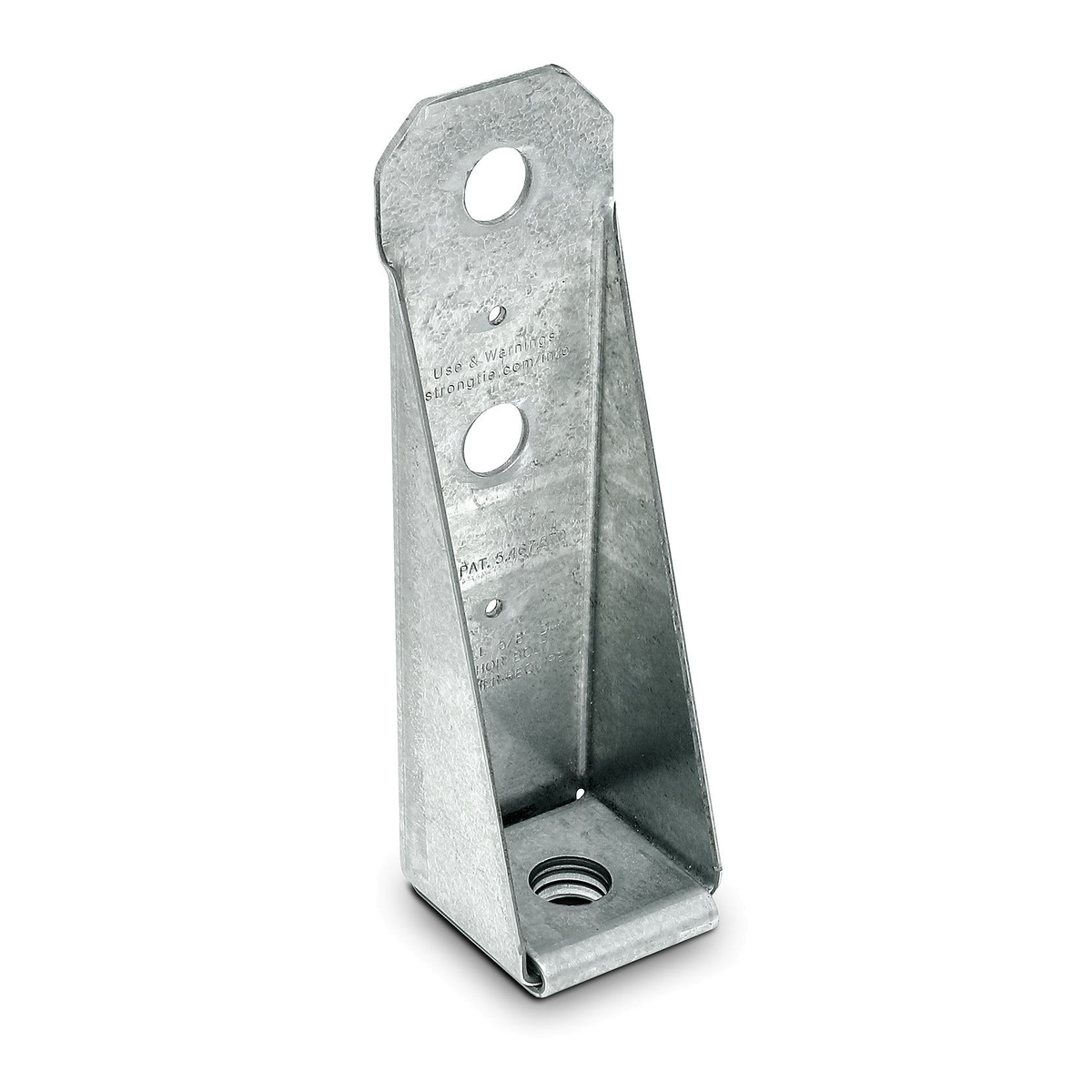

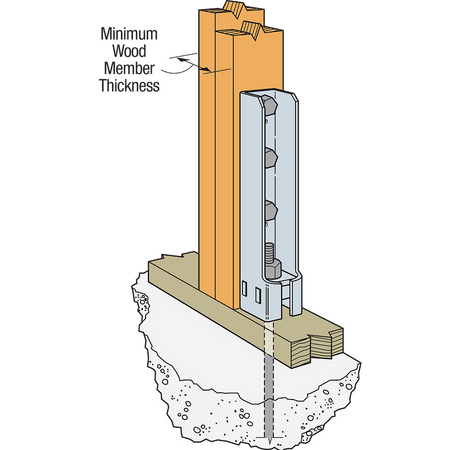

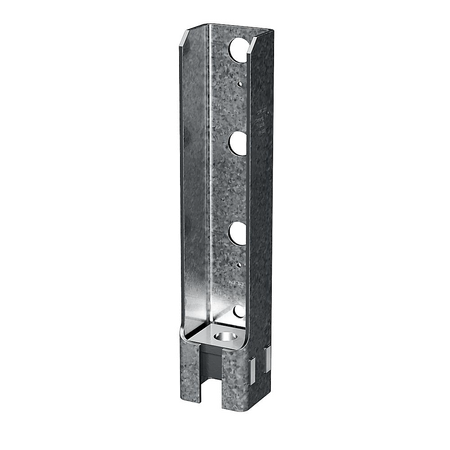

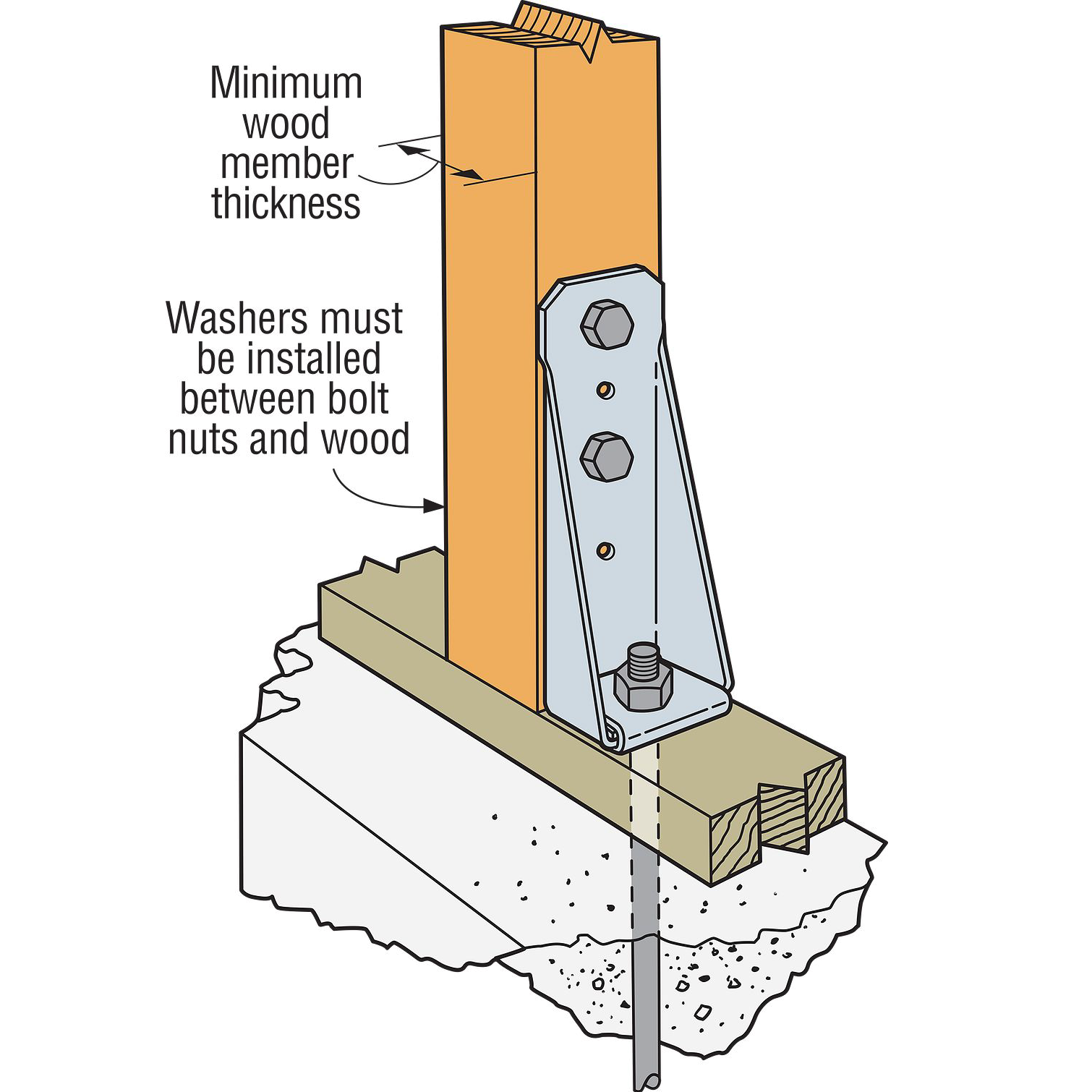

The HDB is designed to provide loads for intermediate-load-range shearwalls, braced-wall panels and lateral applications in wood construction. This bolted holdown is installed with bolts into studs or columns and offers low-deflection performance for a range of load requirements. The HDB is suitable for back-to-back applications where eccentricity is a concern.
Key Features

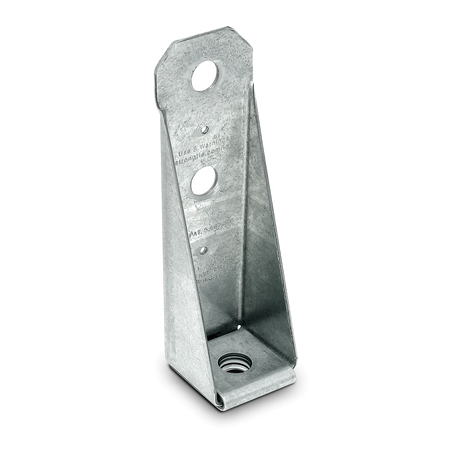

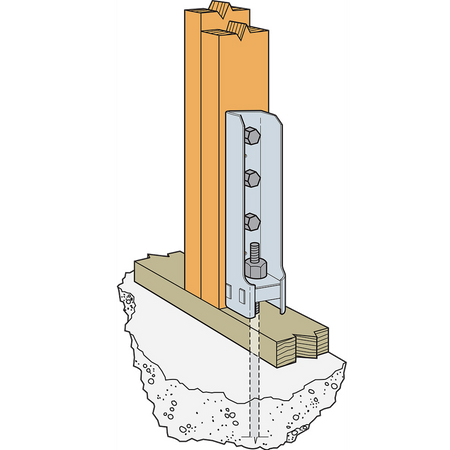

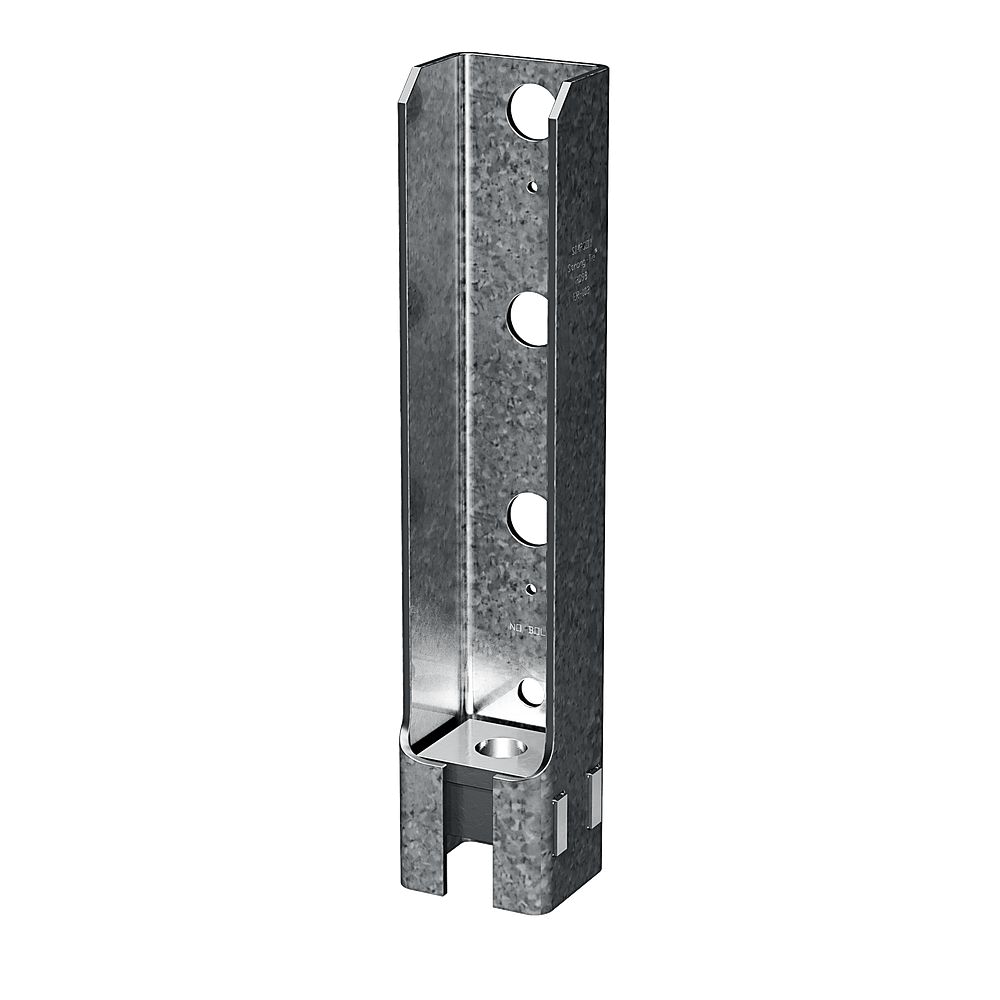

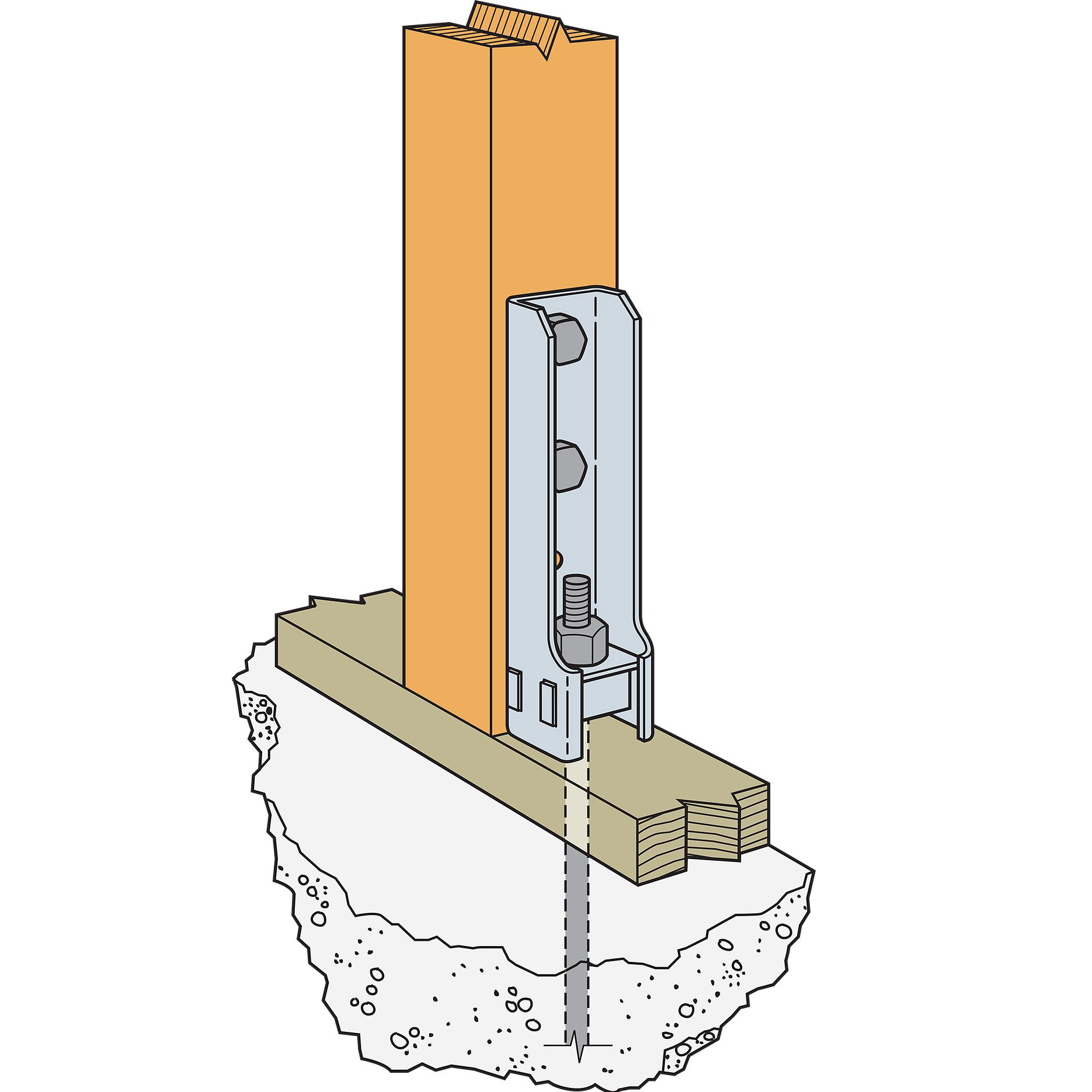

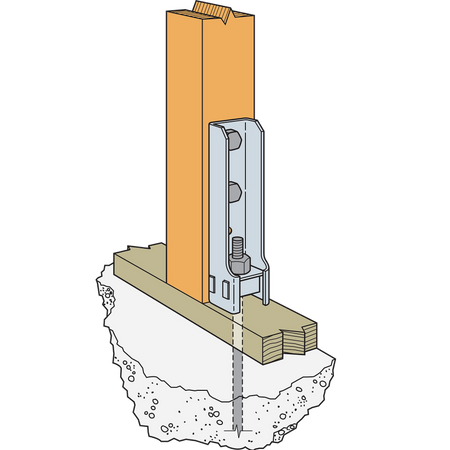

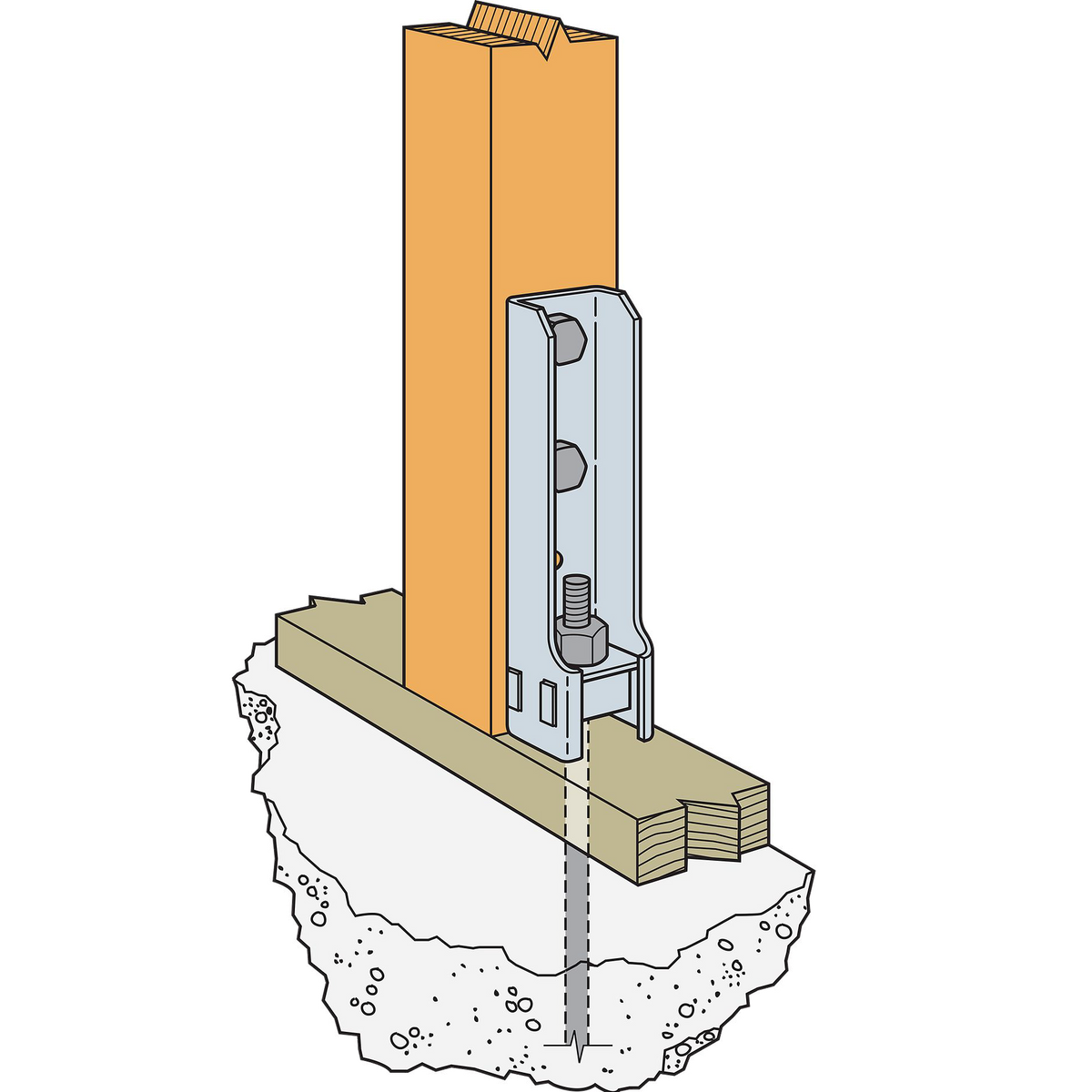

- Installed after the placement of concrete and framing is in place
- Can be installed directly on the sill plate or raised above it

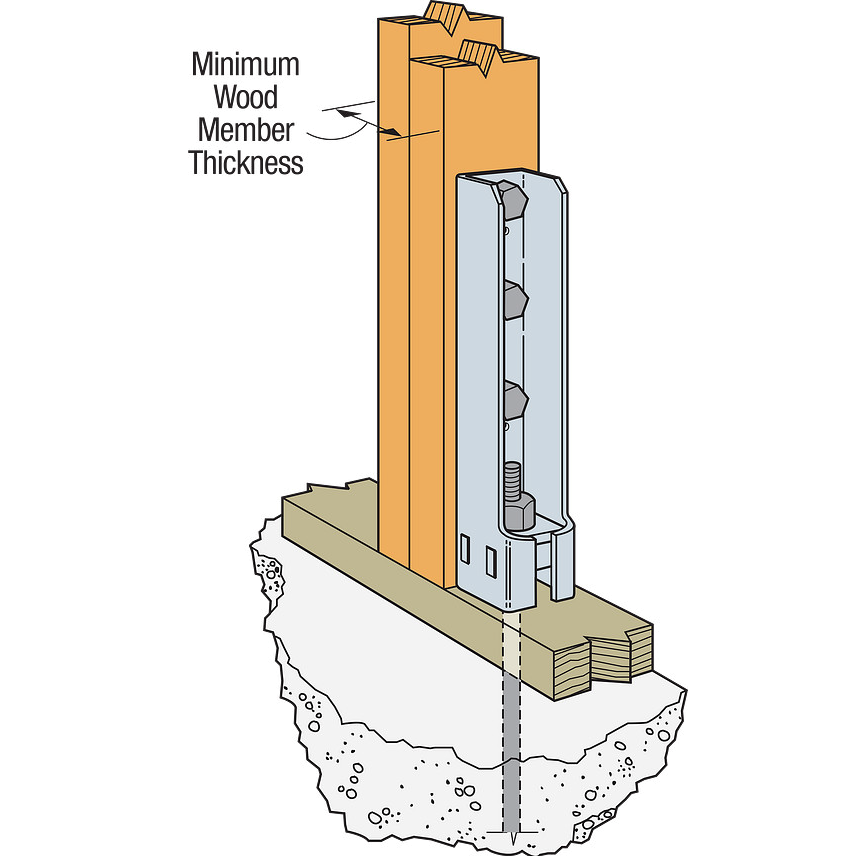

- Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
Finish
- Galvanized or HDG

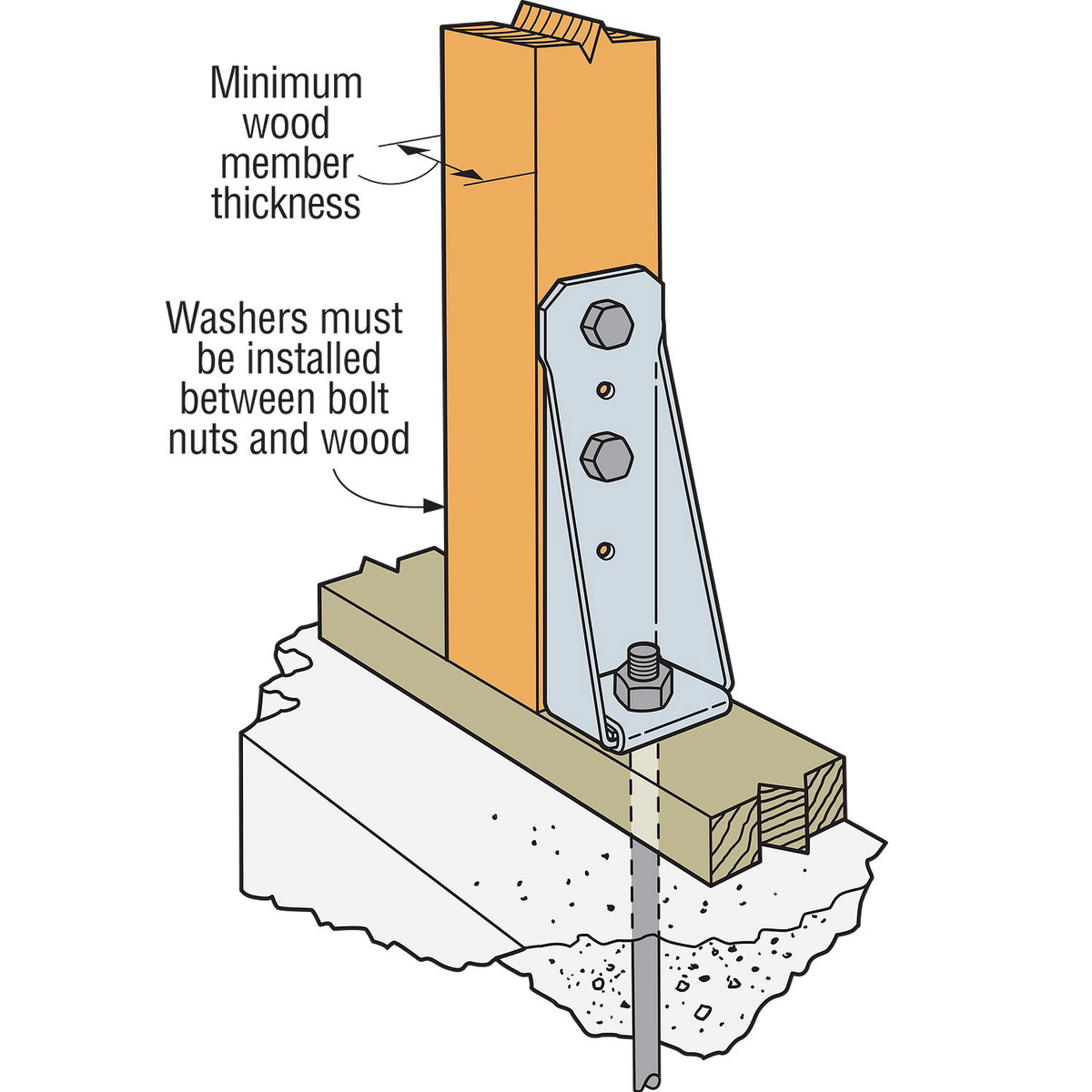

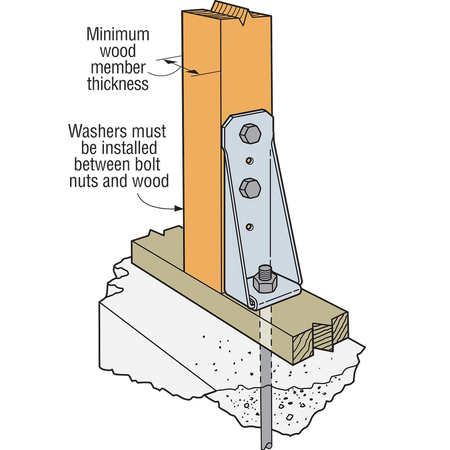

To achieve published loads, machine bolts shall be installed with the nut on the opposite side of the holdown. If this orientation is reversed, the designer shall reduce the allowable loads shown per NDS requirements when bolt threads are in the shear plane.
All references to bolts are for structural quality through bolts (not lag screw or carriage bolts) equal to or better than ASTM A307, Grade A.
