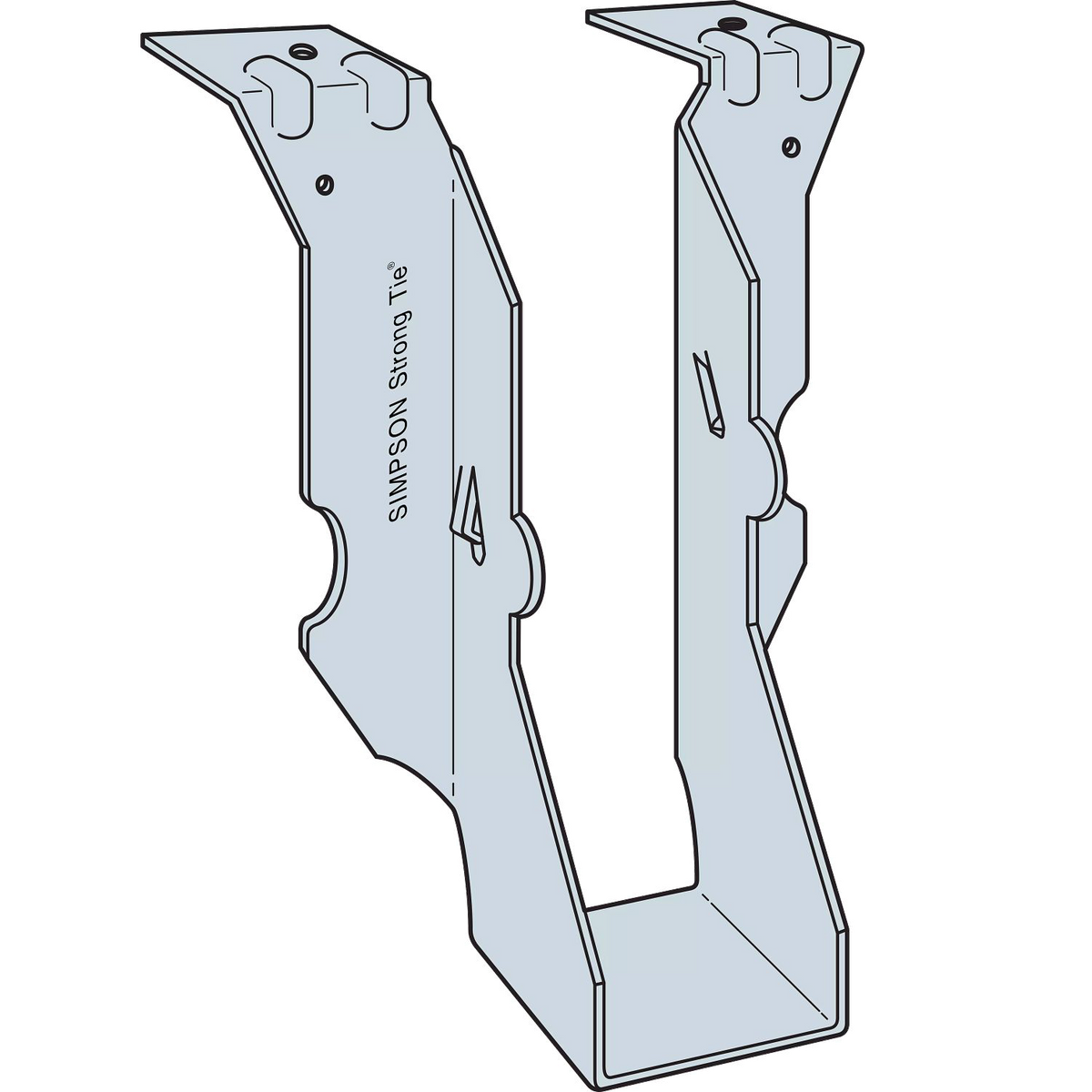

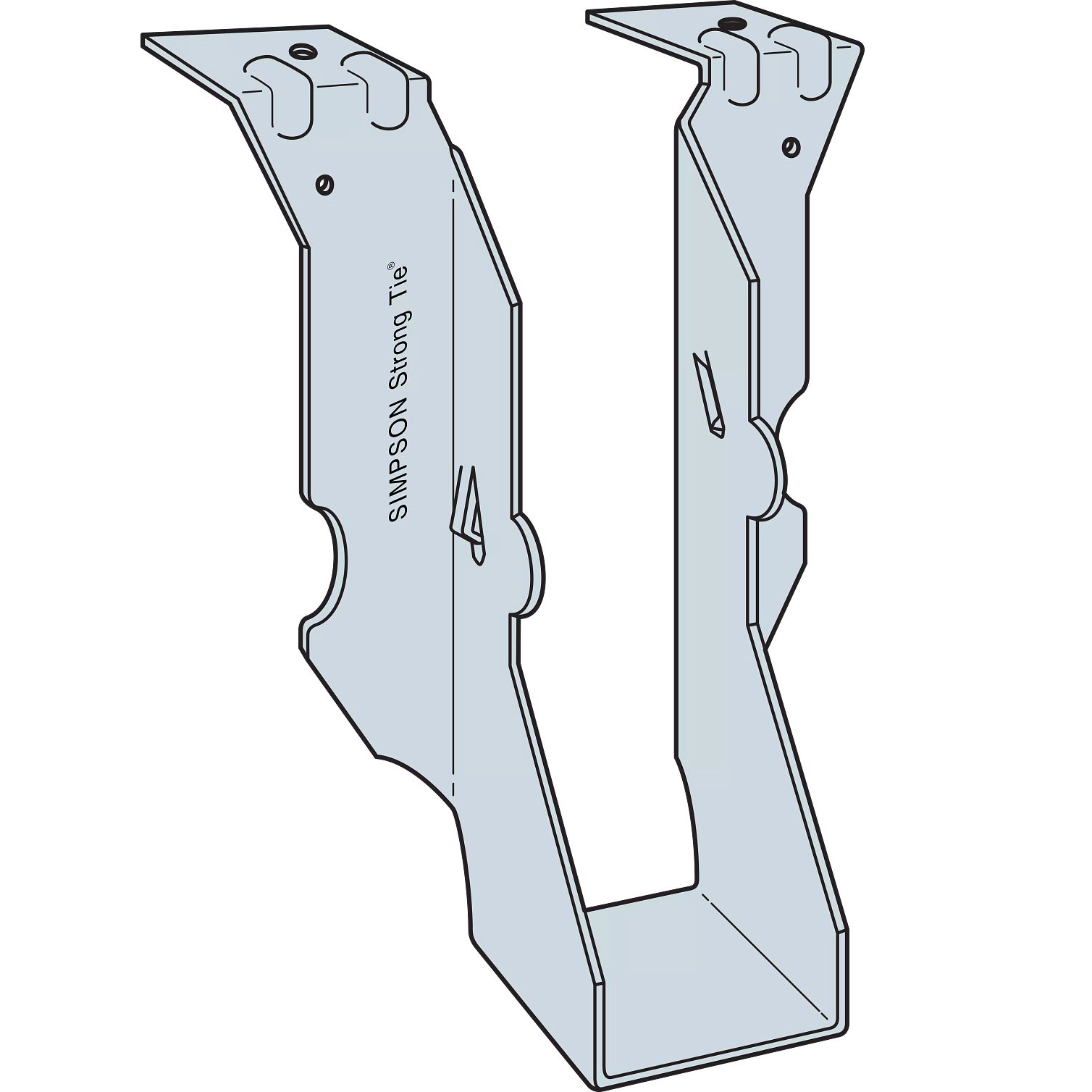

Simpson Strong-Tie JB Junior Bent Hanger

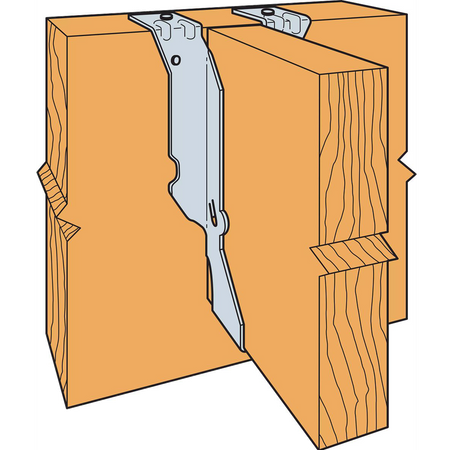

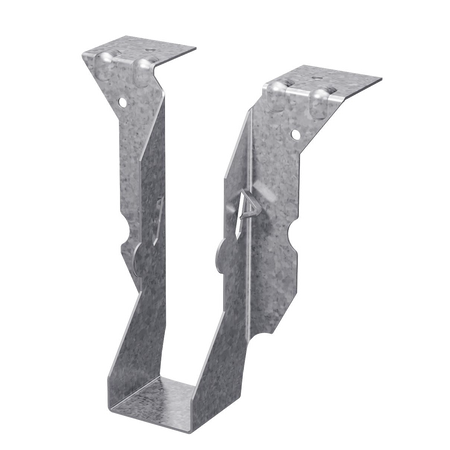

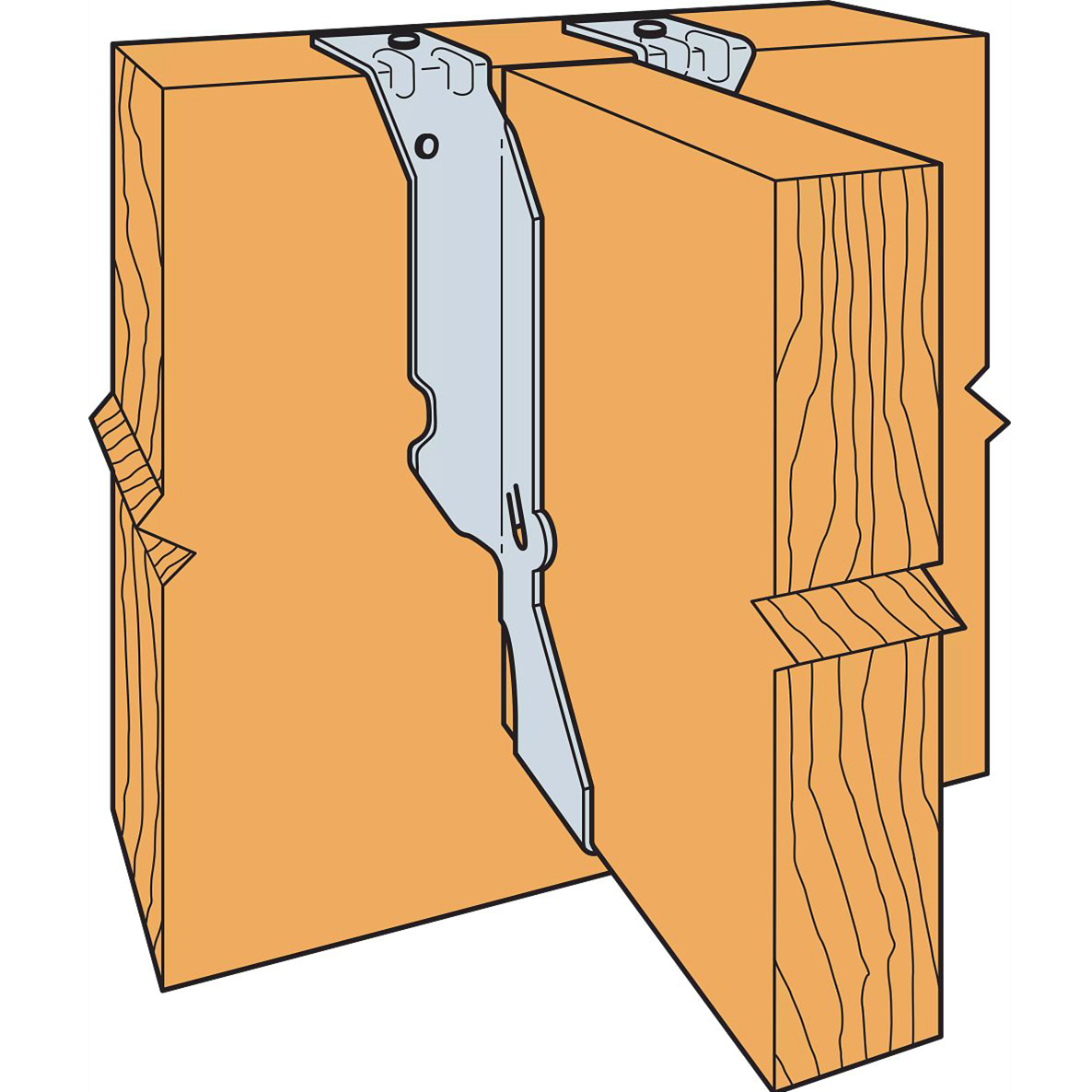

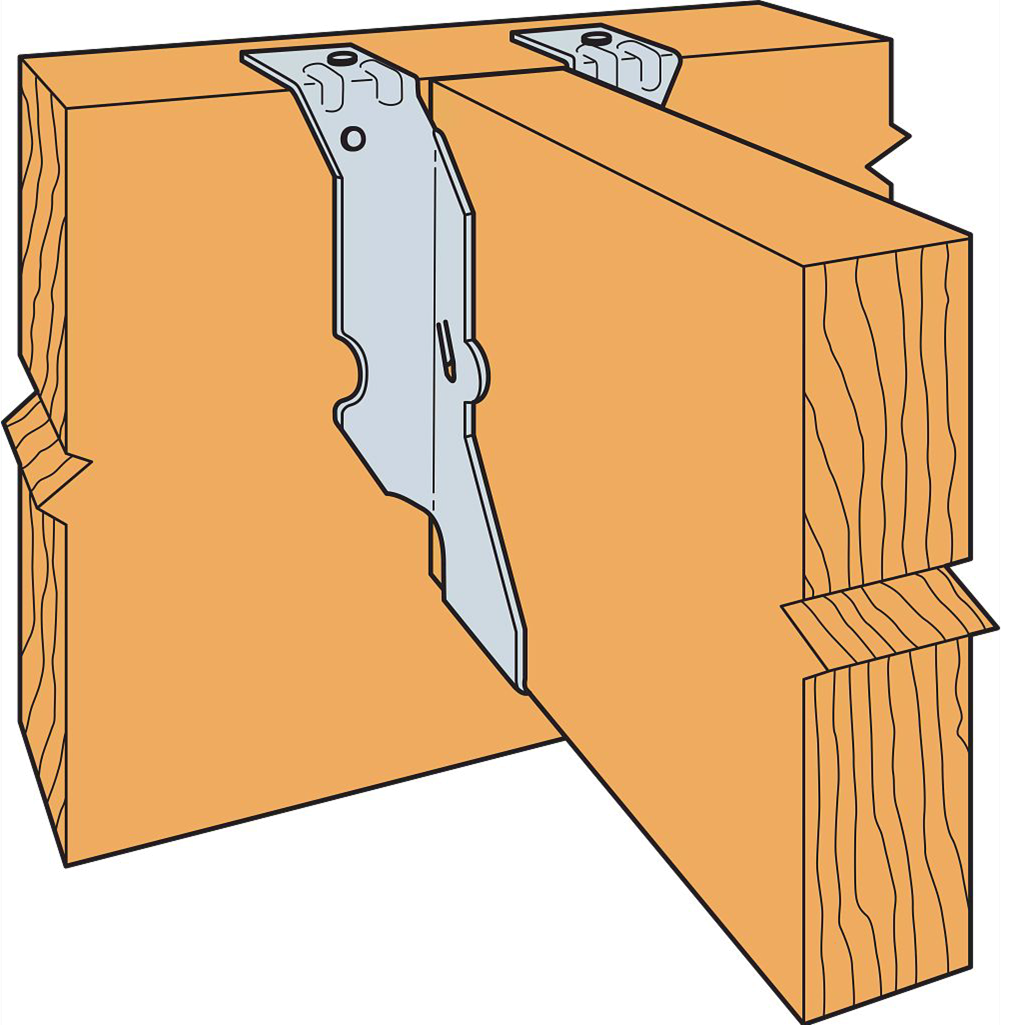

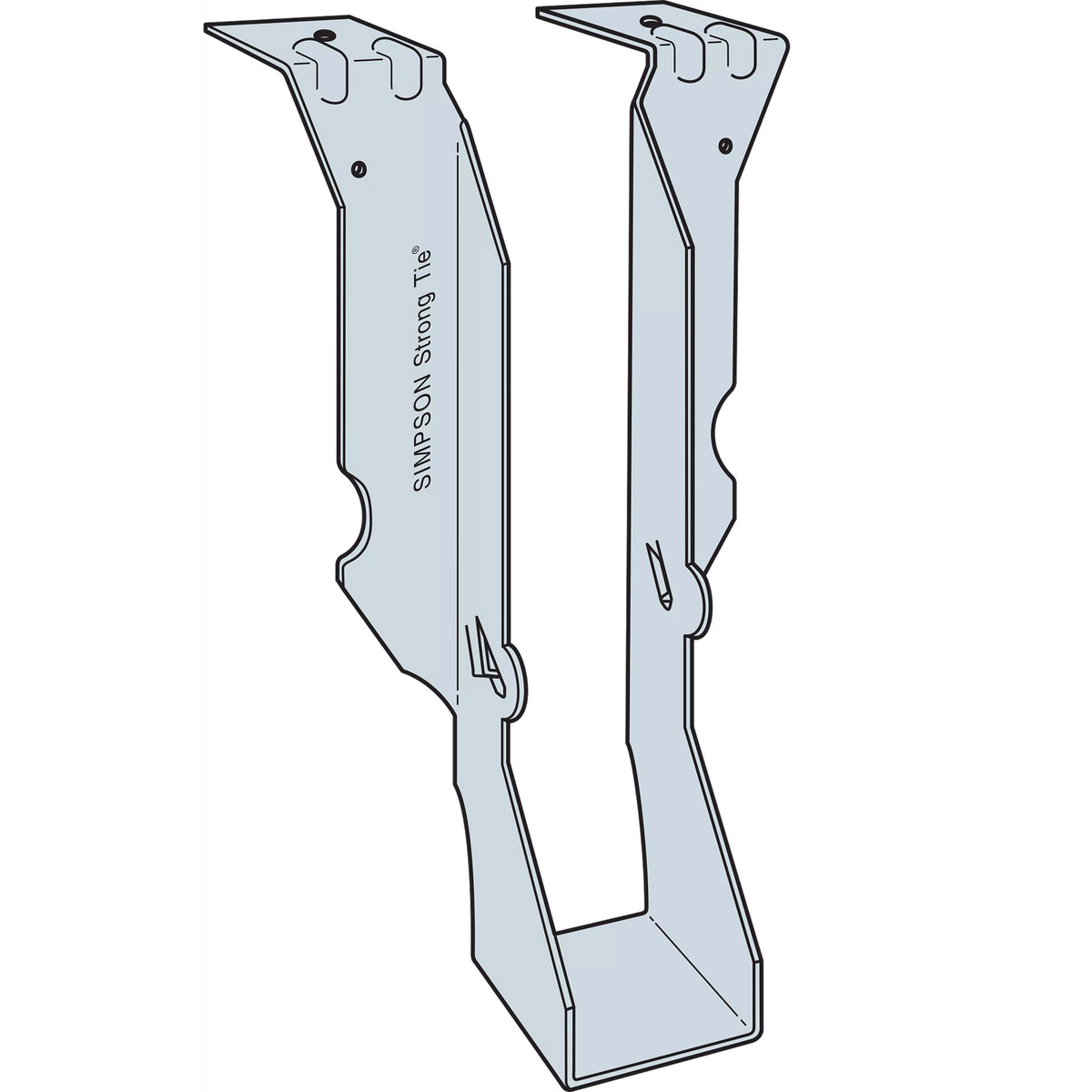

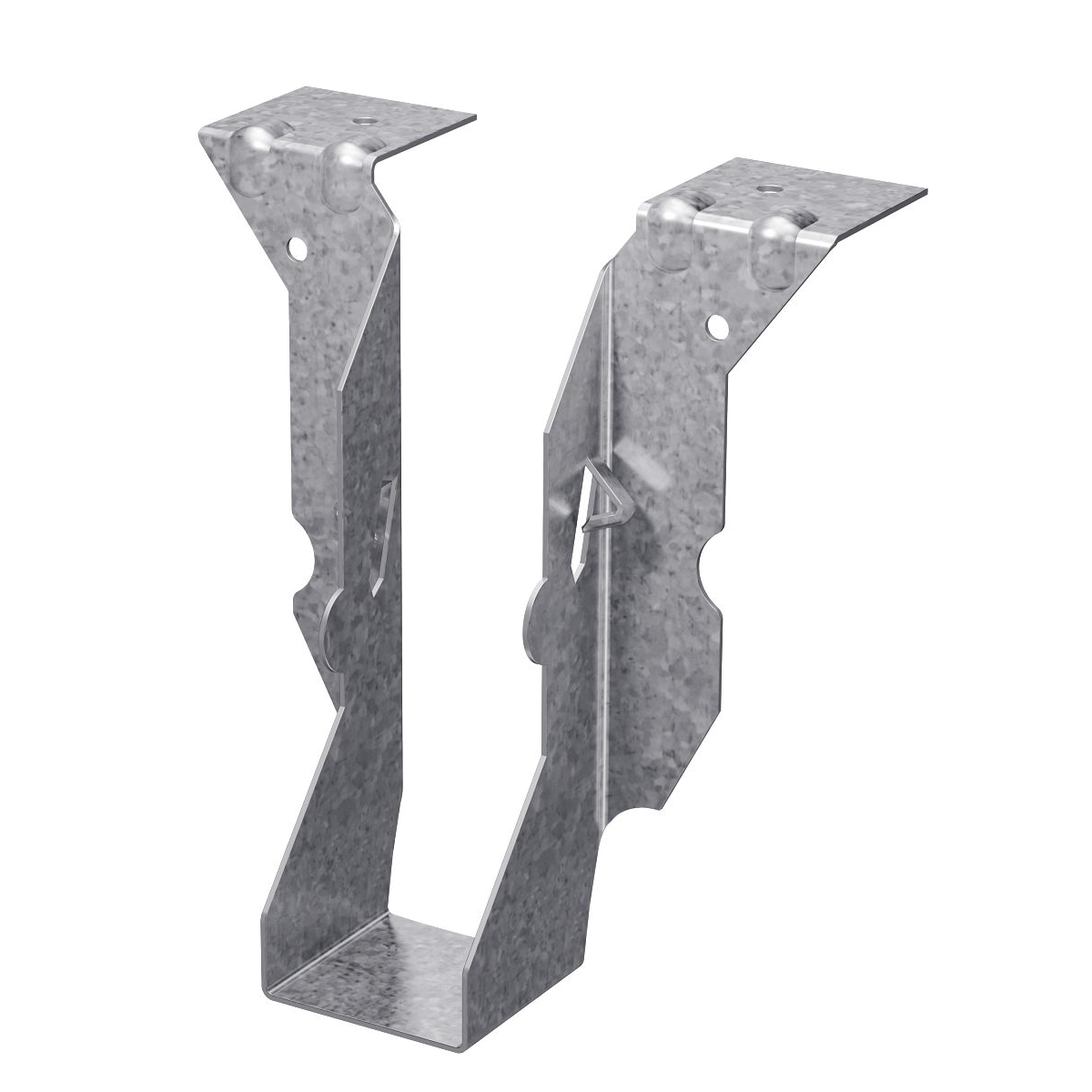

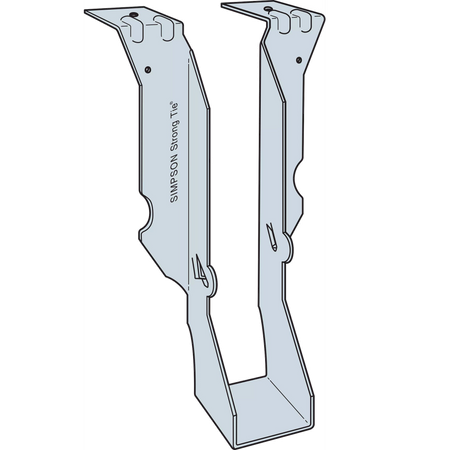

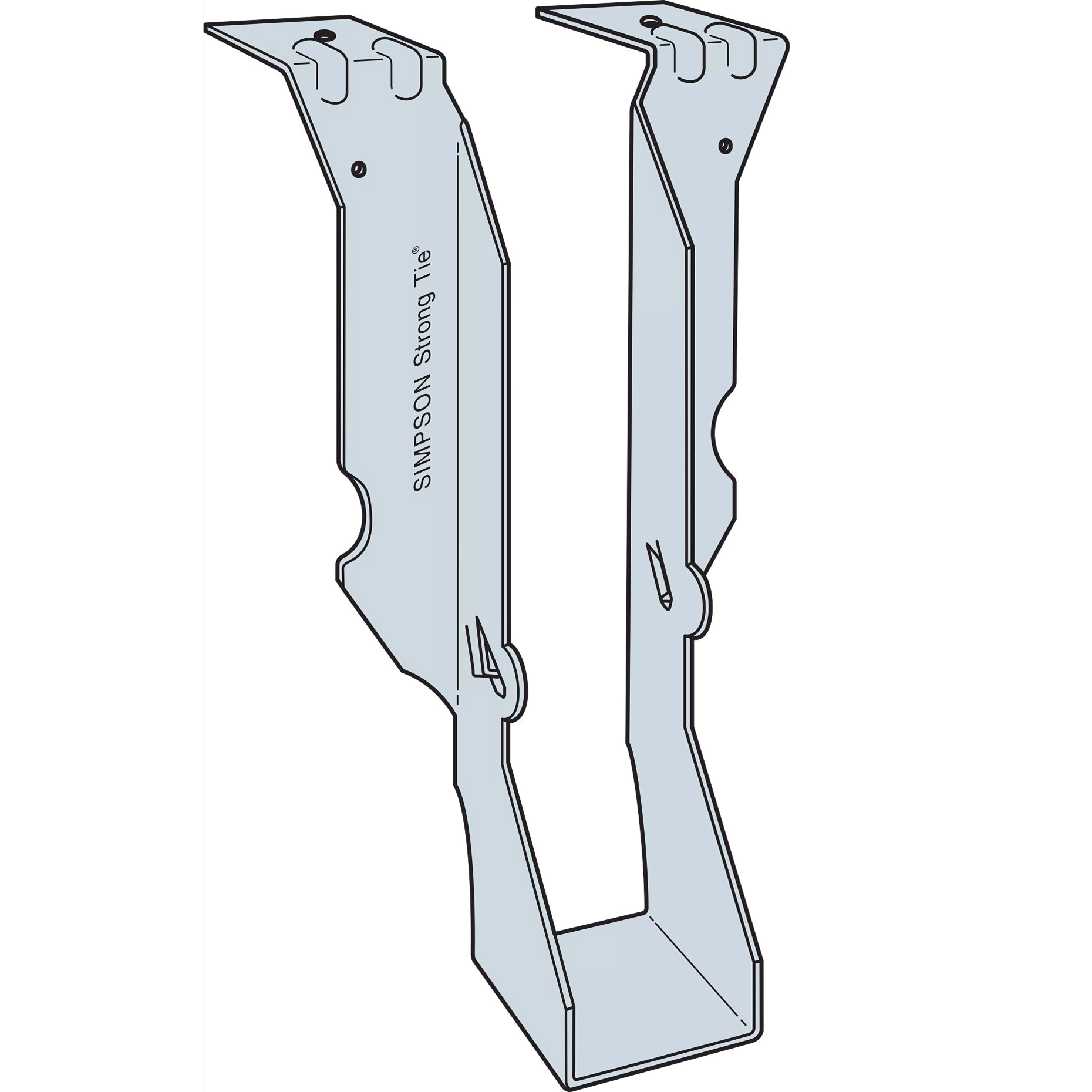

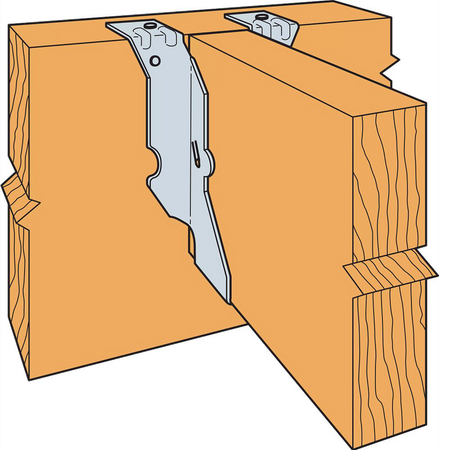

The JB is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light loads. The JB features speed prongs used to temporarily position and secure the connector for fast and easy installation.
Key Features
- Unique two-level embossment provides added stiffness to the top flange
- Speed prongs enable proper placement of joists
- Galvanized
Material
- 18 gauge
1. Uplift loads have been increased for earthquake or wind loading with no further increase allowed. Reduce where other loads govern.
2. Uplift loads are based on DF/SP lumber. For SPF/HF, use 0.86 x DF/SP uplift load.
3. Uplift loads are based on DF/SP. For SPF/HF, use 0.86 x DF/SP Uplift Load for products requiring nails and 0.72 x DF/SP Uplift Load for products requiring screws.
4. Where noted for single-ply joist hangers, use (6) 0.148" x 1 1/2" nails.
5. Loads may not be increased for the duration of the load.
6. Fasteners: Nail dimensions in the table are listed by diameter and length.
