Starborn Structural H19 Hex-Head Screws
Regular price
$26.46 CAD
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.
STRUCTURAL H19 Truss to Top Plate / Multipurpose
APPLICATION
Starborn® Structural H23 screws are specifically designed to attach deck ledgers to rim joists. They are fully tested and code compliant alternatives to traditional lag screws and through-bolts, with no pre-drilling required. Structural H23 screws feature a hex washer head for maximum drivability, a unique Tri-Forge® point for reduced driving torque, and a high-adhesion exterior grade coating. Complete fastening instructions are available in the Deck Ledger to Rim Joist Technical Guide. Structural H23 screws can also be used in a variety of other code compliant wood-to-wood connections.
FEATURES
- IRC/IBC code compliant
- No pre-drilling
- Engineered to match 3/8″ lag screw strength

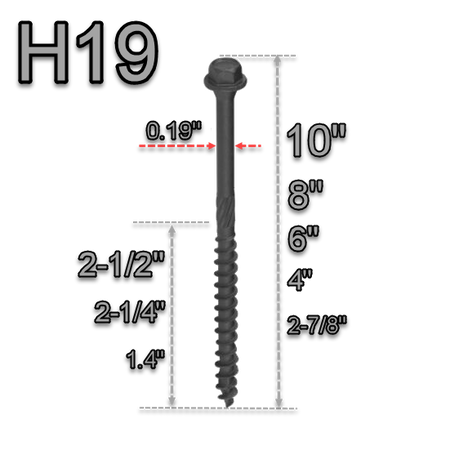

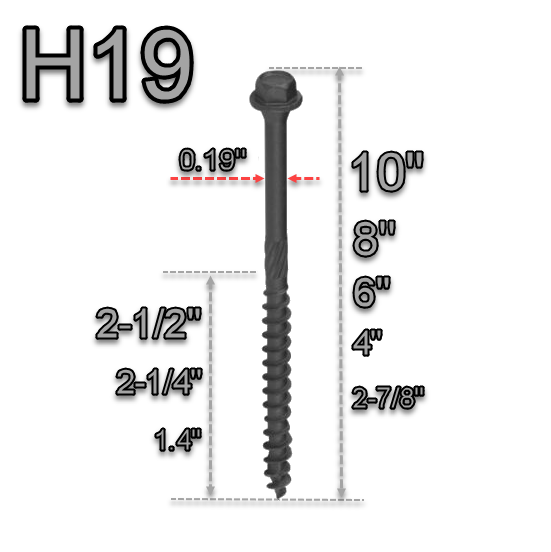

Screw Ø = 0.19 - 0.19″ shank diameter
- 5/16″ hex head for maximum drivability
- Tri-Forge® Point provides a fast star, minimal splitting, and reduced driving torque.
- Speed-Knurl™ reduces friction on the unthreaded shank for faster installation.
- Black exterior grade coating has high-adhesion and is an ACQ-approved alternative to hot-dip galvanized coatings.

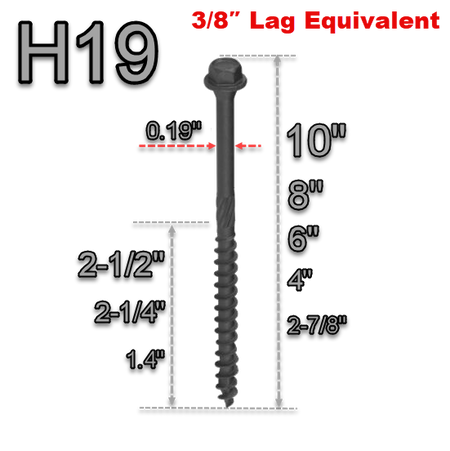

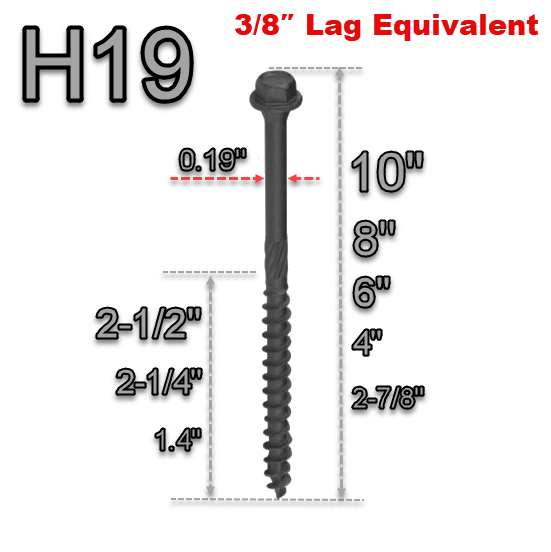

Engineered to match 3/8″ lag screw strength
Screw Ø = 0.19
CODE COMPLIANCE REPORTS
- Fastener Properties and Design Values (DrJ TER 1703-05)
- Truss or Rafter to Top Plate and Bottom Plate to Rim Board (DrJ TER 1703-02)
